ATA GDO-10V3 TORO Garage Motor/Opener

ATA GDO-10V3 TORO Garage Motor/Opener

$945.00
$1,100.00 $945.00
Shedify Price Sold out
Shipping calculated at checkout.

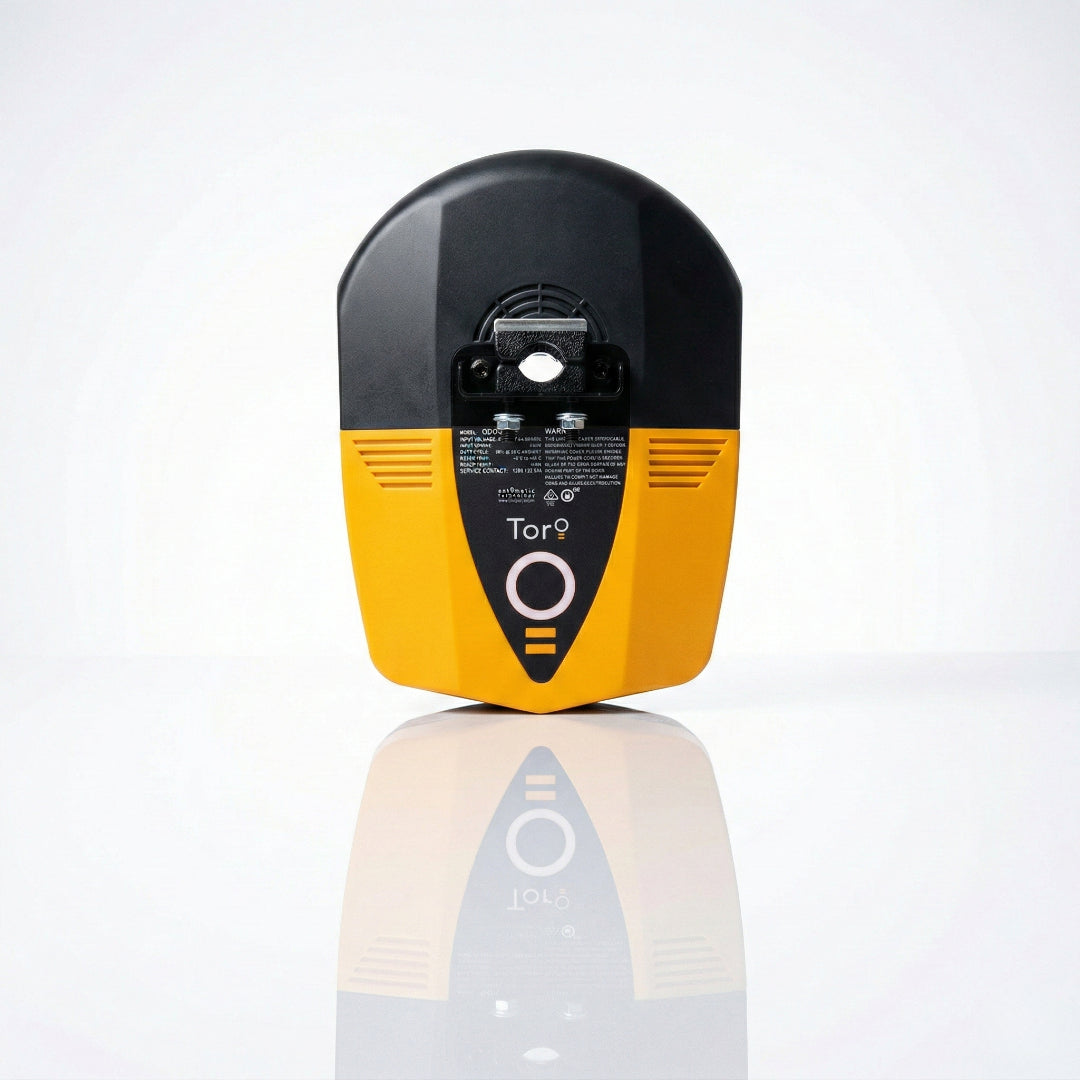

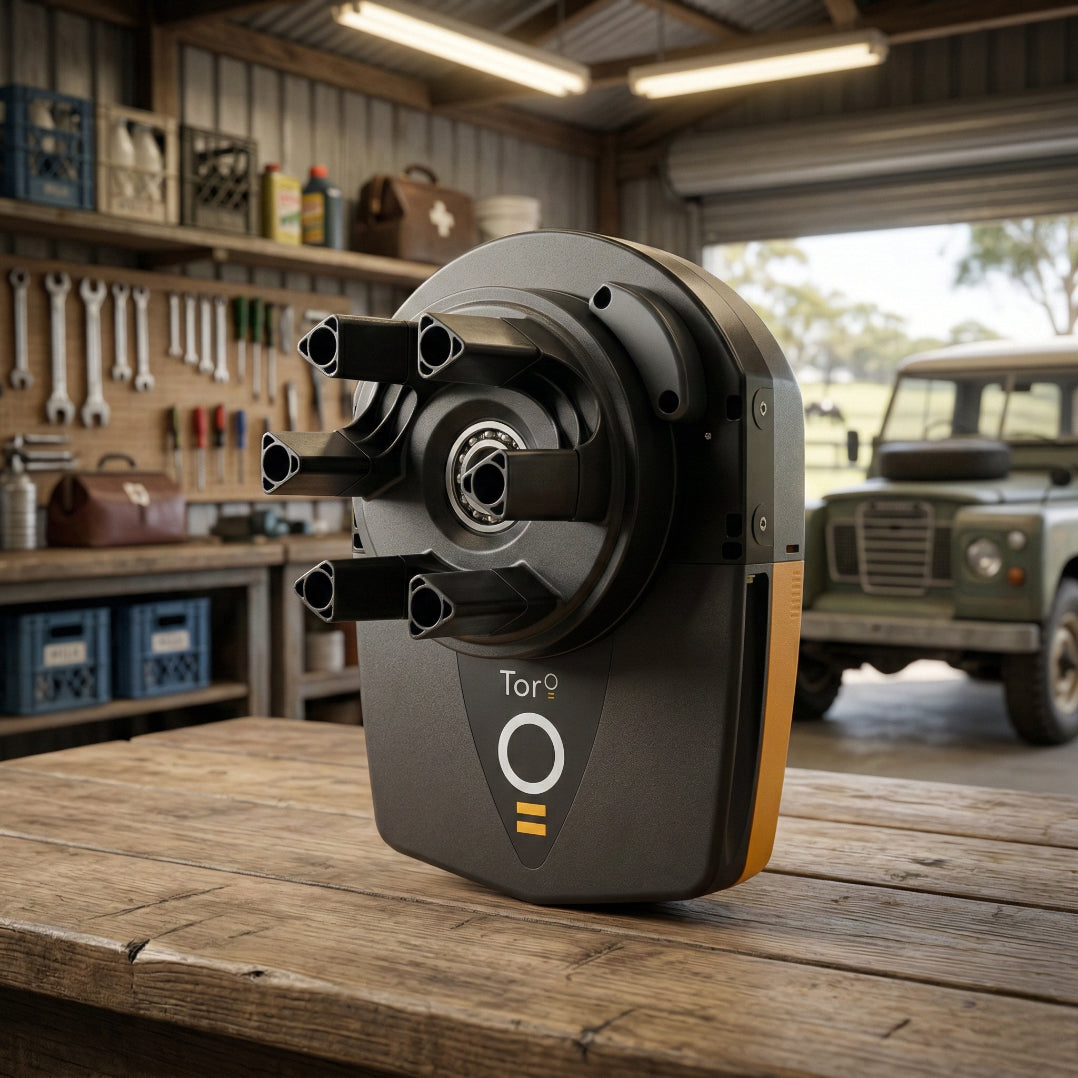

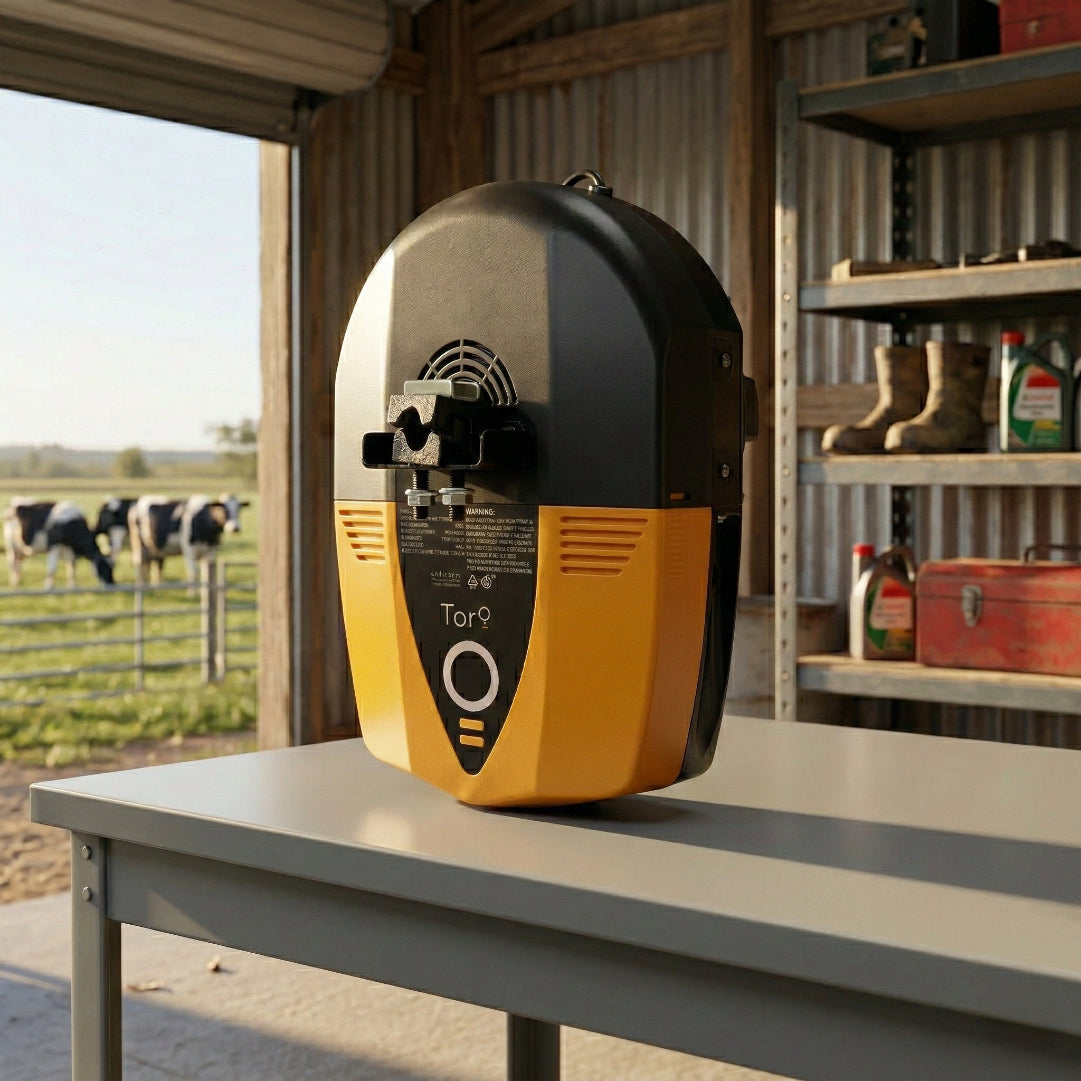

The Toro® offers sophisticated commercial roller door opening technology and superior pulling power. With built-in Battery Back-up and a wall-mounted control panel you can program a variety of operating modes for your security and safety.

A marriage of immense power and sophisticated logic controls, the Toro® can cater for roll-up doors up to 28m2 and high duty cycles. The logic control system, with LCD screen, can manage up to 511 TrioCode Garage Door Remotes, and offers time clock controlled access programs, adjustable speed and obstruction settings. A full complement of controlling inputs and outputs are standard, including compatibility with up to three Wireless Safety Beams systems simultaneously. Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings.

Features:

  • Secure & Reliable Transmitters
  • Battery Back Up
  • Powerful Motor
  • Logic Controls with LCD Screen

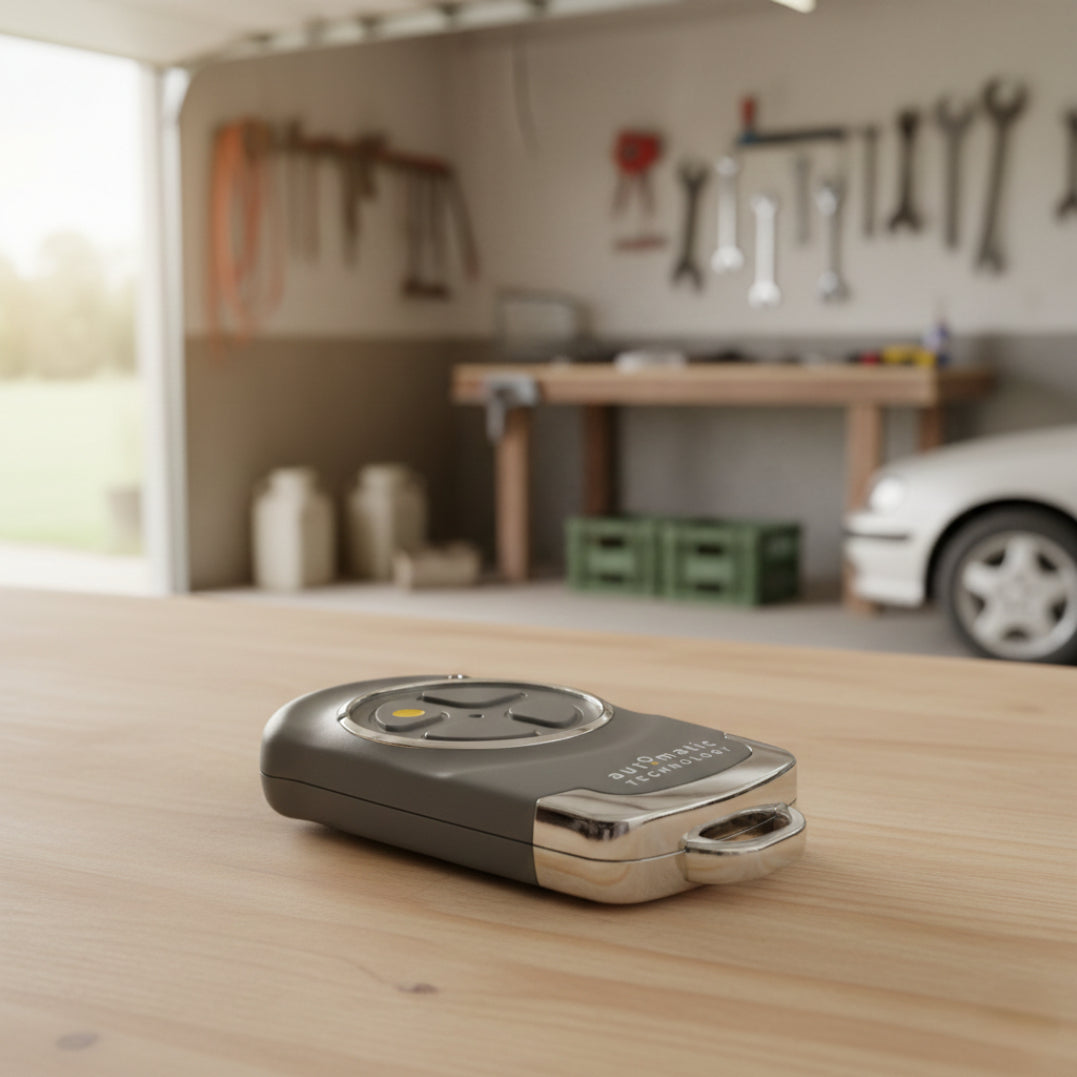

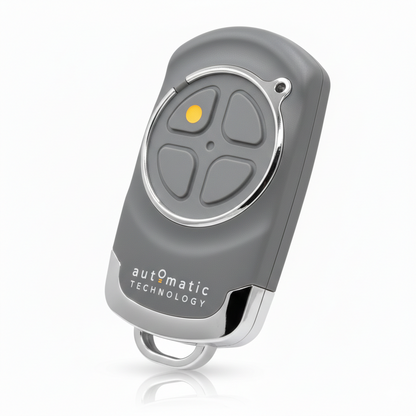

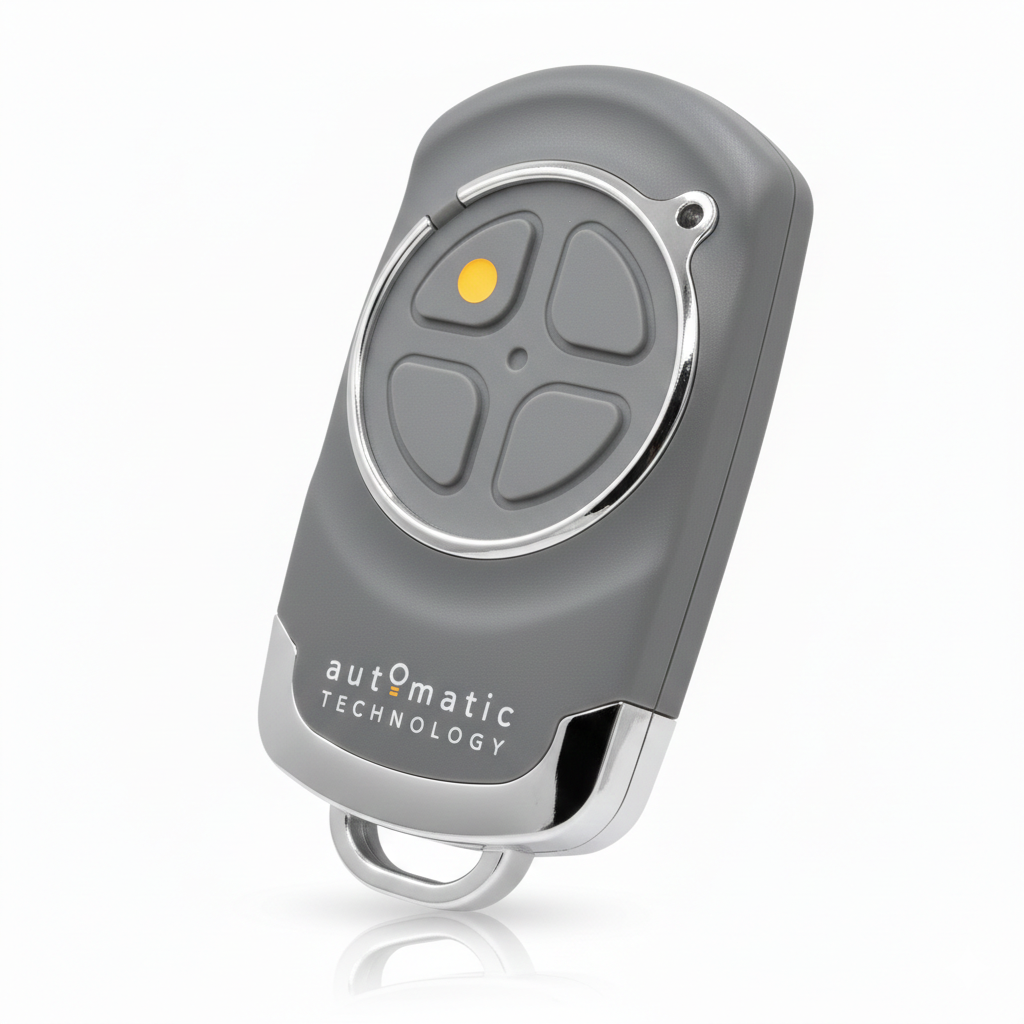

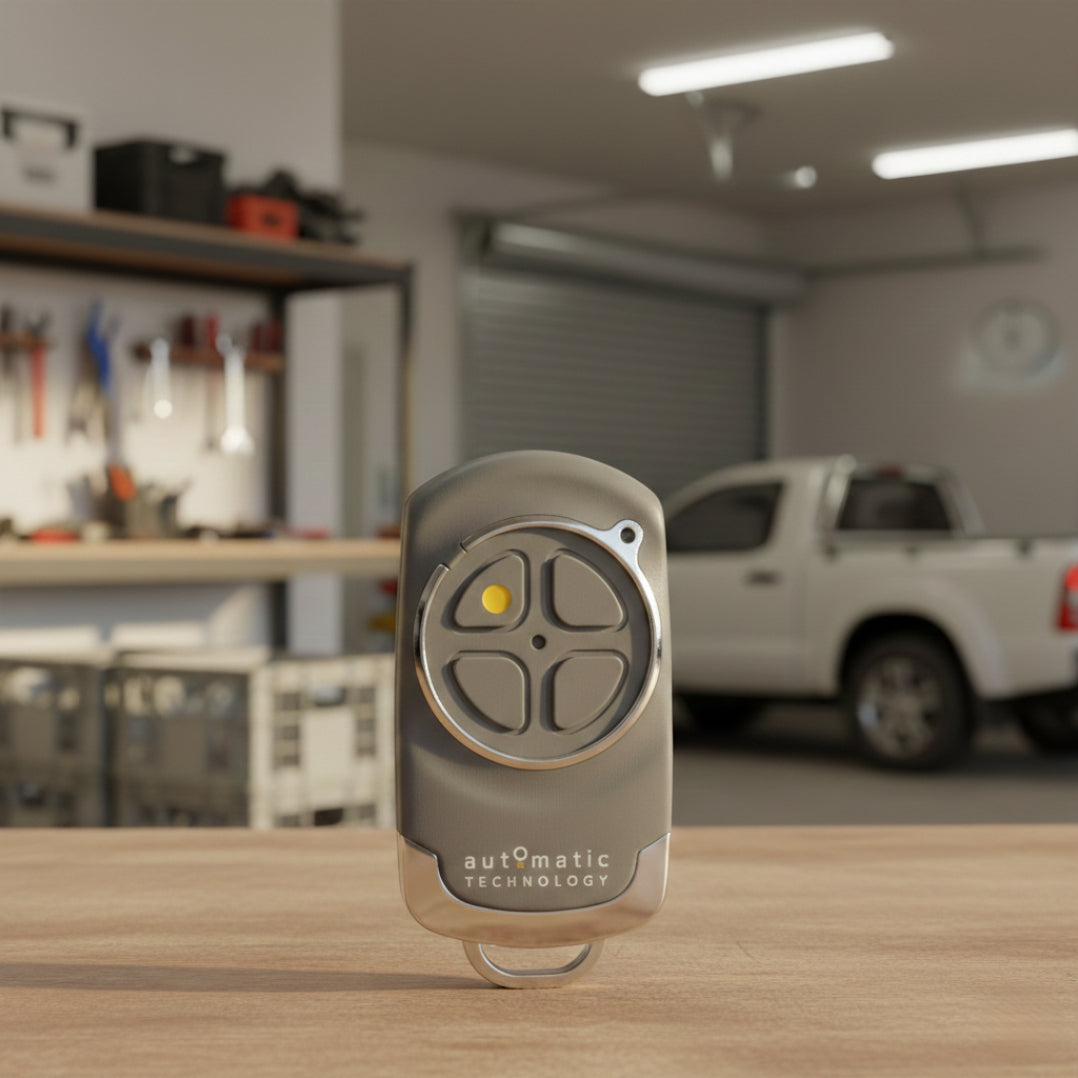

Remotes Included: 2 (PTX-5v2)

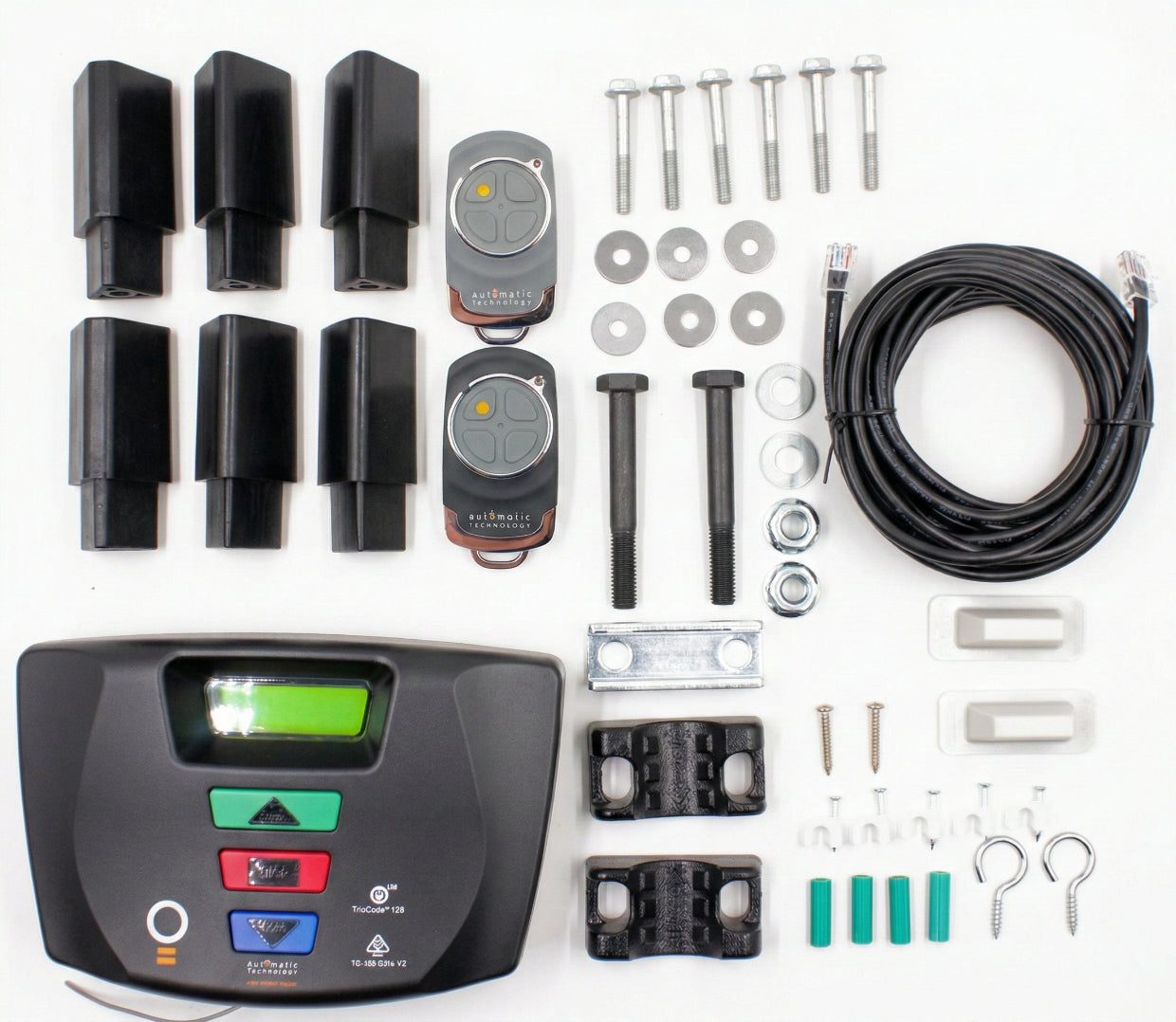

Included:

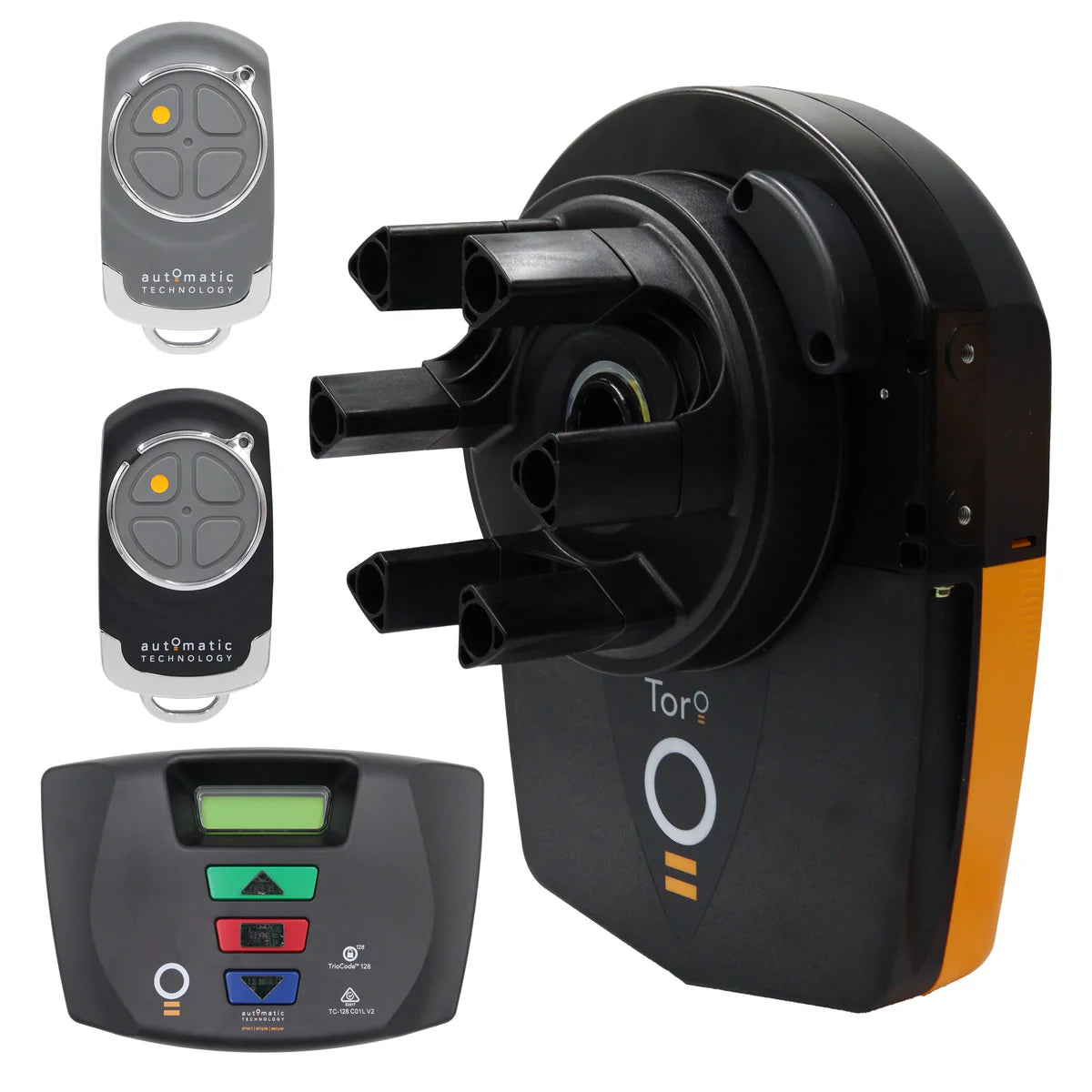

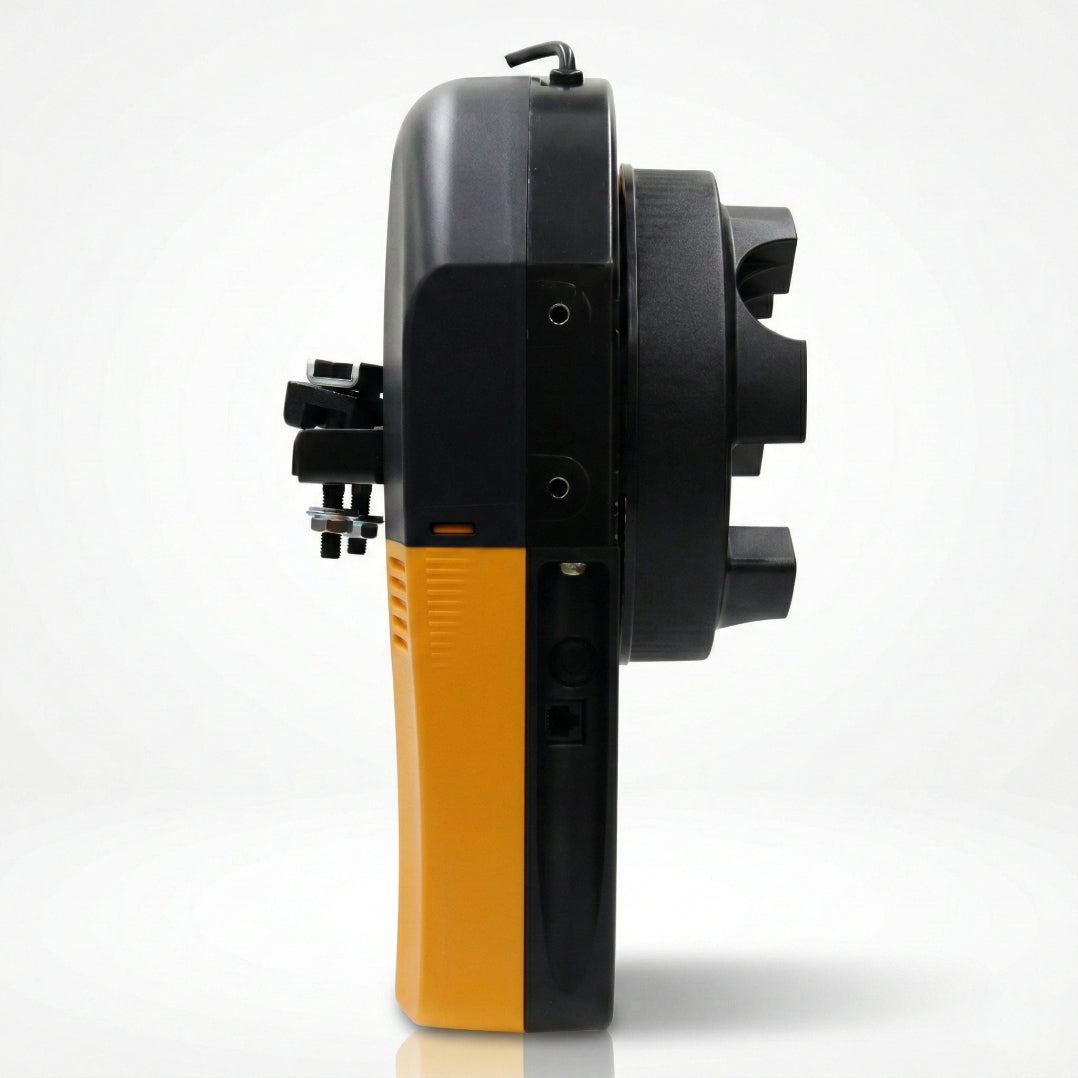

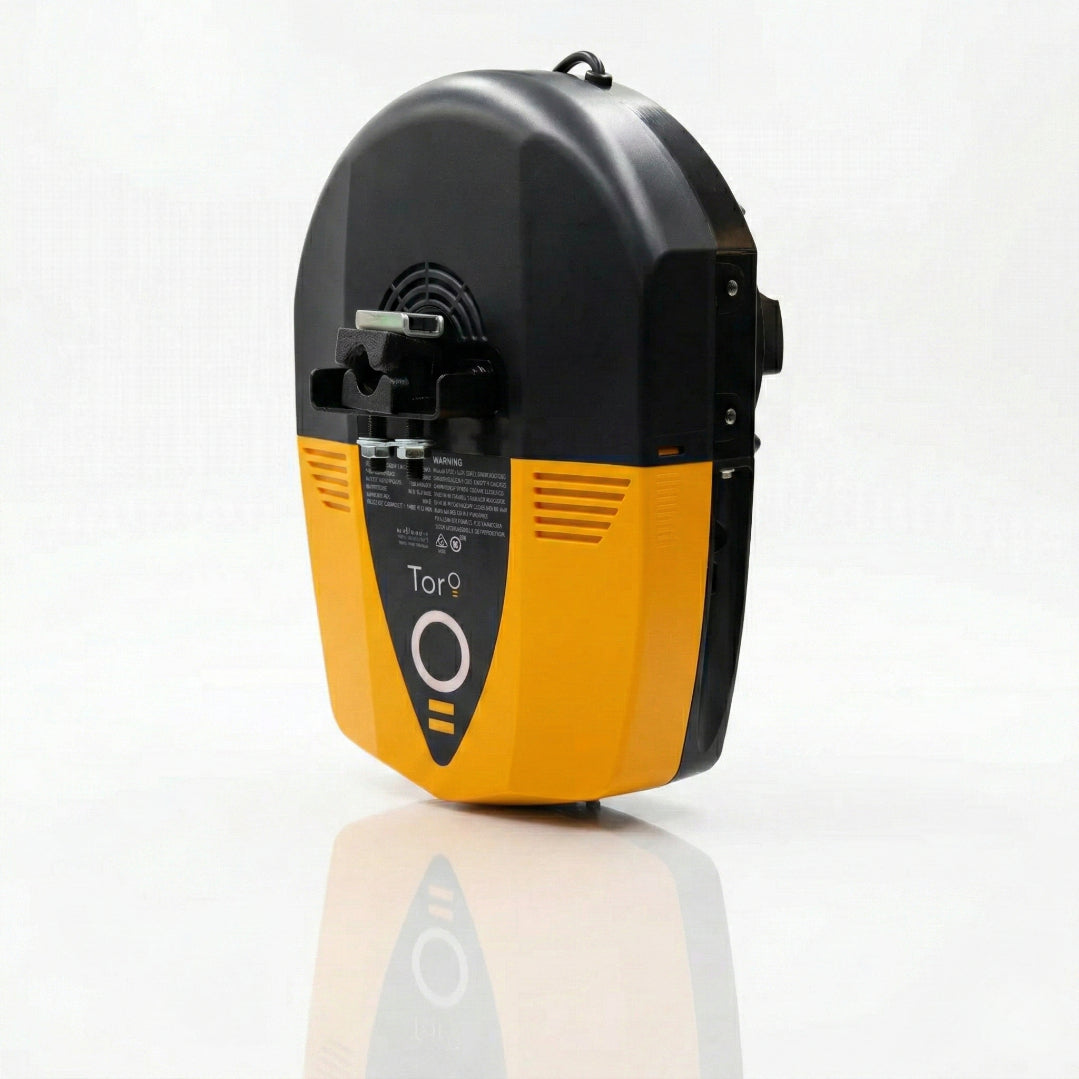

1 x GDO-10V3 Toro Motor w/ Battery Back Up
2 x PTX-5V2 Remotes
1 x LCD Control Panel
1 x Communication Cable
2 x Locking Bar Cover
6 x Fork Extension
5 x Cable Clips
2 x Screw Eye
2 x Self Tapping Screw 6 X 25
4 x Plastic Wall Plug 6.9 x 25
1 x Installation Instructions
2 Years Manufacturers Warranty*

*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual

Motor Type  24V DC
Short term peak force 1000N
Rated Duty Cycle 100%
Standby Power 2.8W
Motor Power 150W
Max Door Weight kg 270KG#
Max Door * Size m2 28m2
Wind-locked door** m2 22m2
Minimum Side room mm 140mm (right hand side) / 127mm (left hand side)
Left hand or right hand side installation Yes
Maximum Door Opening 5100mm H / 5500mm W
Warranty 2 years
Wireless Safety Beam Yes (optional)
Courtesy Light No
Battery Back up Yes (included)
Safety Beam Compatibility Yes (optional)
Remotes Included 2 x PTX-5v2
Wall Button Incorporated in LCD wall unit
Transmitter Capacity 511
Protocol TrioCode 128  and Tritran +
View full details

Why We Love the

Toro® GDO-10V3

We’ve spent 20 years in the shed game, and we’ve seen plenty of motors struggle with large-span roller doors. The Toro GDO-10V3 is our "go-to" for anything heavy-duty.

What we love most is that it bridges the gap between a standard domestic opener and a full-blown industrial shutter motor. It’s got the "grunt" (1000N of pulling force) to handle massive 28 m² doors without breaking a sweat, but it's refined enough to offer soft-start and soft-stop cycles. It's essentially a bulletproof commercial workhorse in a compact, easy-to-install package. If you’ve got a large shed or a light-commercial workshop, this is the peace of mind you're looking for.

Features and Benefits

ATA GDO-10V3 TORO Garage Motor/Opener

Commercial Power for Residential Sheds: Specifically designed for large-diameter rollers, ensuring your big doors open smoothly every single time.

Built-in Battery Backup: Don't get locked out (or in) during a QLD storm or a VIC power outage. The integrated battery takes over the second the mains go down.

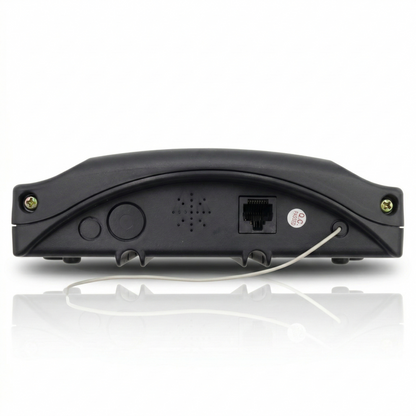

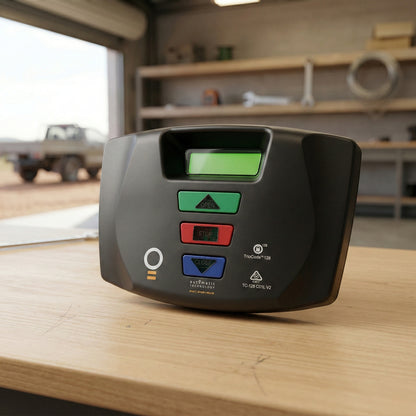

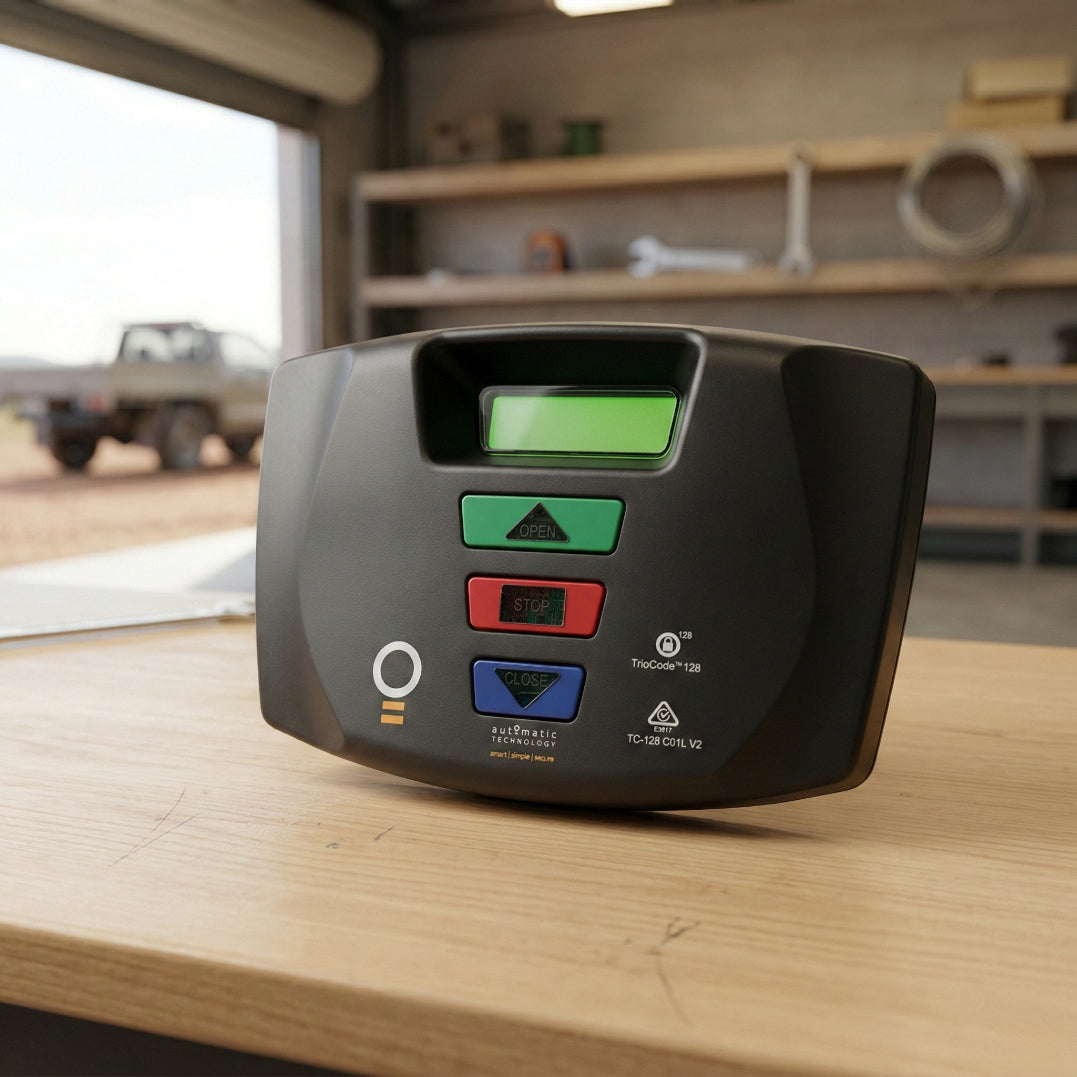

Logic Control Console with LCD: The wall-mounted "brain" tells you exactly what’s happening. No more guessing what those beeps mean—the LCD screen gives you clear status updates and service reminders.

TrioCode™ 128 Security: In 2026, security is paramount. This uses 128-bit encryption (the same as your bank) so no one is "grabbing" your remote code to get into your gear.

Quiet & Controlled: Despite its power, the DC motor and "Soft Start/Stop" technology mean you won't wake the neighbors (or the dog) when you head out early.

Massive Remote Capacity: Planning a storage complex? The GDO-10V3 can manage up to 511 individual remotes, making it the king of multi-user access.

ATA GDO-10V3 TORO Garage Motor/Opener

Specifications

Peak Pulling Force: 1000N

Max Door Size: 28 m² (approx. 6m wide x 4.7m high)

Motor Type: 24V DC Permanent Magnet

Duty Cycle: Rated for 25 operations per hour (Heavy-duty/Light-commercial)

Side Room Requirement: Minimum 140mm

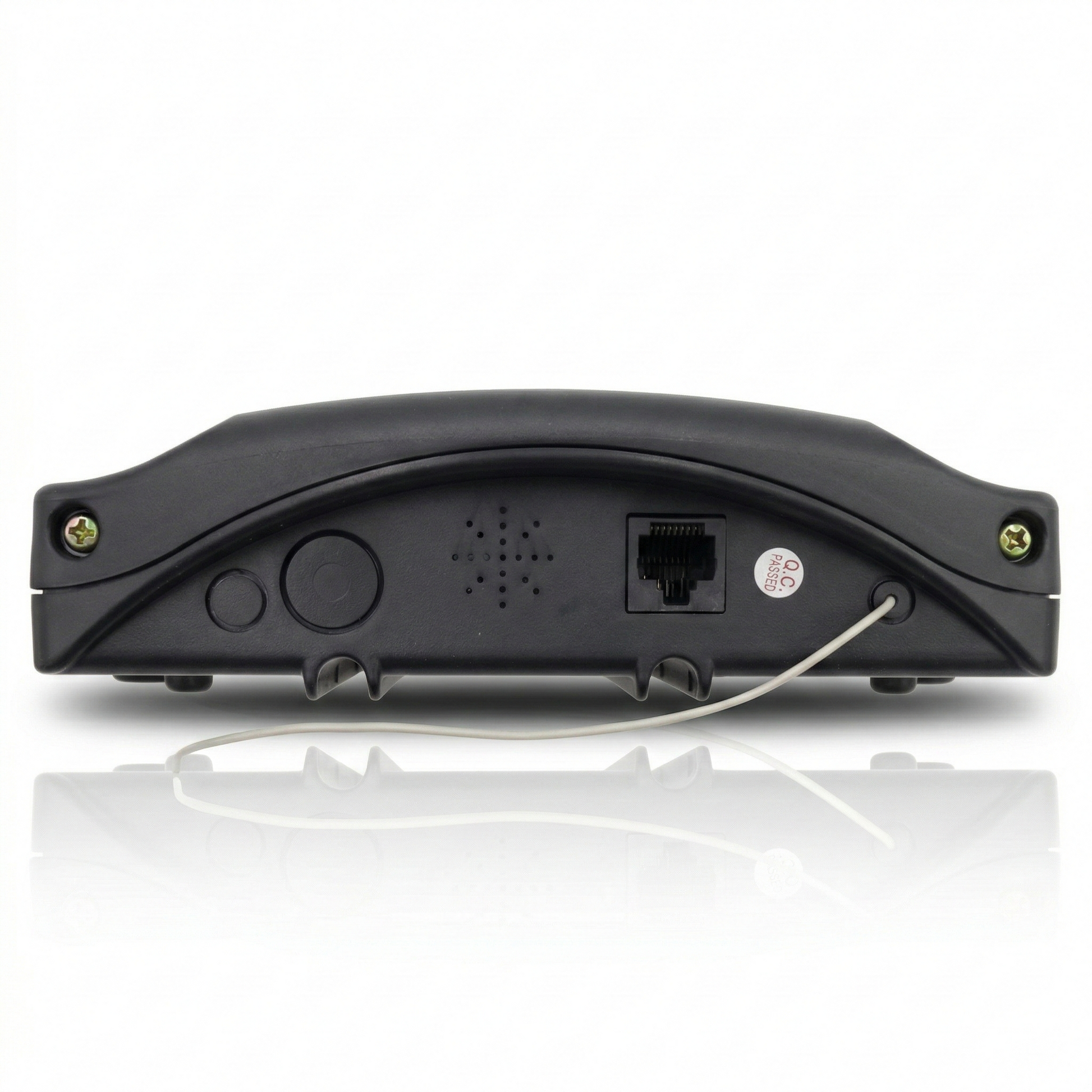

Connectivity: Includes wired Logic Control Console (via CAT-5)

Encryption: TrioCode™ 128-bit Transmission

Warranty: 7-year / 20,000 cycle manufacturer warranty (when professionally serviced)

What Customers Are Saying

  • ★★★★★

    "Solid unit. Well-constructed unit, easy to follow installation and programming instructions. Perfect for the larger doors I needed to automate."
    — Jaypee57

  • ★★★★★

    "The ATA Toro GDO-10v3 has been an automation staple for a reason. As a professional, I appreciate the wired wall console and the LCD screen—it makes managing access for sites with multiple users (up to 511 remotes) incredibly simple. It's the most reliable option for high-duty cycle doors."
    — Herbert

  • ★★★★★

    "I was impressed with the build quality and how smoothly it handles the weight of a commercial-sized door. Having the battery backup built-in gives real peace of mind."
    — Matthew P.
