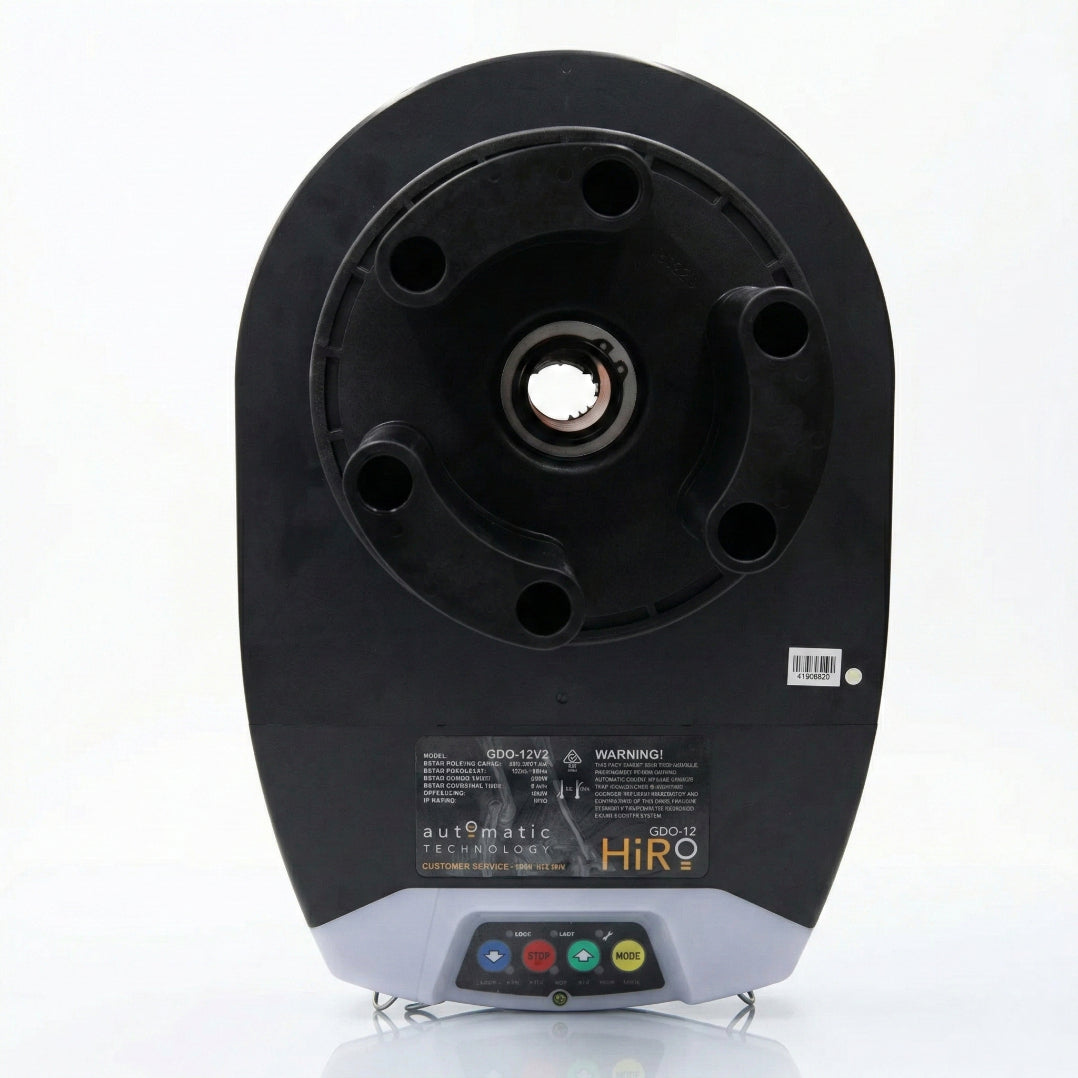

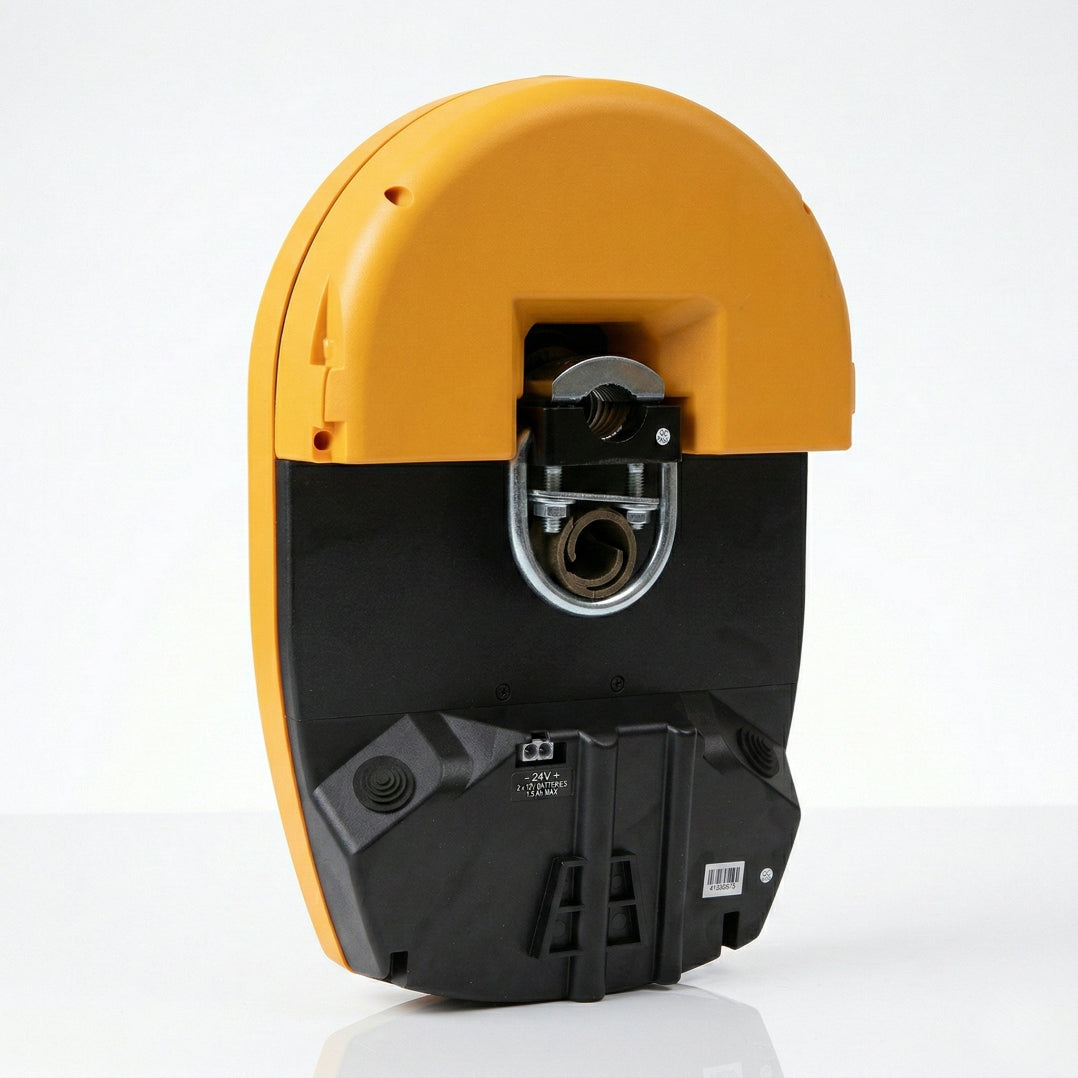

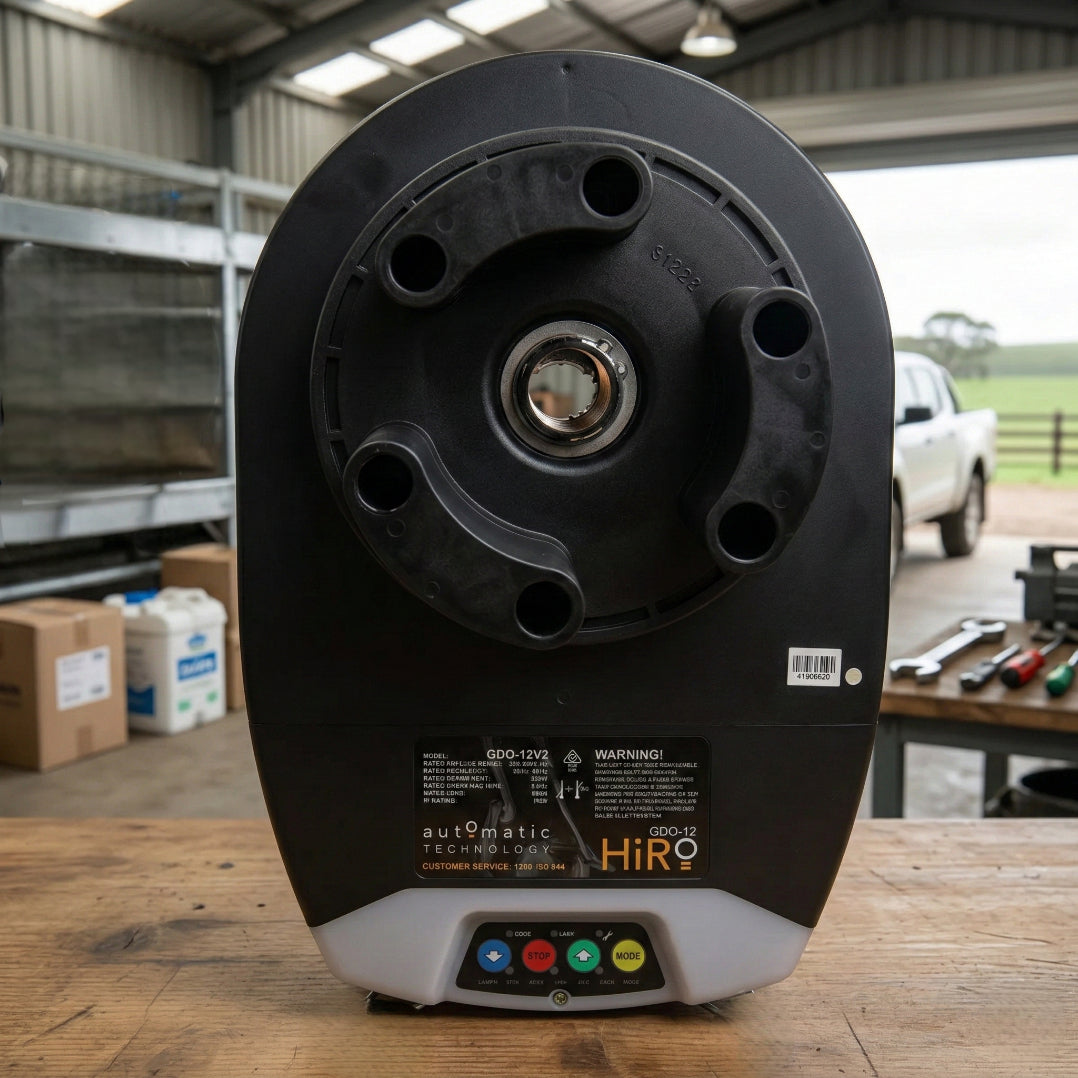

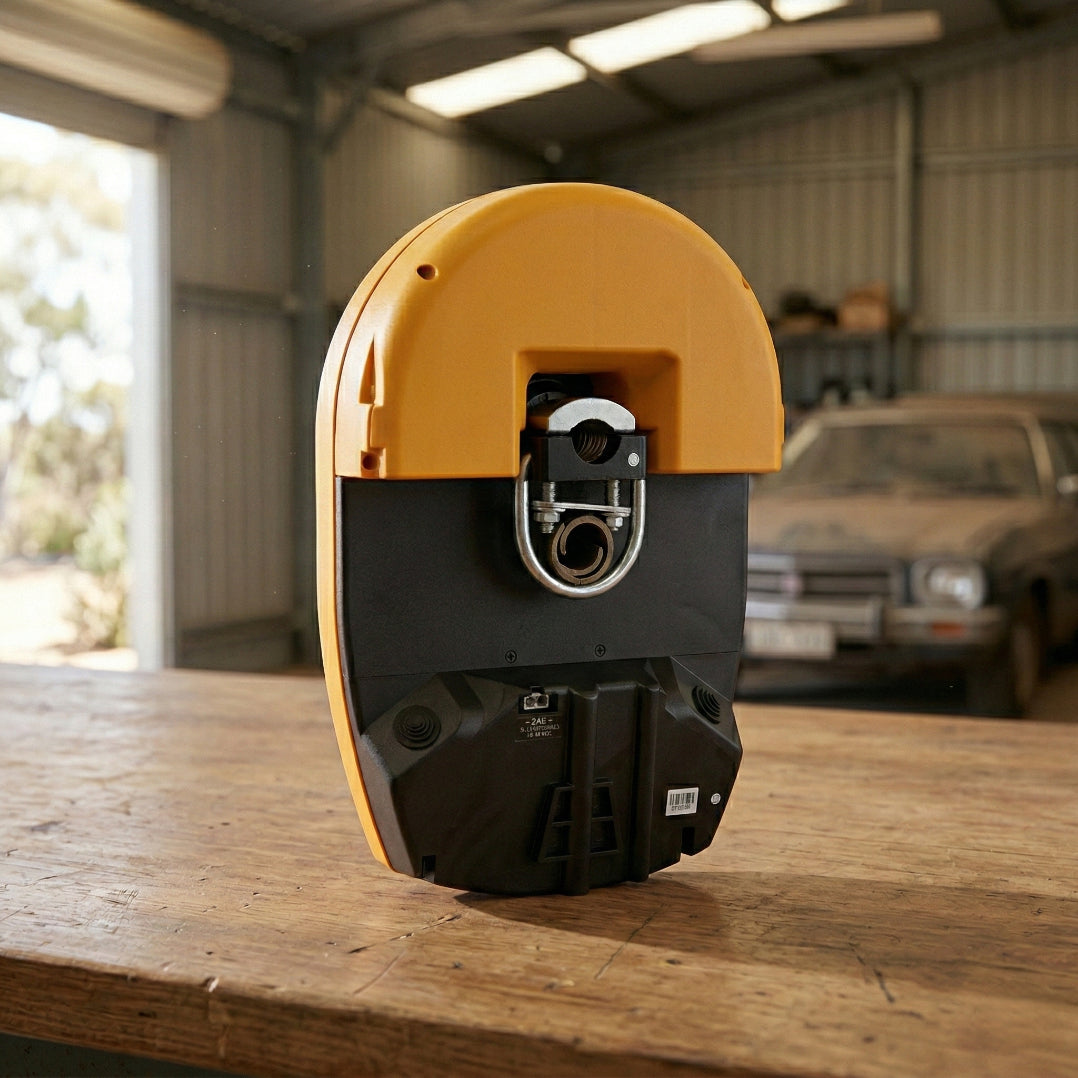

ATA GDO-12v1 HIRO Garage Commercial Roller Motor/Opener

ATA GDO-12v1 HIRO Garage Commercial Roller Motor/Opener

$745.00
$820.00 $745.00
Shedify Price Sold out
Shipping calculated at checkout.

HiroTM is not only the slimmest and most powerful openers in the range, it paves the way in control and connectivity delivering smart phone control in light commercial applications (as an optional upgrade).

If you need to operate a very large roller door or a wind-locked door, or have a site with low side room requirement, HiroTM is the ideal choice.

Features:

  • 1400 Short term peak force to reliably operate large doors up to 28m2*, wind-locked + doors up to 22m2**
  • Slim fit design (35mm only from the edge of the curtain to the edge of the bracket)
  • Variable opening speed
  • Smart phone compatible
  • Optional slide-on or wall mount battery back up

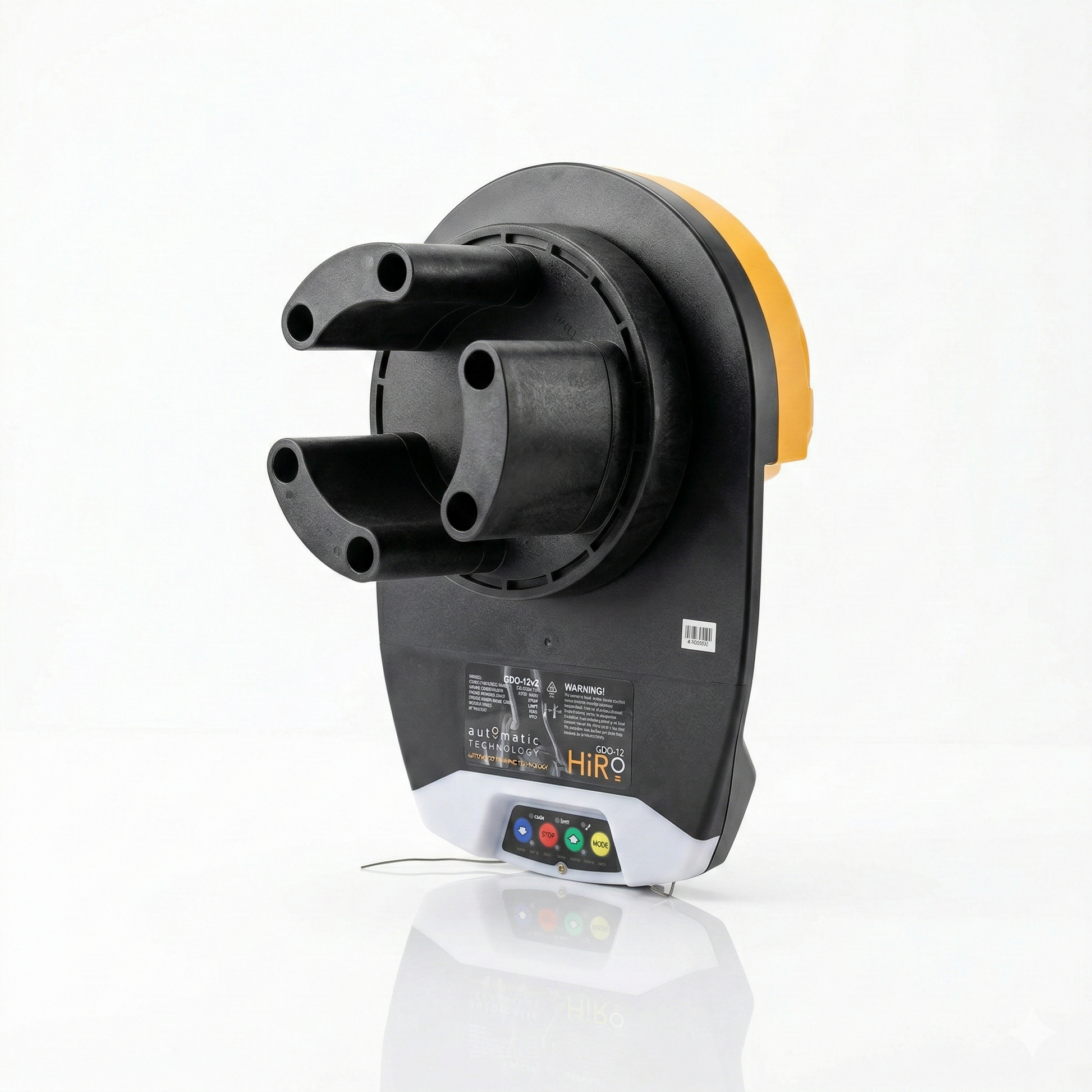

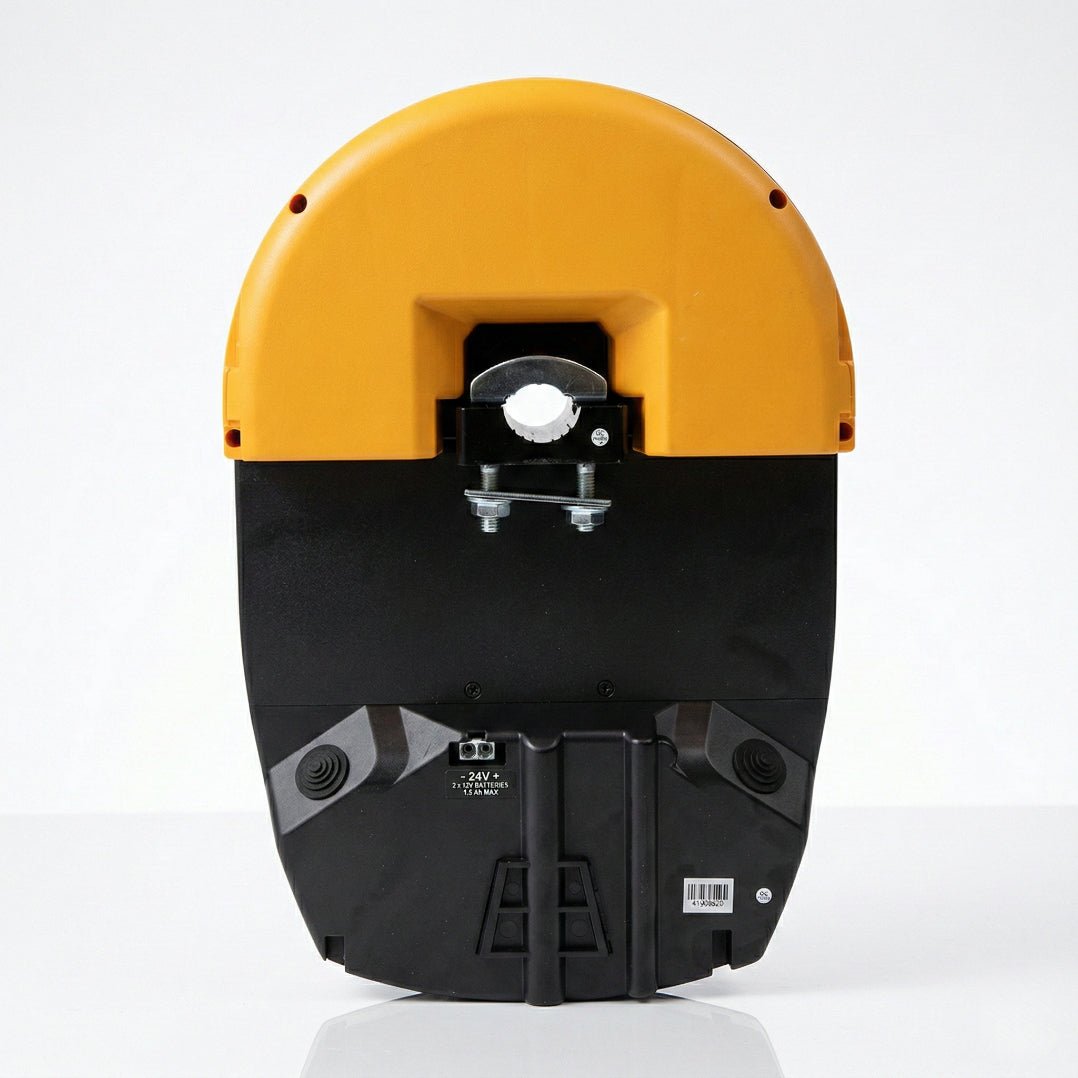

  • Large removable forks suits most drum wheels
  • Courtesy LED light

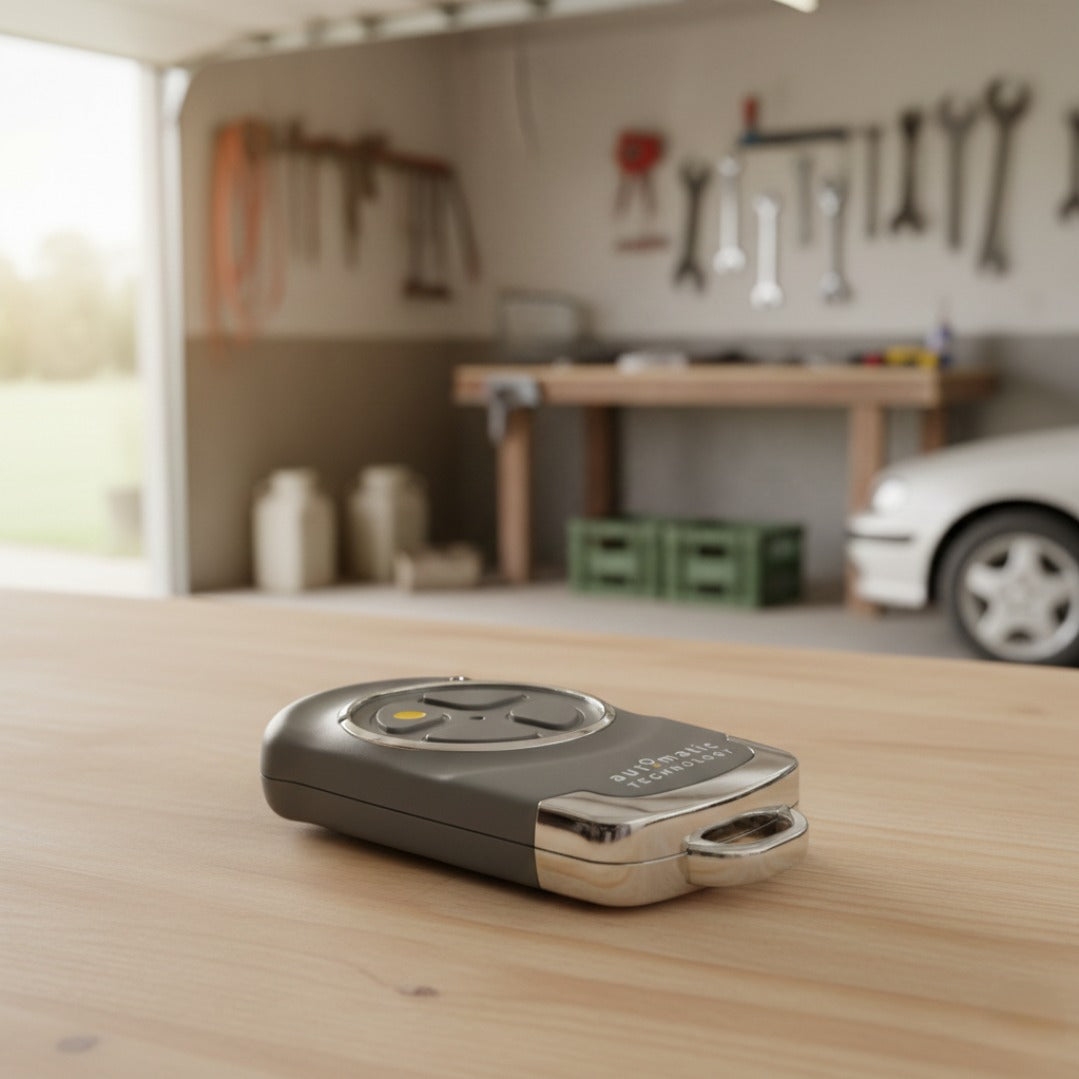

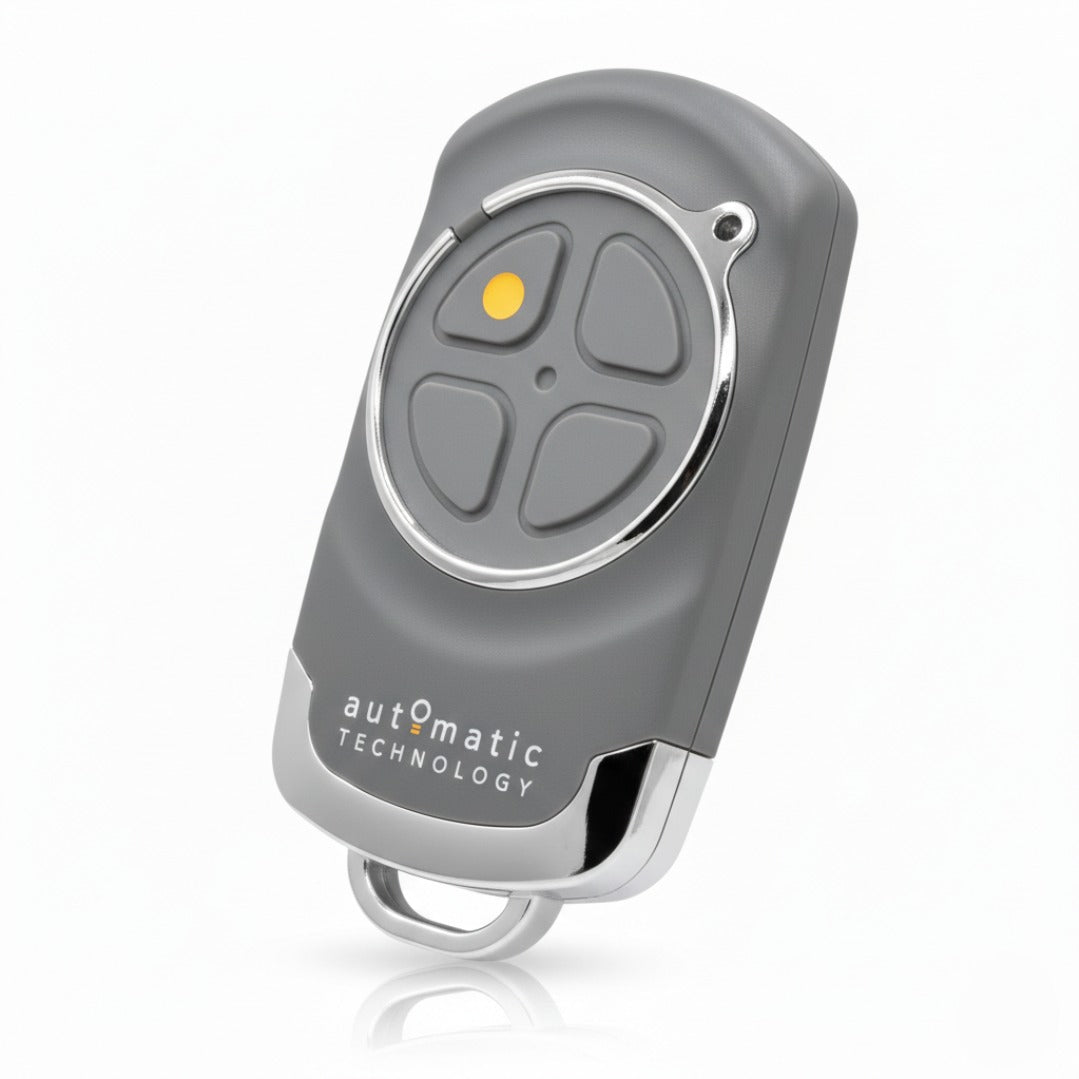

Remotes Included: 2 (PTX-6v1)

Included:

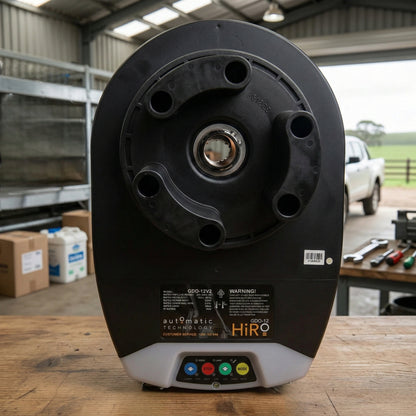

1 x GDO-12V1 Hiro Motor

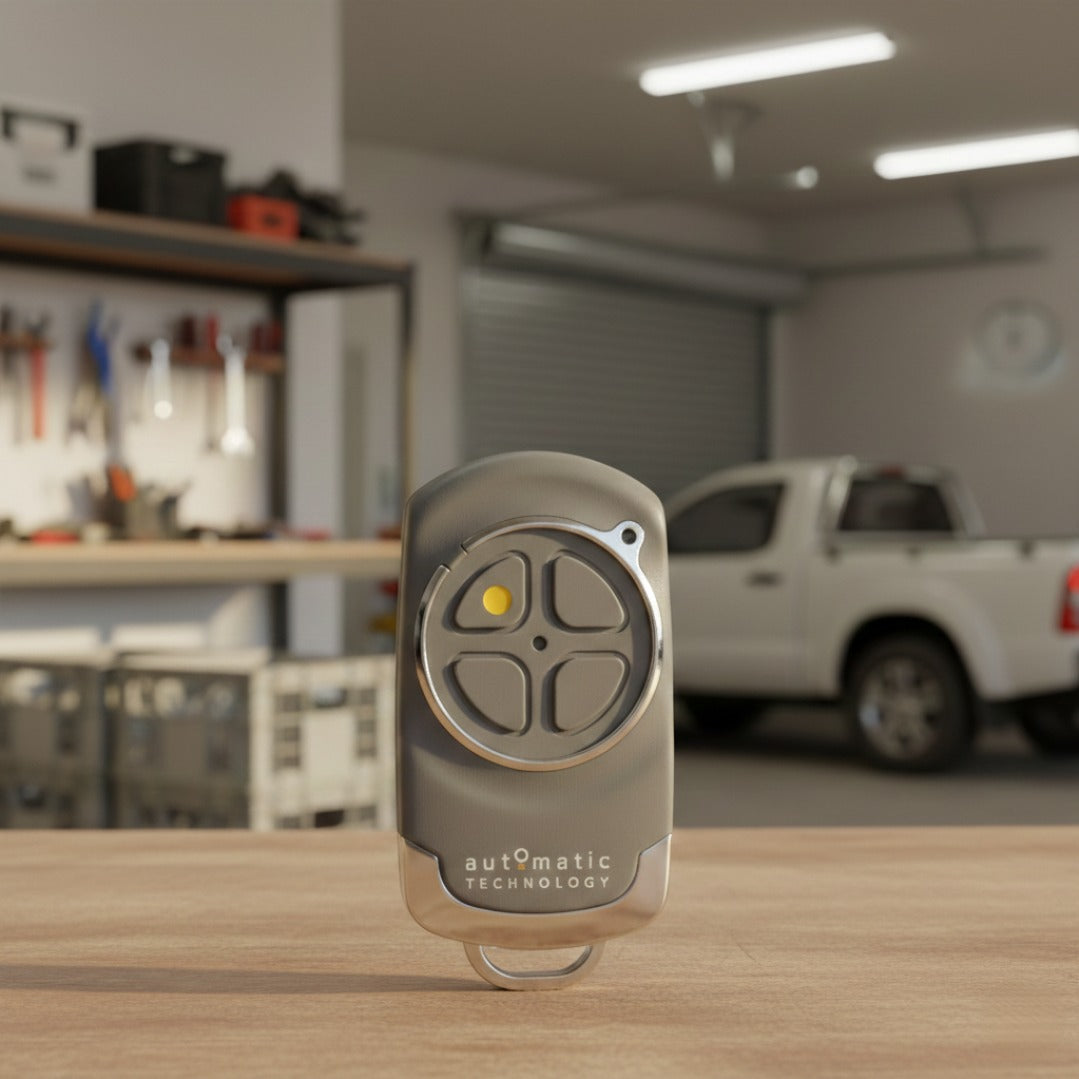

2 x PTX-6V1 Remotes

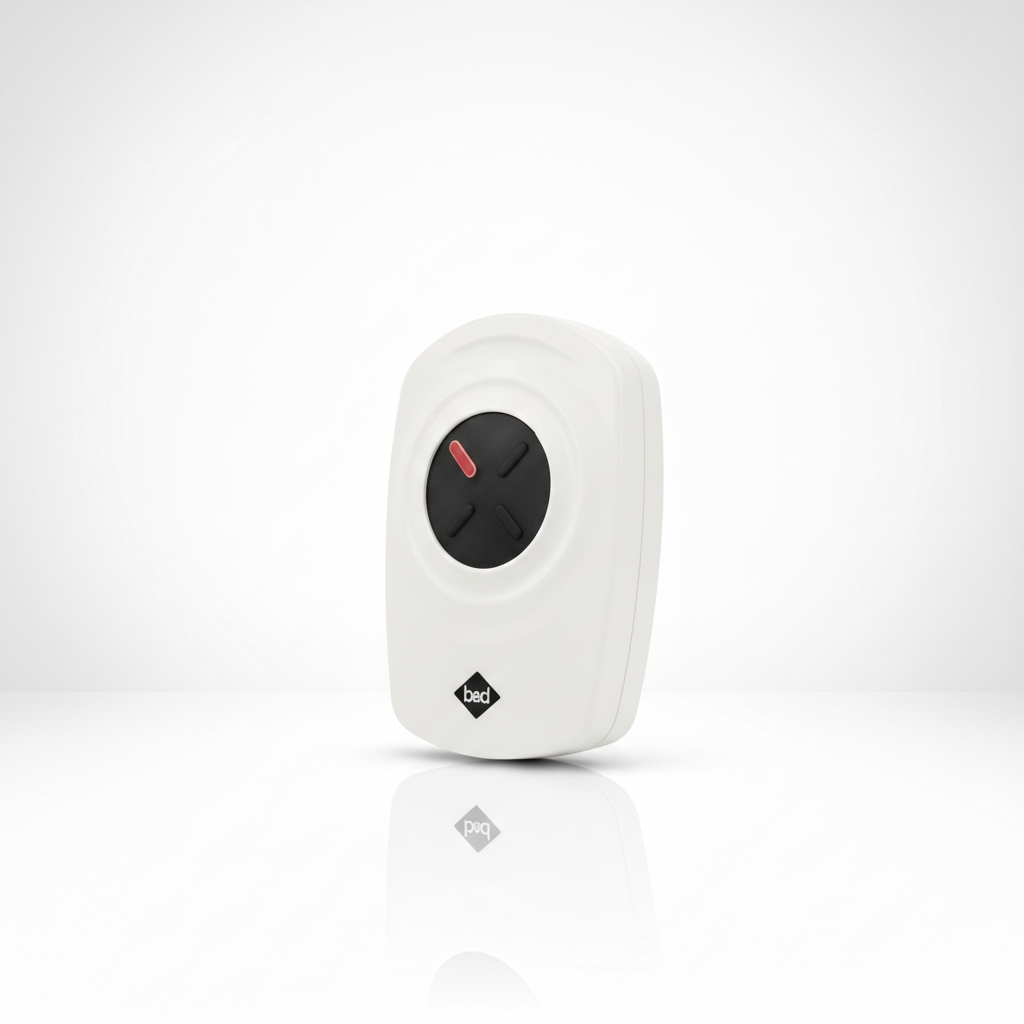

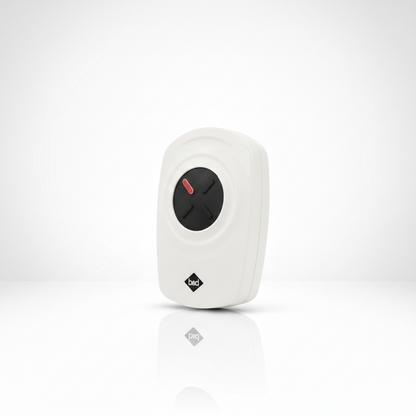

1 x WTX-6V1 Wireless Wall Button
1 x Installation Instructions
1 x Accessories Pack

2 Years Manufacturers Warranty*

*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual



Motor Type 24V DC
Short term peak force
1400N
Drum rotation
6
Standby Power
<1W
Opening speed (mm/sec)
90/102/118
Max Door Weight kg
270#
Max Door * Size m2
28

Wind-locked door** m2
22
Minimum Side room mm
35
Left hand or right hand side installation
Yes
Removable Fork Length mm
108
Warranty
2 year/10,000 cycles
Smart Phone Control
Yes (optional)
Courtesy Light
 Yes (LED)
Battery Back up
Yes (optional)
Safety Beam Compatibility
1 set wireless/ 2 sets 2-wire 3 sets total
Remotes Included
2 x PTX-6v1
Wall Button
Included
Key Switch
Yes (optional)
Transmitter Capacity
64
Protocol
TrioCode 128  and Tritran +
View full details

Why We Love the

ATA GDO-12v1 HIRO

At Shedify, we’ve installed hundreds of motors, and the HIRO is our "problem solver." It’s rare to find a commercial-grade opener that packs this much punch (1400N of force) while maintaining a slim enough profile to fit into tight side-room gaps as small as 35mm.

Whether you’ve got a massive rural shed with wind-locked tracks or a high-traffic commercial workshop, the HIRO handles the friction and the frequency without breaking a sweat. It’s quiet, it’s smart, and it’s built for the rugged Australian environment. It’s the motor we’d put on our own sheds.

FEATURES & BENEFITS

ATA GDO-12v1 HIRO Garage Commercial Roller Motor/Opener

Massive Lifting Capacity: Effortlessly operates doors up to 28m, making it the go-to for oversized commercial and industrial rollers.

Wind-Lock Ready: Engineered with the high torque necessary to overcome the drag and friction of wind-locked doors in high-wind zones.

Ultra-Slim Fit: The compact design requires minimal side room, allowing for installation in tight spaces where other commercial motors won't fit.

Variable Speed Control: Customise the opening and closing speed to suit your workflow—get the door up fast when you’re on the move.

Intelligent Safety System (ISS): Advanced sensors detect obstructions and automatically reverse, protecting your equipment, vehicles, and staff.

Smart Phone Compatible: Upgrade with a Smart Hub to monitor and control your shed door from anywhere in the world via the ATA App.

TrioCode™128 Technology: World-class encryption ensures your remote signal cannot be "interrupted" or copied by tech-savvy intruders.

ATA GDO-12v1 HIRO Garage Commercial Roller Motor/Opener

Specifications

Peak Pulling Force: 1400N

Input Voltage: 240V AC 50Hz

Motor Type: 24V DC with Thermal Overload Protection

Max Door Height: 5.5m

Max Door Width: 5.5m (Total area up to 28 square metres)

Side Room Requirement: 35mm (Minimum)

Duty Cycle: High-Duty (Designed for frequent daily use)

Transmitter Range: Up to 50m (Environment dependent)

Encryption: TrioCode 128 (Advanced security against code grabbing)

Warranty: 2-Year / 10,000 Cycle manufacturer warranty
