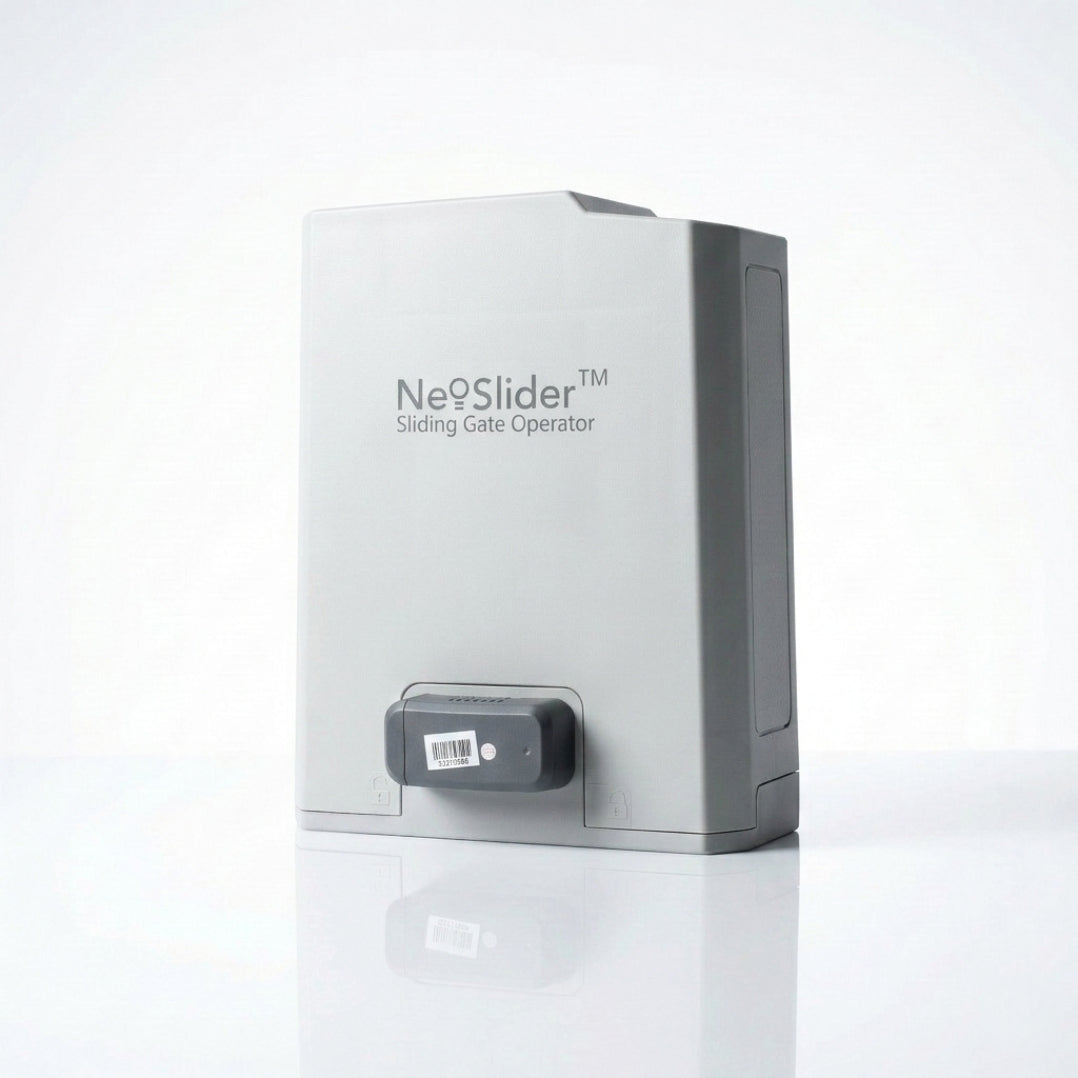

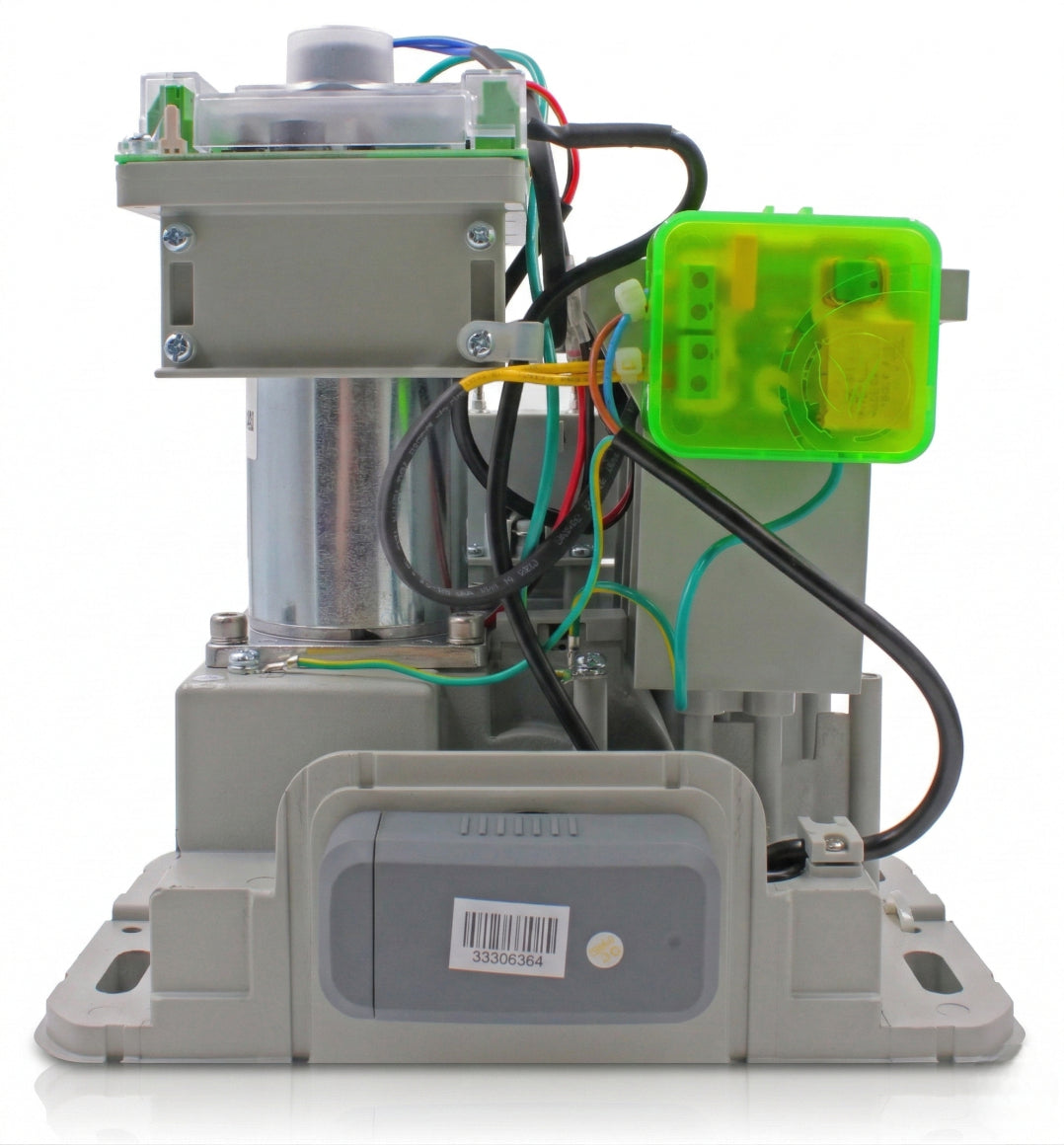

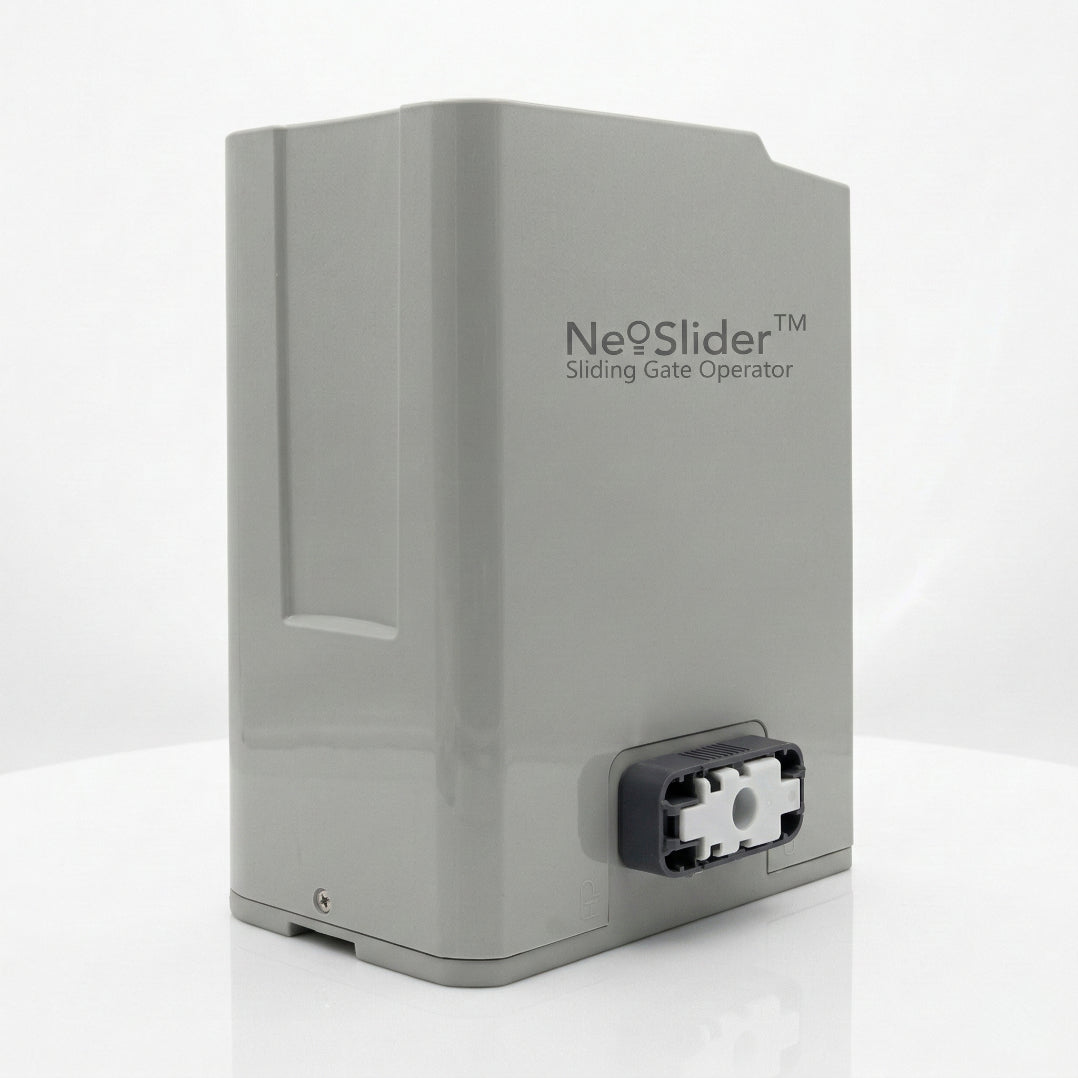

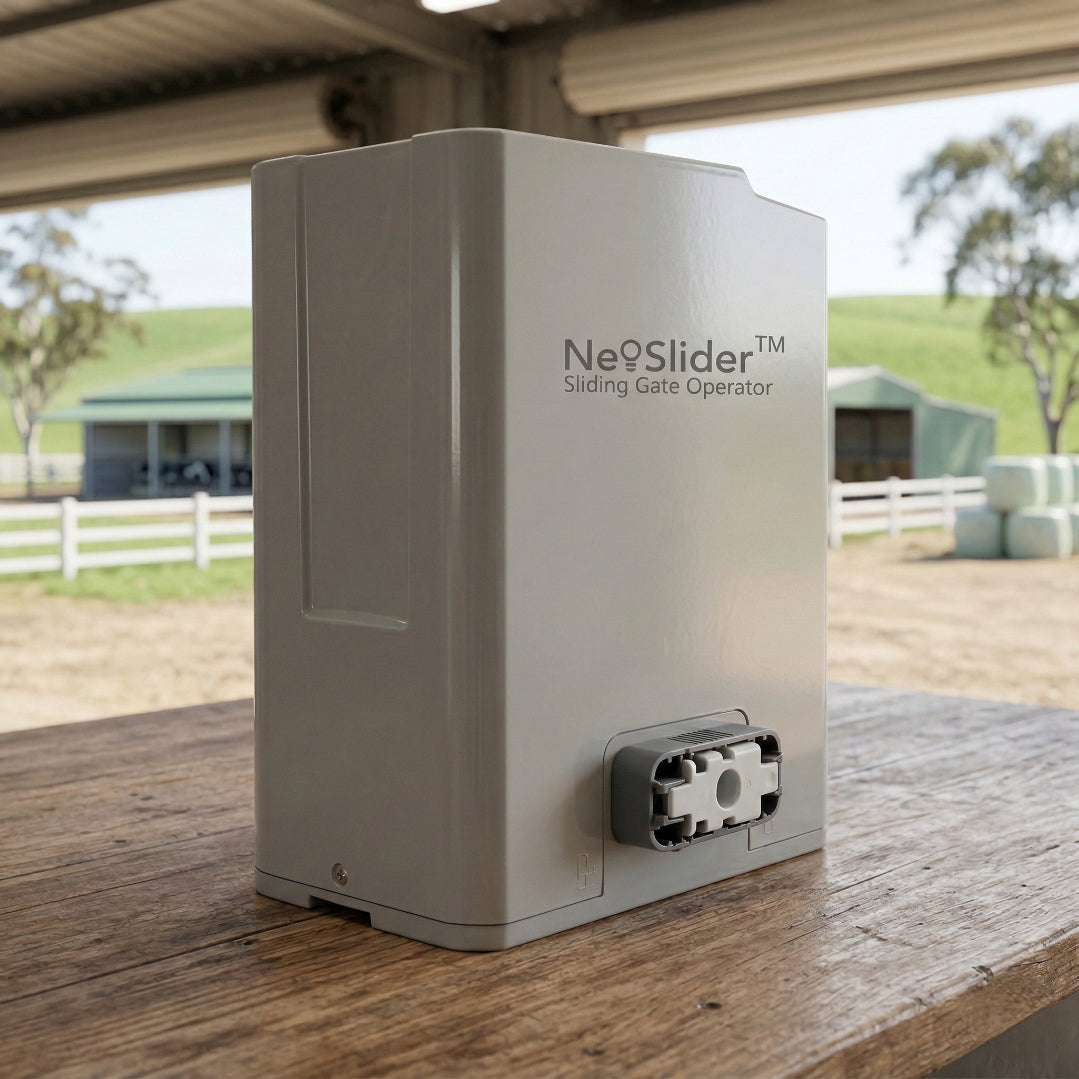

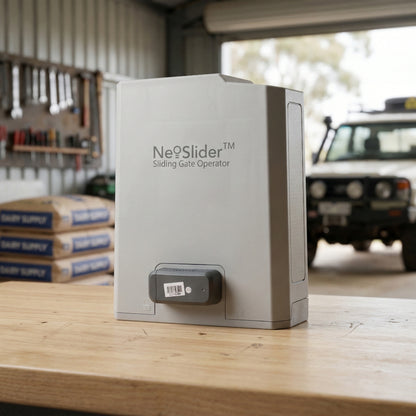

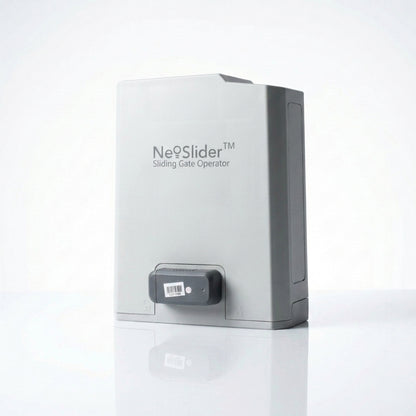

ATA Solar Neoslider NES-500 Sliding Gate Motor/Opener

Motor Manual

Motor Brochure

Solar Manual

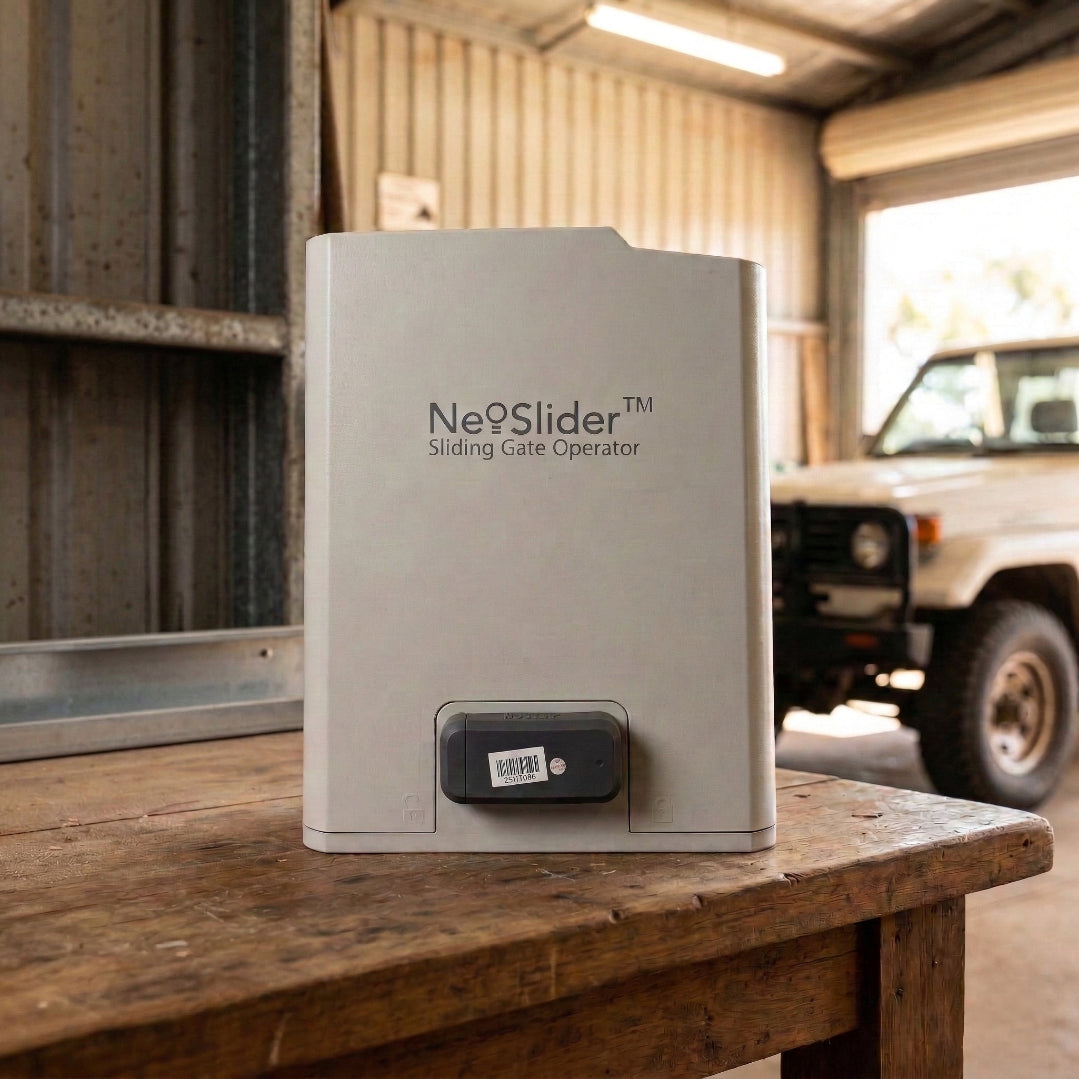

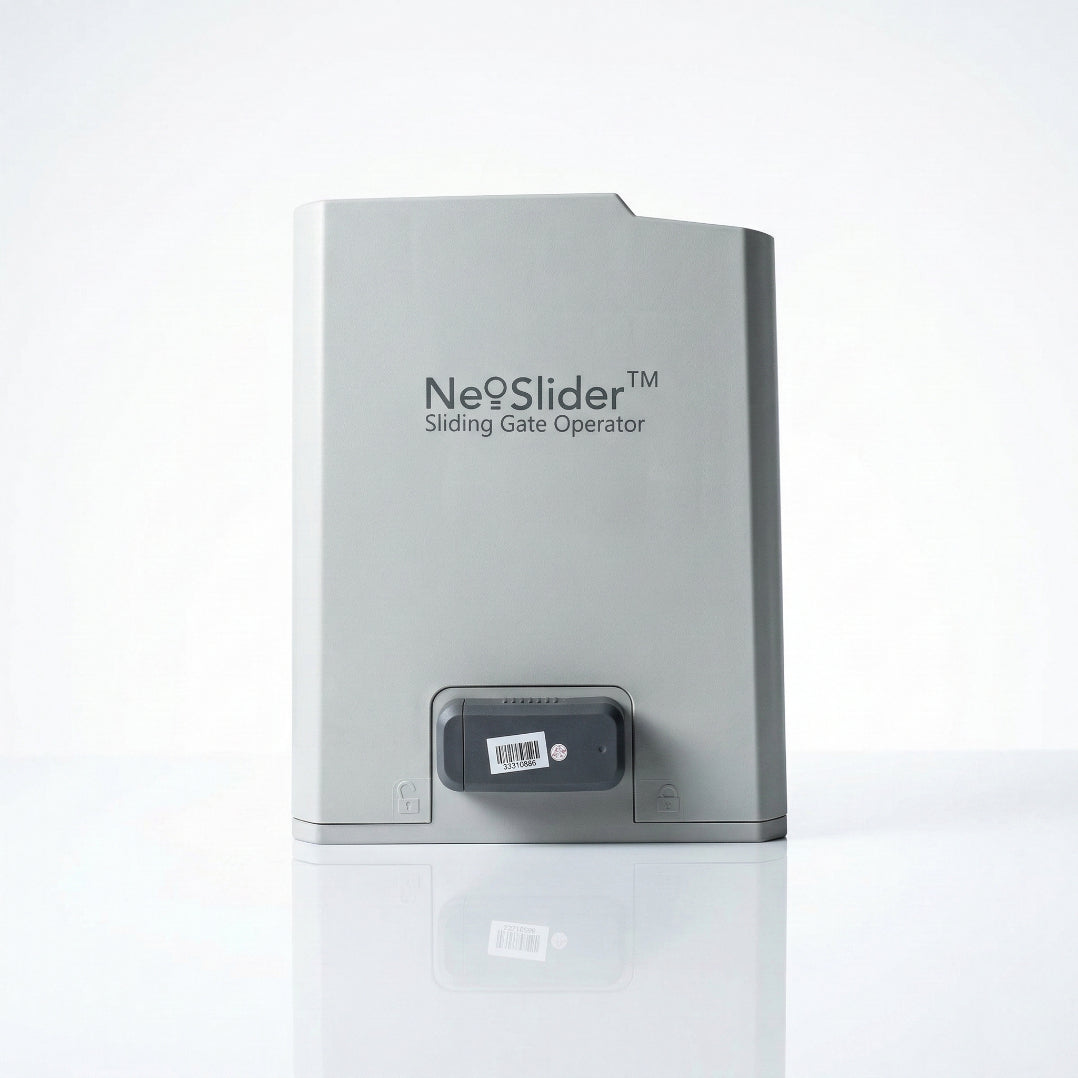

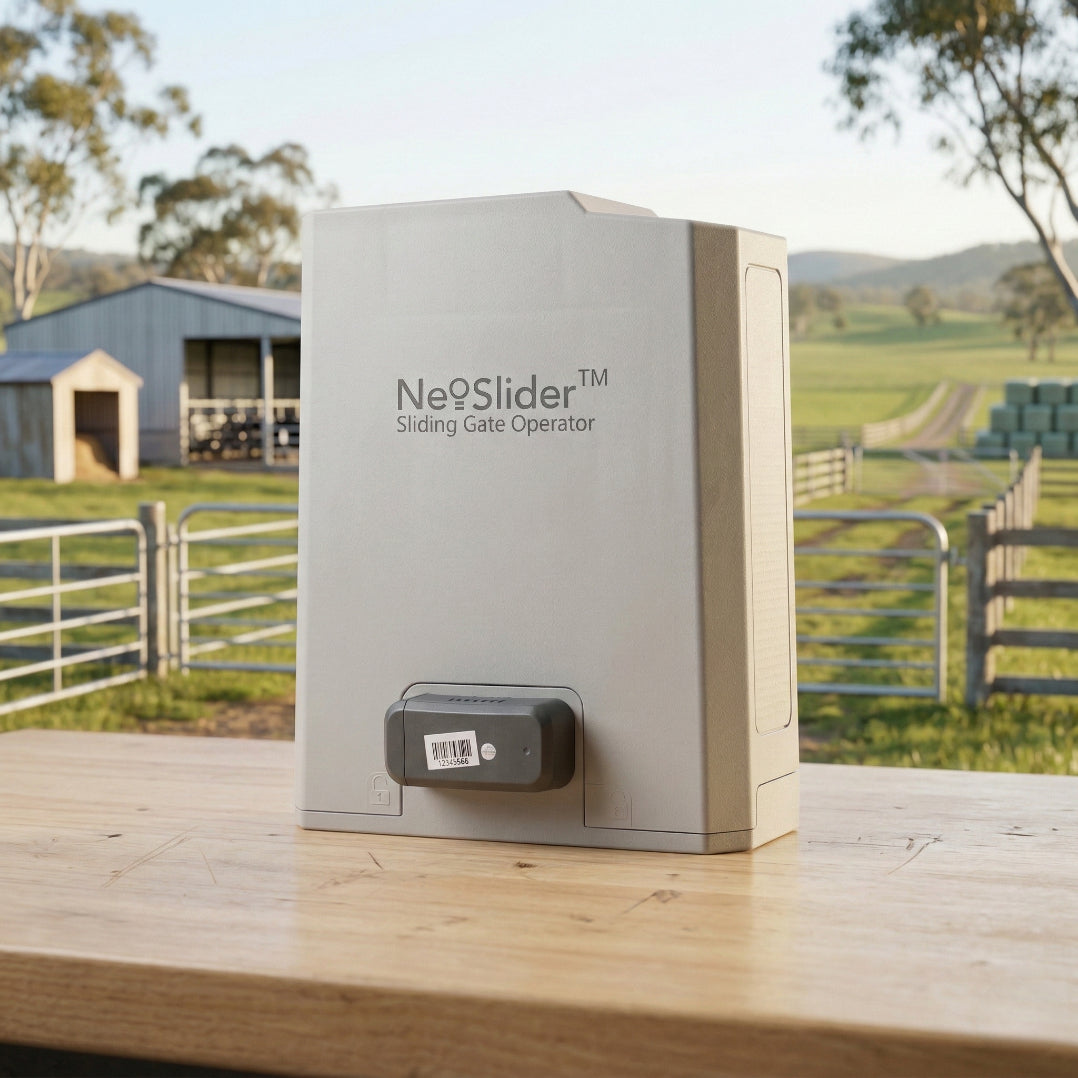

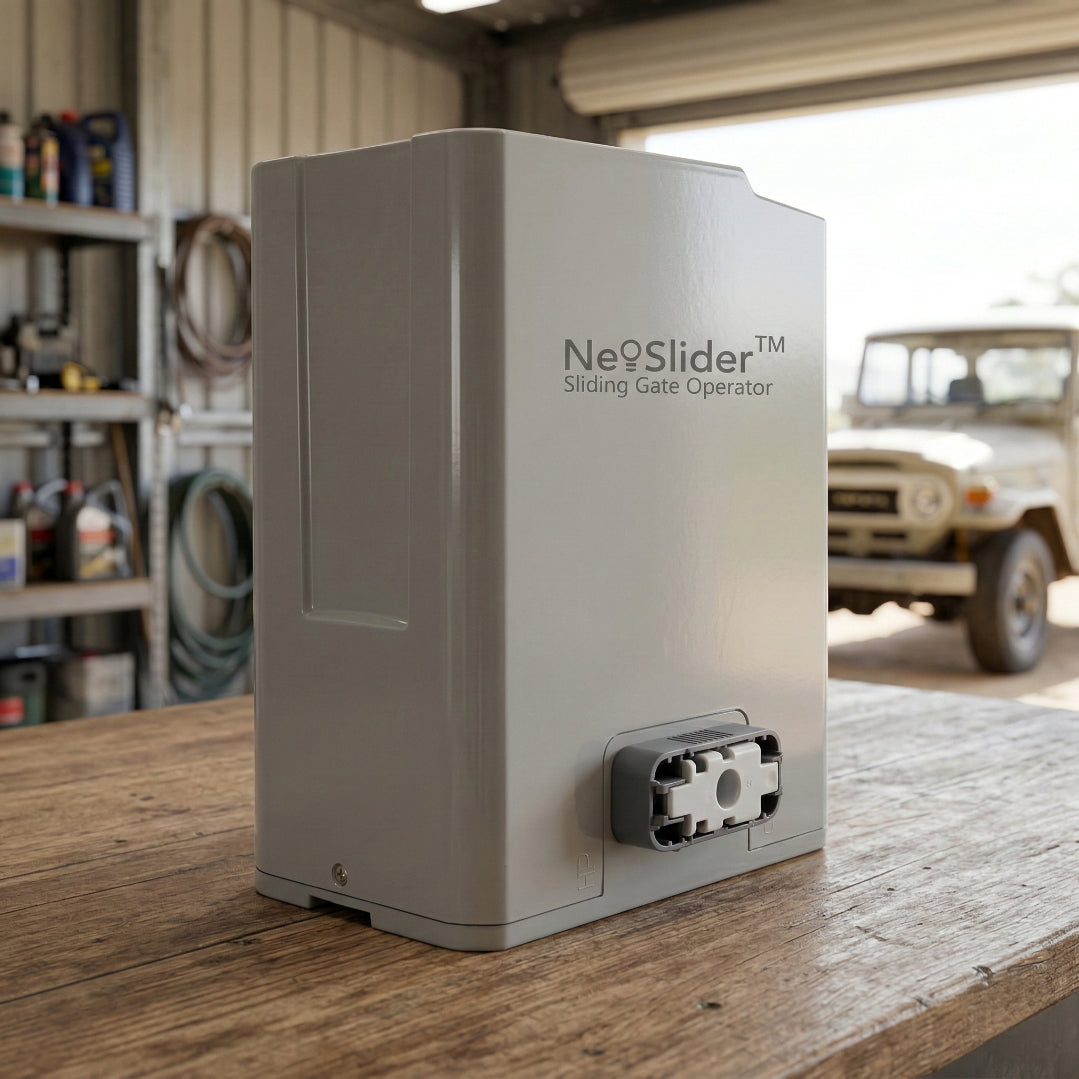

The next generation of gate openers has arrived. The NeoSlider 500 delivers increased gate weight capacity and will operate the majority of residential sliding gates in Australia.

NeoSlider 500 is perfect for residential gates up to a weight of 500kg and a width of 6m. This powerful unit will operate the majority of residential gates in Australia.

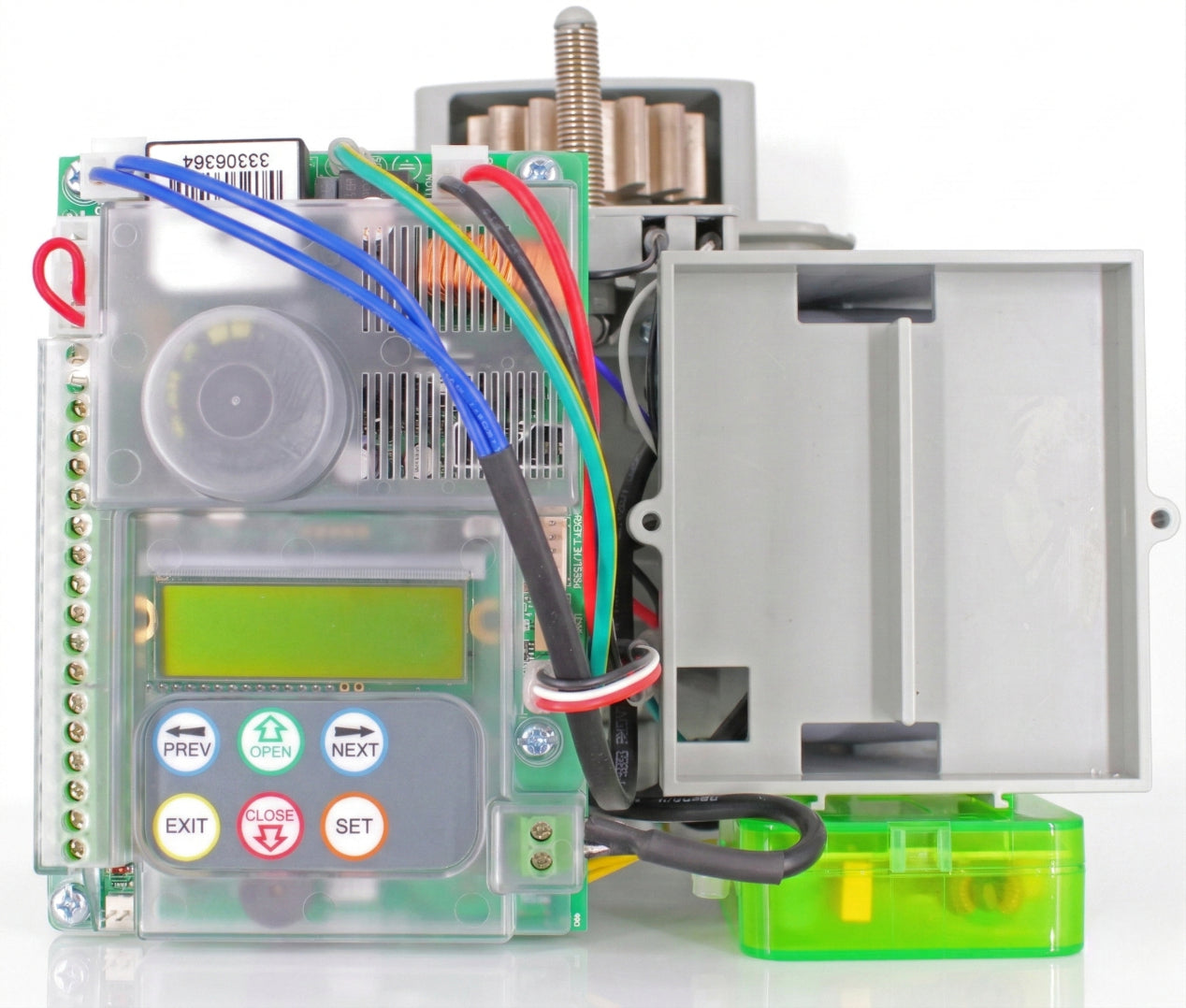

This powerful unit combines clever electronics and robust mechanics to make residential sliding gate automation simple and secure. Featuring a variety of operating modes, custom settings, numerous inputs to interface with devices such as intercoms, and a service indicator.

Smart Phone Control is available as an upgrade option. This innovative feature allows you to control and monitor your gate remotely from your smartphone - from anywhere as long as wifi is within range.

Also offering a wide range of accessories to choose from, such as safety beams for to ensure the gate does not close if there is something in the way, backlit digital keypads for added convenience and secure access, battery back up.


Includes ATA Neoslider NES-500 Sliding Gate Motor:
1 x ATA NES500 Gate Opener/Motor

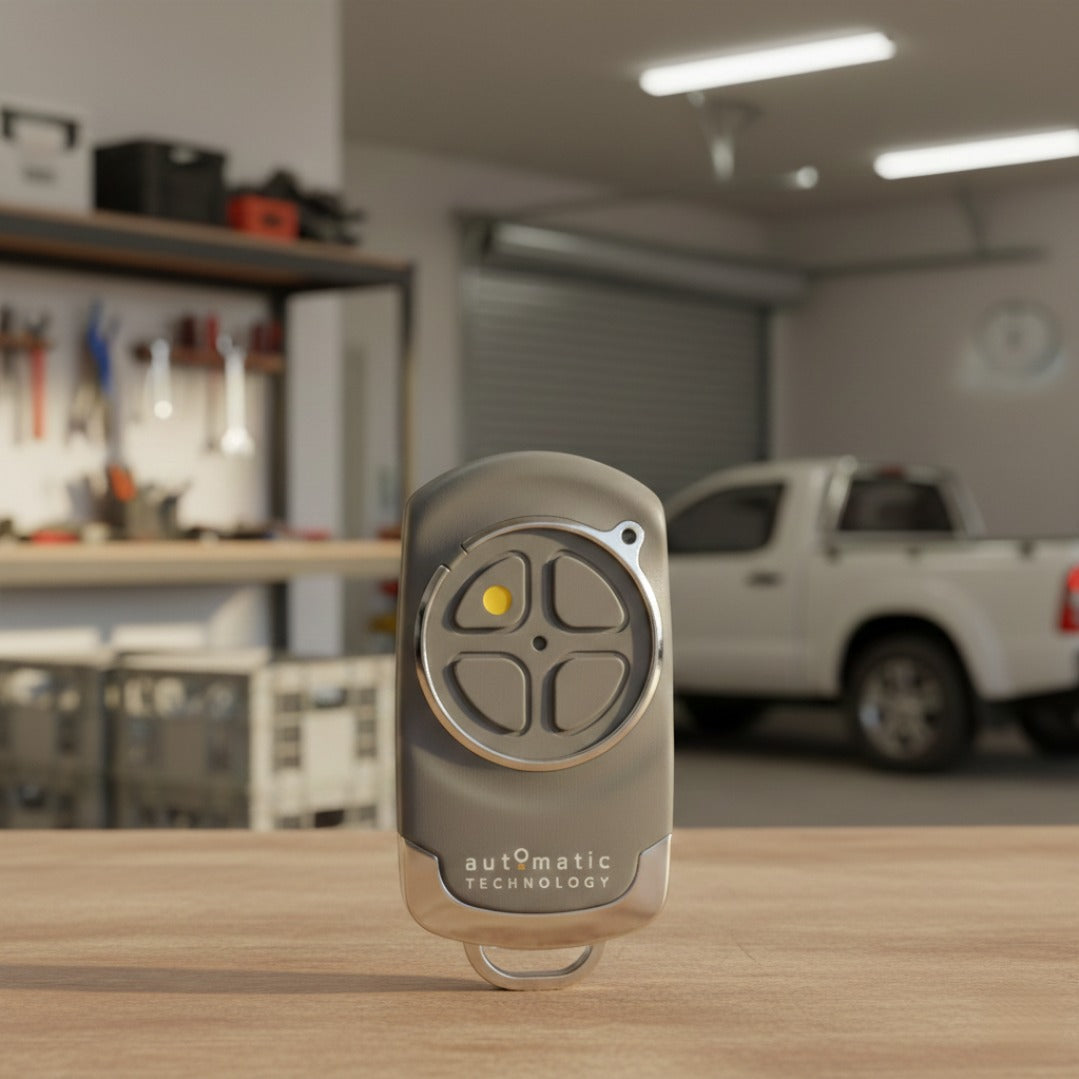

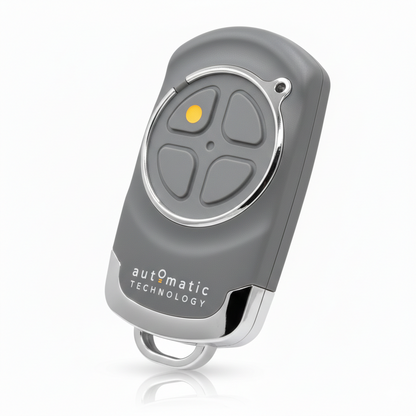

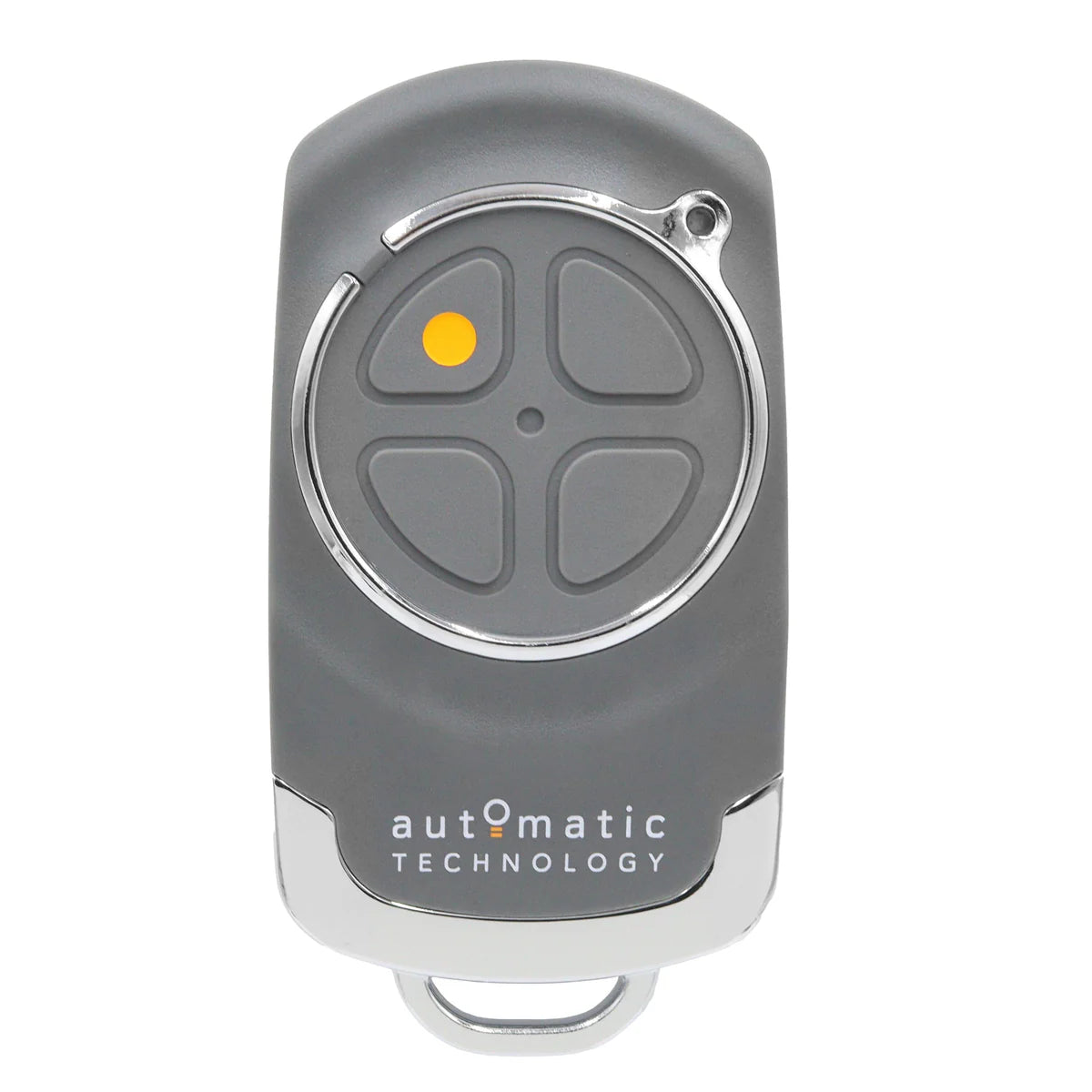

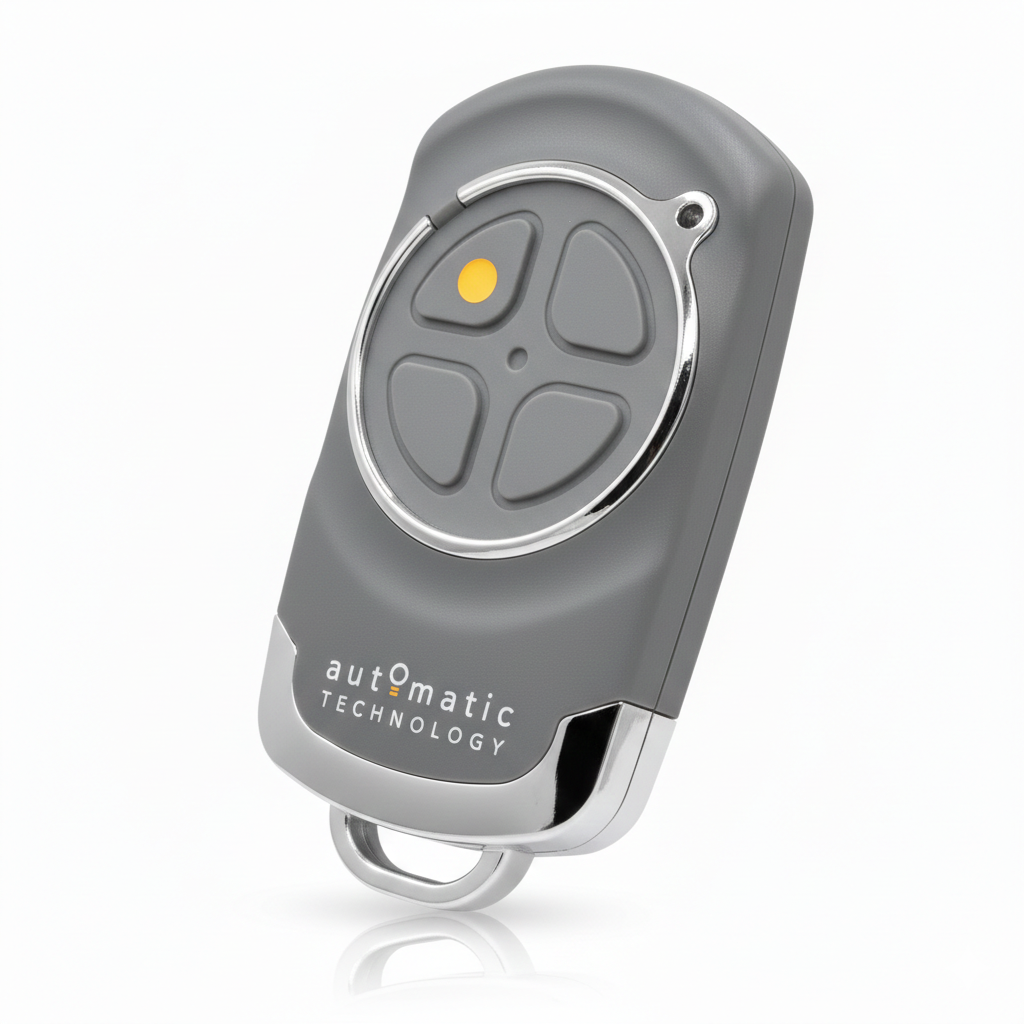

2 x PTX-5v2 Remotes
2 x Metal Feet
1 x Metal Plate
1 x Wired External Antenna

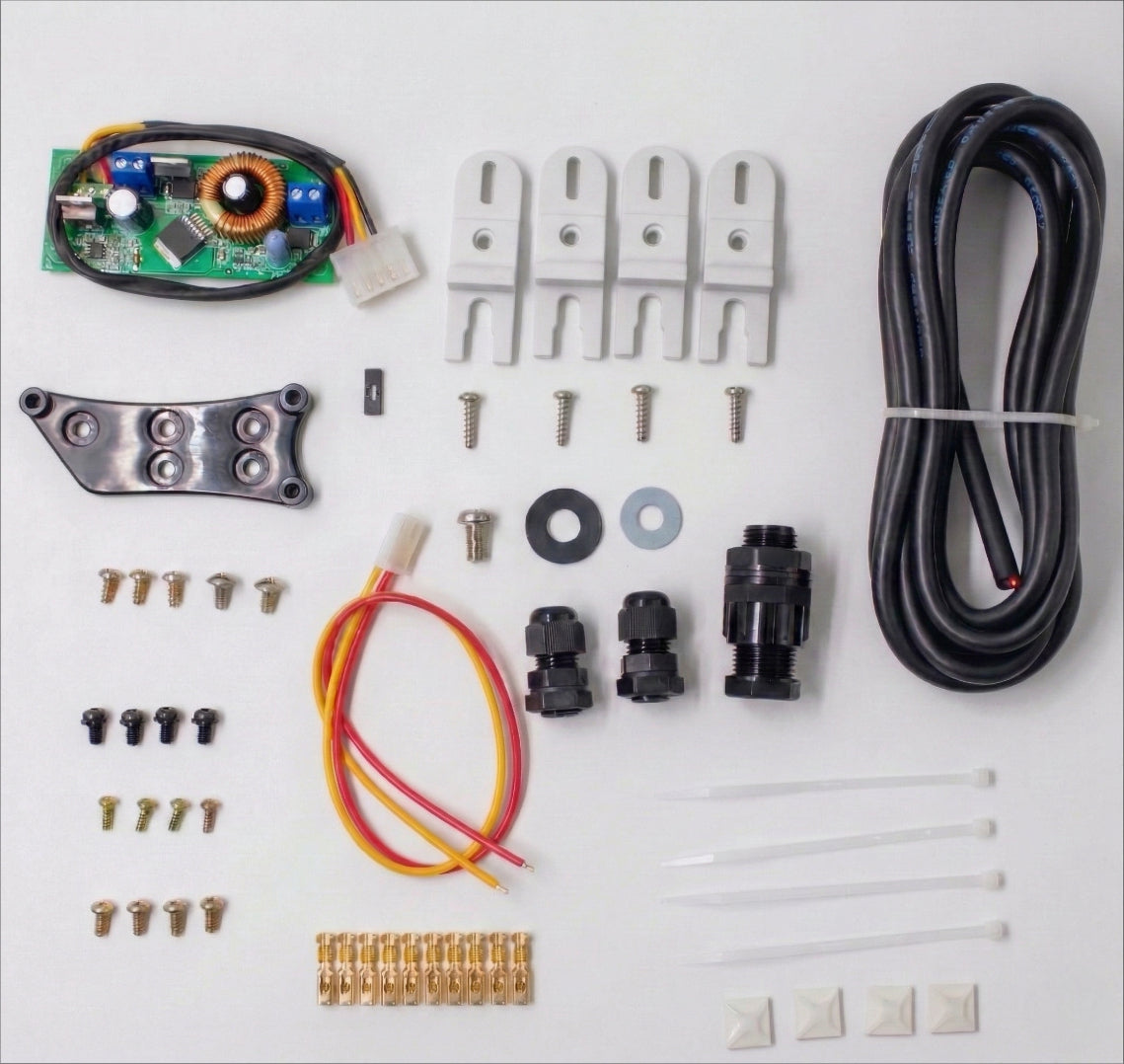

1 x Screw & Bolt Kit
1 x Instruction Manual


Please note the gear rack is not included and can be purchased in 1m lengths by clicking here.

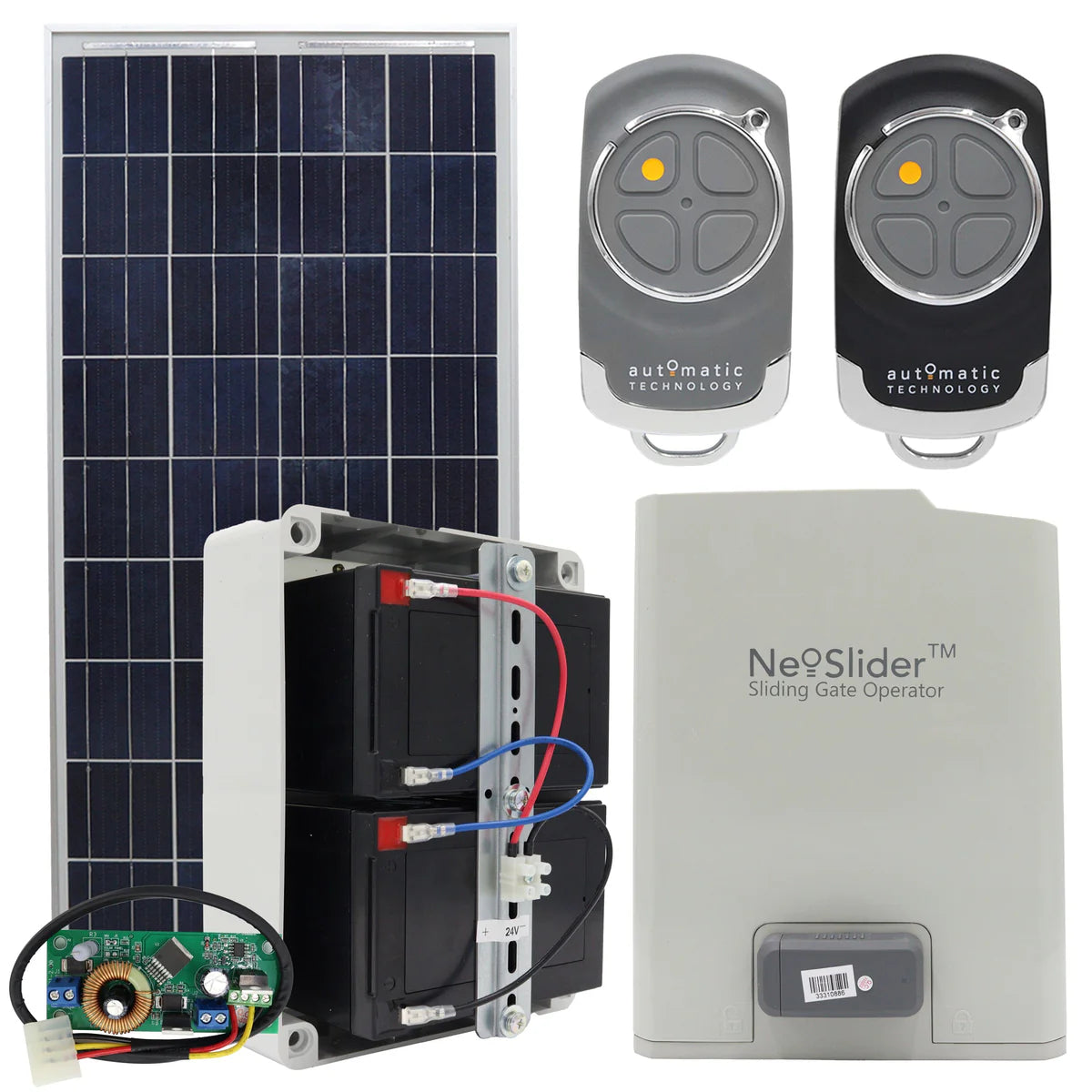

Includes ATA Smart Solar Power Gate/Garage System:
1 x Solar Panel - 30 WATT STP030-12/Lb

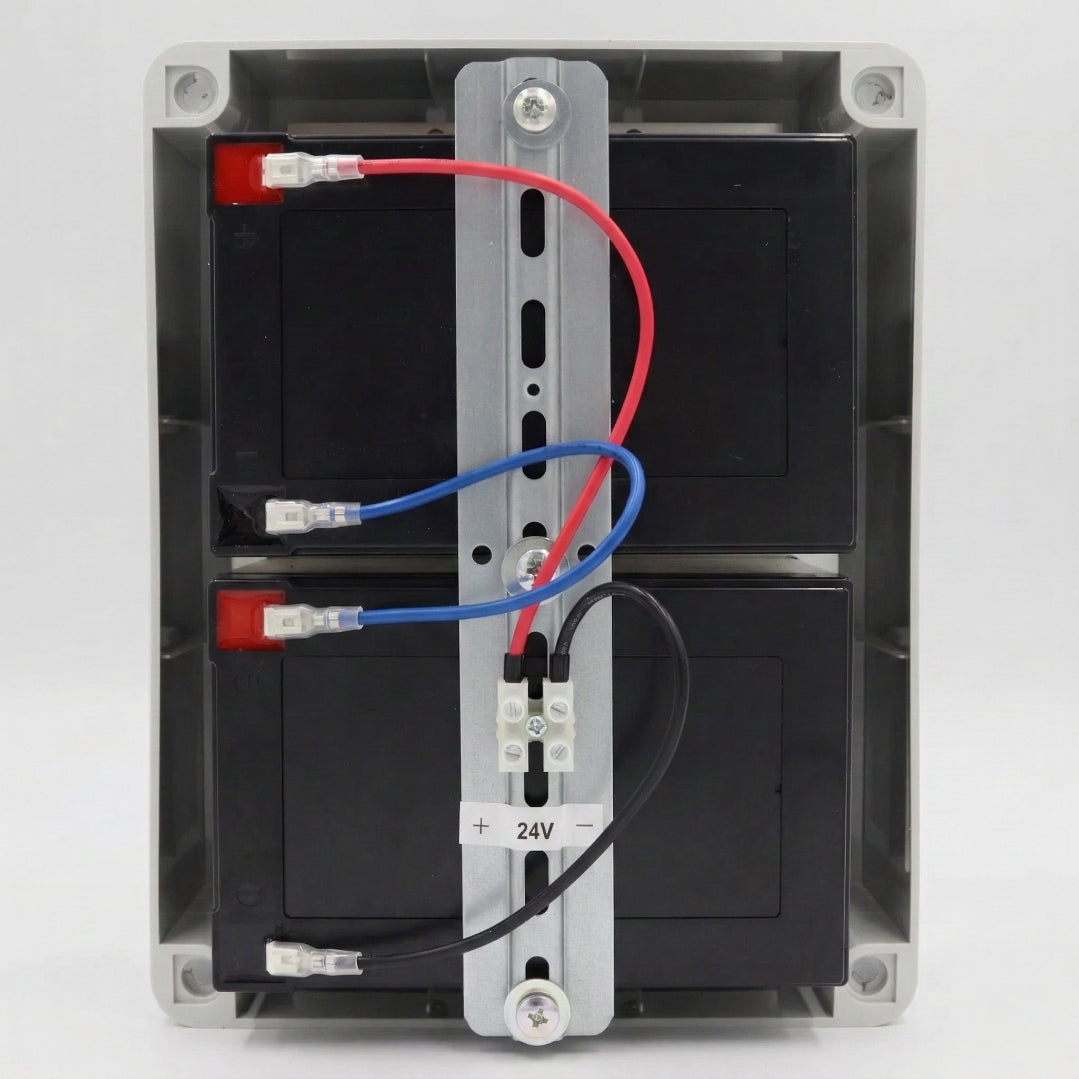

1 x Battery Pack (2 X 12 Ah) - Includes Weatherproof Box
1 x Charger Board (With Harness)
1 x Accessory Pack
1 x Installation Instructions
*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual

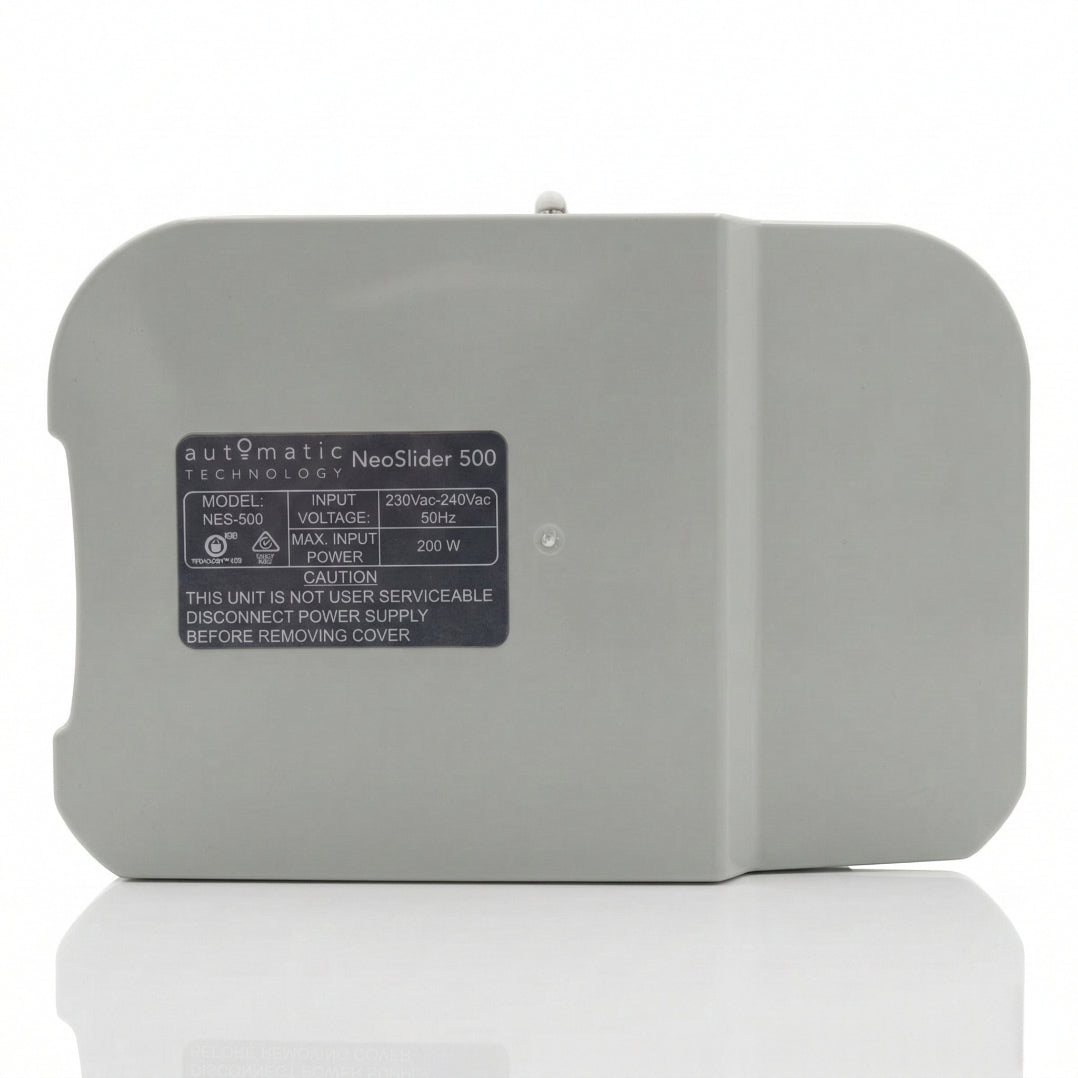

NES-500 Specifications

Kit Type Residential

Maximum gate weight

Up to 500 kg

Maximum gate width

6 m

Driving force

280 N

Power Supply Voltage

230 “ 240 Vac 50Hz

Standby power

2.8W

Travel speed

0.2m / second

Operating ambient temperature

-20° to +50°C

Dimensions (w x h x d)

275mm H x 250mm W x 170mm D

Weather resistance rating

IP44

Motor type

24 DC Permanent Magnet

Limit switch type

Mechanical

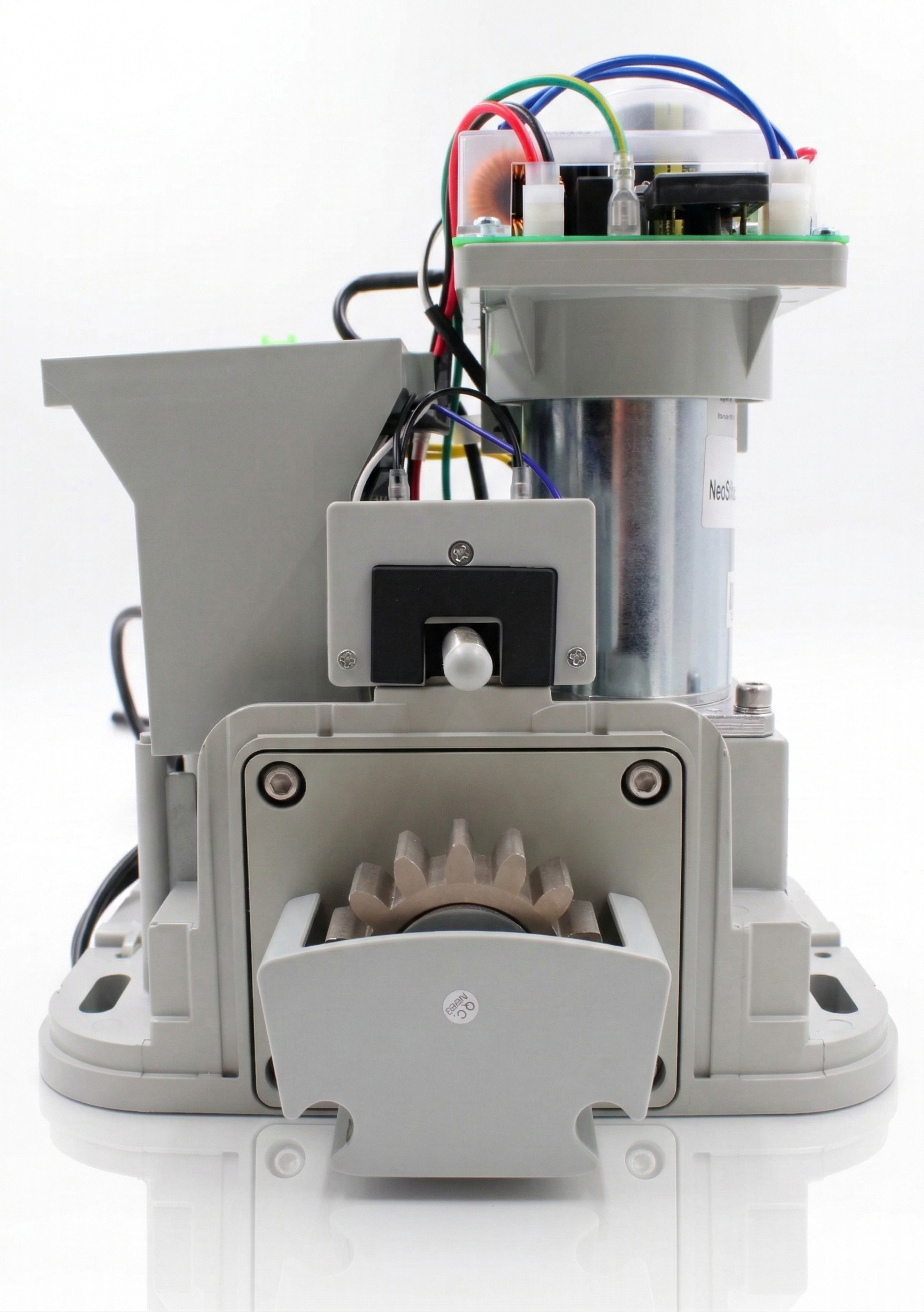

Type of pinion

M4-T14

No. of Safety Beam Inputs 2

Transmitter storage capacity

30 x 4 button Transmitter

Warranty*

2 years / 5,000 cycles


Smart Solar Specifications
SmartSolarV2 Technical Specifications* Garage Door Sliding Gate Swing Gate
Load Voltage 24 24 24
Load Continuous Current 3 - 5A 5A 5 - 10A
Number of Cycles per Day 10 10 10
Average Cycle Time (Opening and Closing) 40 seconds 90 seconds 72 seconds
Max. Standby Current

Without P.E. Beams

With P.E. Beams

With 2 x P.E. Beams



100mA

180mA

-



100mA

180mA

-



100mA

180mA

260mA

Average total consumption current per day

Without P.E. Beams

With P.E. Beams

With 2 x P.E. Beams



2.75 - 3Ah

4.66 - 4.8Ah

-



3.7Ah

5.55Ah

-





3.4 - 4.4Ah

5.31 - 6.3Ah

7.23 - 8.23Ah

Average total consumption current per hour

Without P.E. Beams

With P.E. Beams

With 2 x P.E. Beams



0.11 - 0.13A

0.194 - 0.2A

-

0.16A

0.23A

-



0.14 - 0.18A

0.22 - 0.26A

0.3 - 0.343A

Recommended storage battery capacity / voltage 10.5Ah/24v 12Ah/24V 12 - 18Ah/24V
Wire Gauge and Length from Battery to Charger board (max) 18AWG, 3m 18AWG, 3m 18AWG, 3m
Solar panel average rated output generation time per day (winter months) 4 hours 4 hours 4 hours
Solar Panel Output voltage / current 18V / 1.19A 18V / 1.75A 18V / 1.75A
