Genuine Superlift Sectional/Overhead/Tilt Garage Door 1000N Motor & Rail

Genuine Superlift Sectional/Overhead/Tilt Garage Door 1000N Motor & Rail

$345.00
$345.00
Shedify Price Sold out
Shipping calculated at checkout.

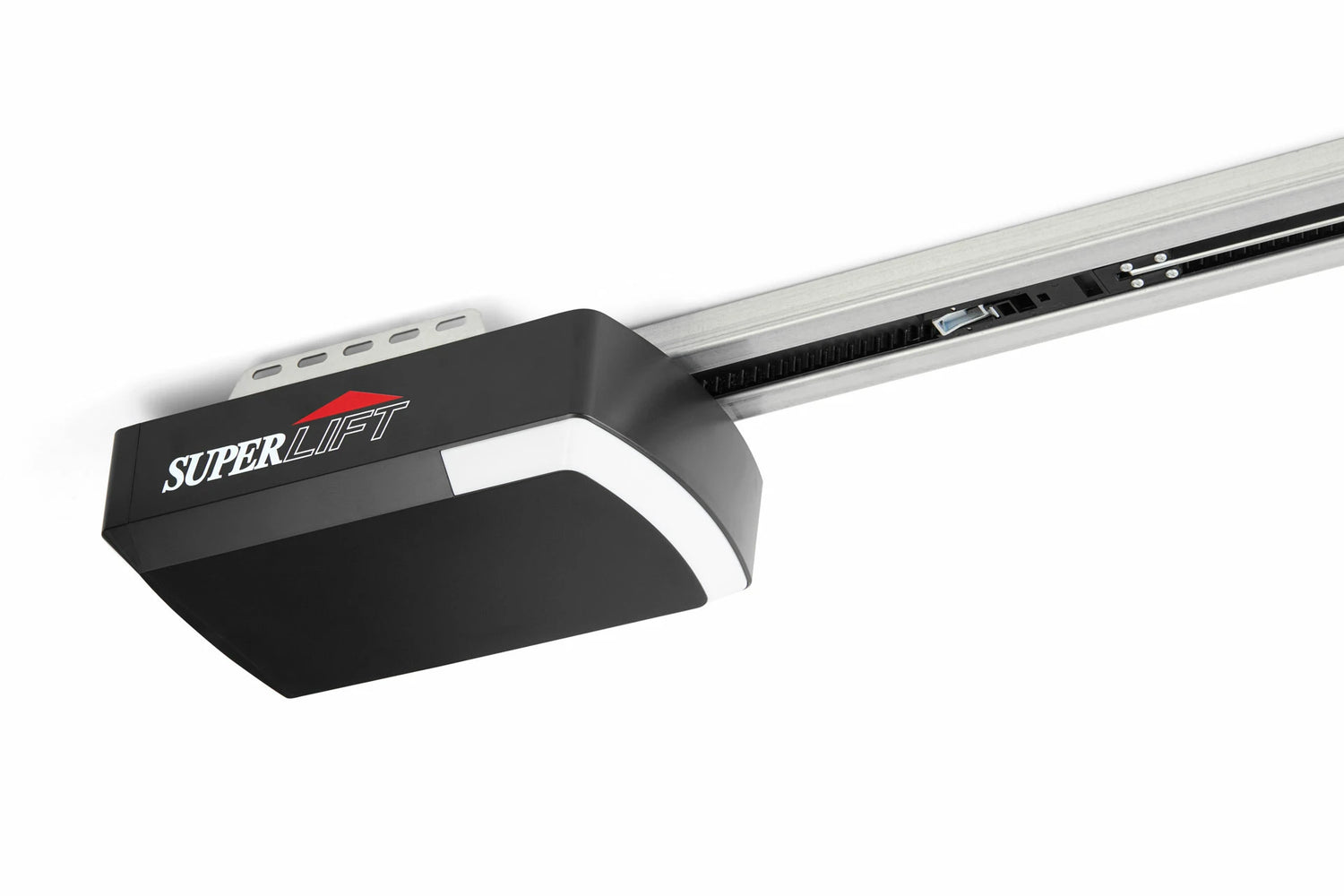

Introducing Superlift's SDO-5, setting a new standard in garage door openers with cutting-edge technology and unparalleled features for a seamless and efficient user experience.

Innovative Power and Drive:
Building on the success of SDO-3, the SDO-5 boasts a DC power system and a refined belt drive. Our exclusive "C" rail, renowned for easy installation and robustness, now features a modified drive wheel for smoother and stronger performance. The motor power has been upgraded for enhanced efficiency.

Single Motor Option:
The SDO-5 is available with a 1000N motor. The inclusion of extra brackets in the kit provides installers with versatile mounting options for optimal placement.

Whisper-Quiet Operation:
The 1000N DC motor ensures a remarkably quiet operation. The digital display and setup buttons are discreetly housed within a special cover, giving the SDO-5 a sleek and modern aesthetic. Illuminate your garage with ease using our new LED lighting.

Advanced Safety Features:
Superlift prioritizes safety with the latest automatic technology. The SDO-5 is equipped to detect obstructions, automatically stopping and reversing the door. For added security, consider our optional Photo Electric Beams, ideal for homes with children and pets.

Effortless Installation and Setup:
Our pre-packed assembly kit includes twist-on brackets for versatile mounting. Retro-fit the SDO-5 with ease using our user-friendly hangers, designed to adapt to existing brackets from previous installations. The electronic setup ensures quick installation, and our comprehensive guide simplifies programming of advanced features.

Dual Speed for Convenience:
Experience a swift and smooth operation with the SDO-5, designed to get you home faster. Adjust the speed for older tilt doors to prevent wear and tear over time.

Belt Drive Reinvented:
Our steel-reinforced belt drive ensures a quiet operation without compromising strength, delivering a superior garage door opener experience.

Tailored Fit for Every Garage:
Choose from three standard rail lengths (3.3m, 3.6m, 3.9m) to accommodate garage doors up to 3 meters in height. Extension kits are available for unique openings, and our rails are easily customizable for J-Type tilt door installations.

Smart and Connected:
Experience modern convenience with Bluetooth connectivity to your smartphone, auto-close functionality, and a pre-set service warning. Explore the array of advanced features included in our latest model by reaching out to us today. Upgrade to Superlift's SDO-5 for a garage door opener that exceeds expectations.

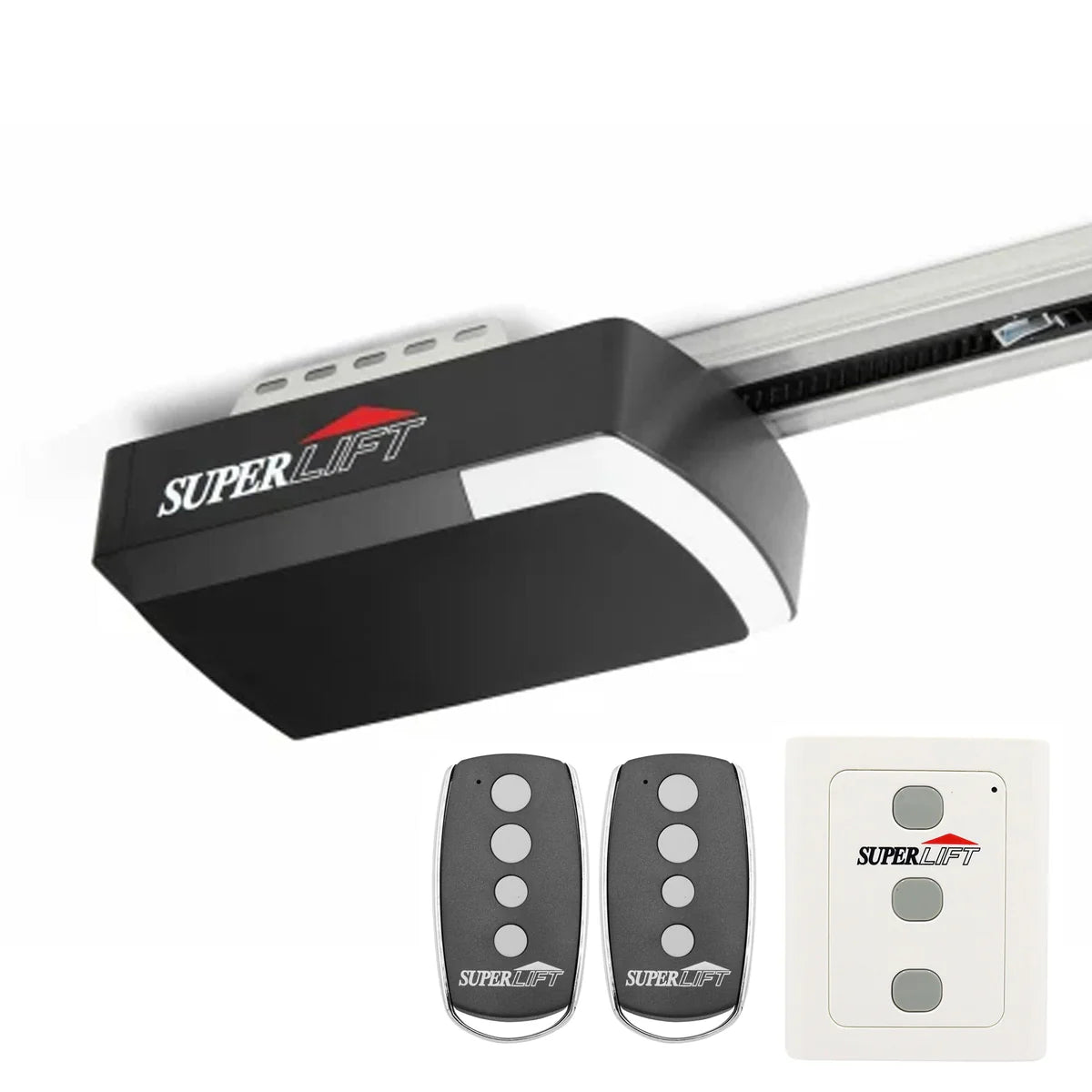

Includes:

  • 1x SDO-5 1000N Motor/ Opener

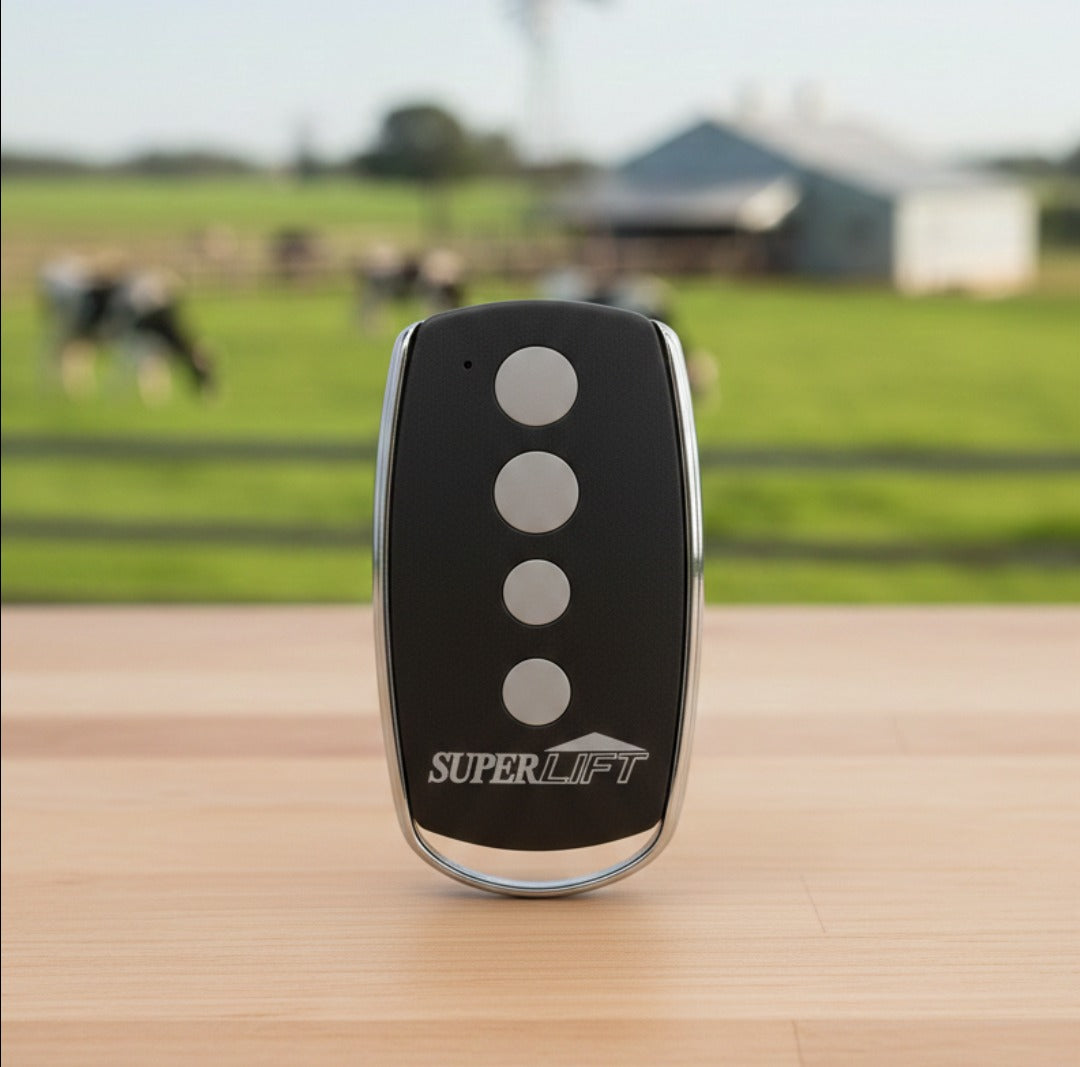

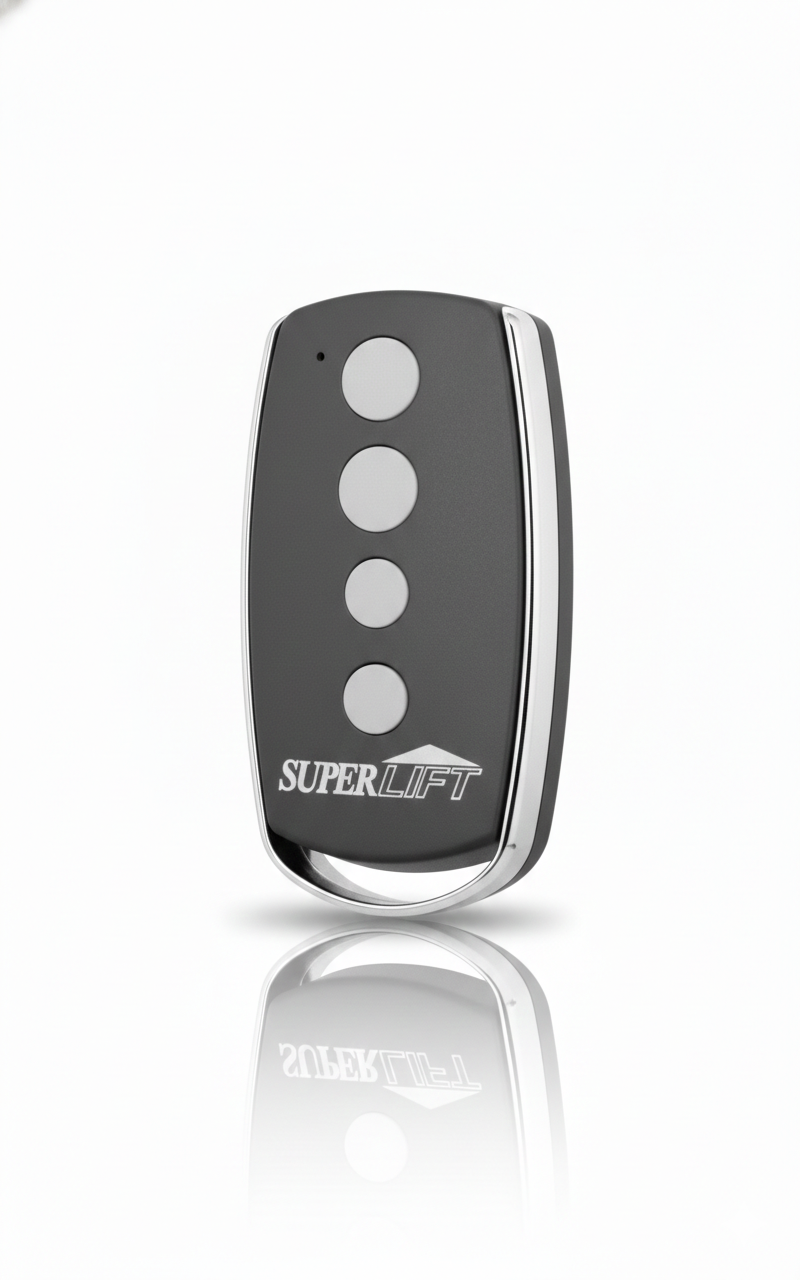

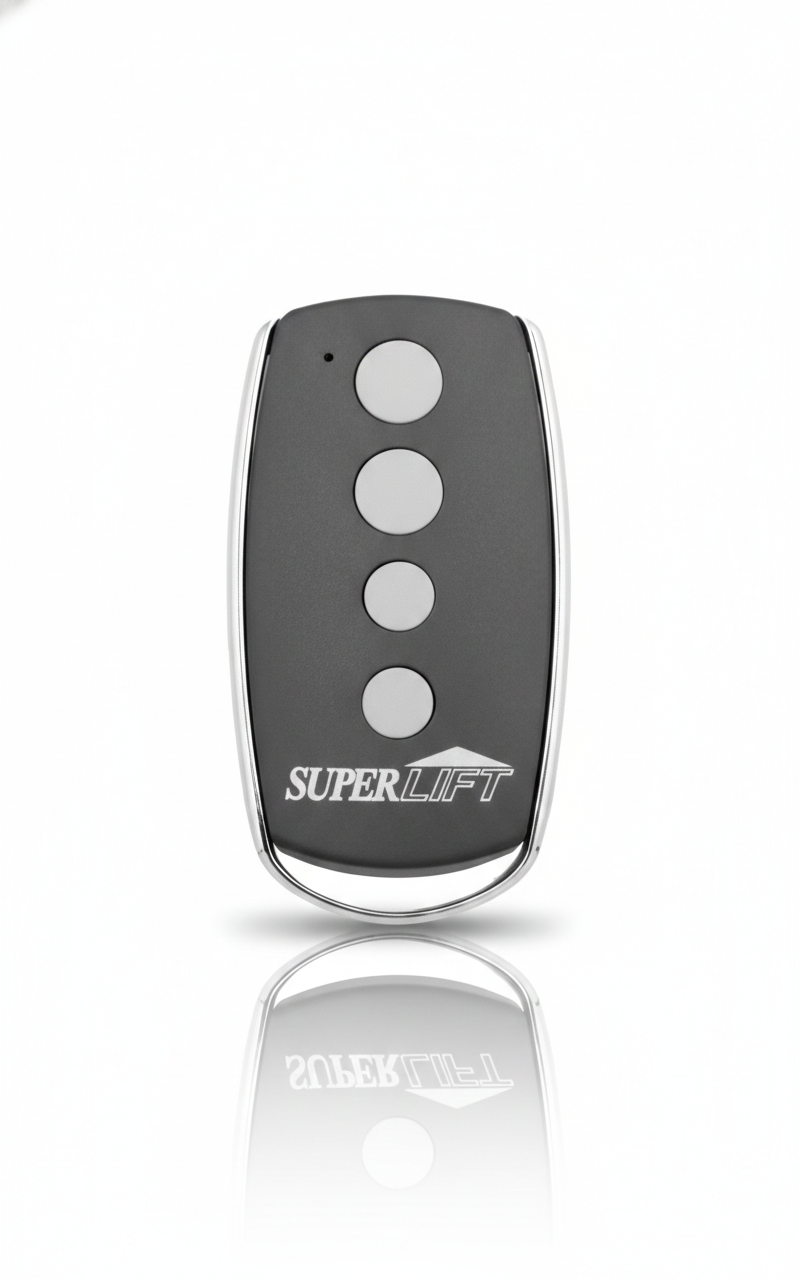

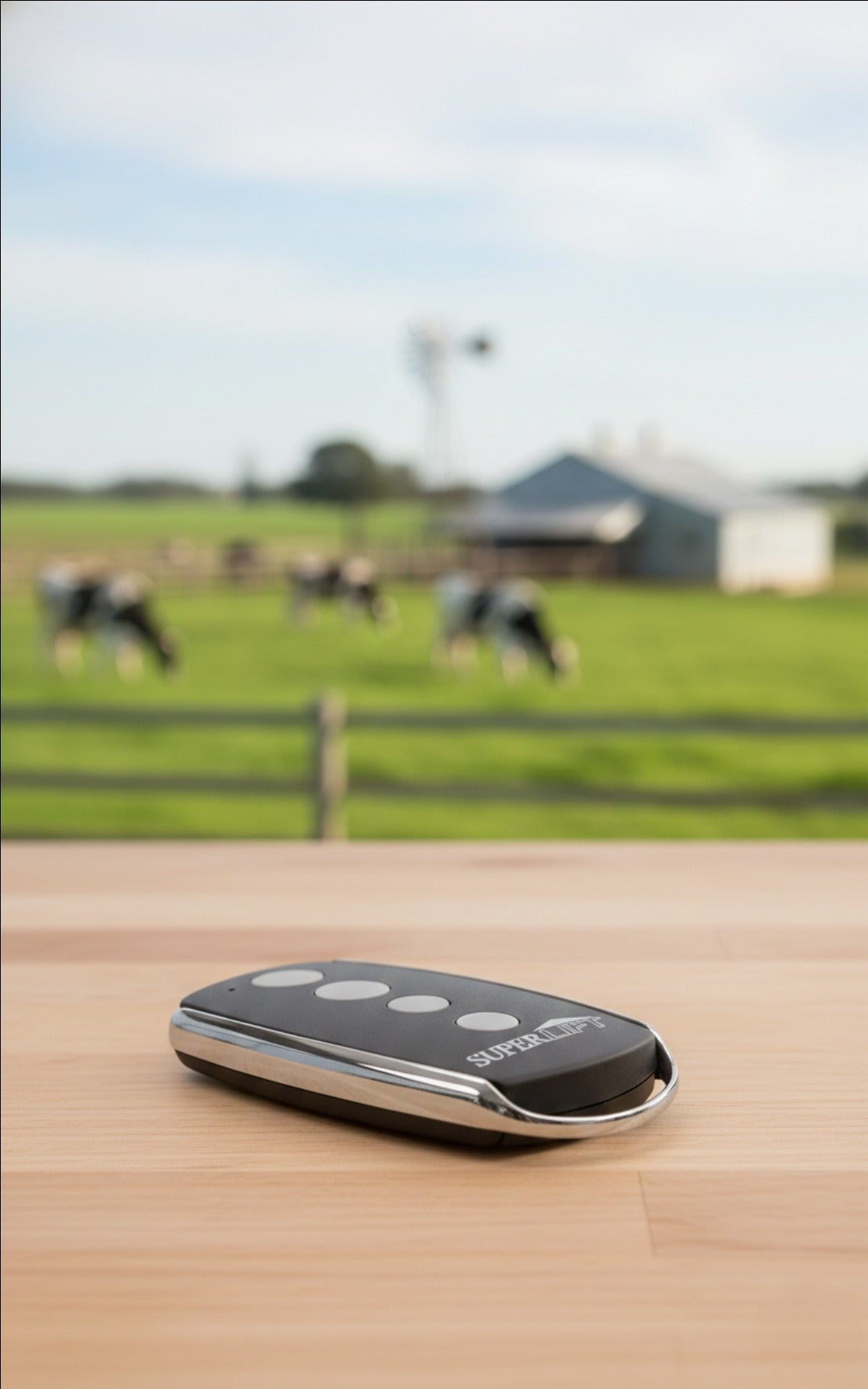

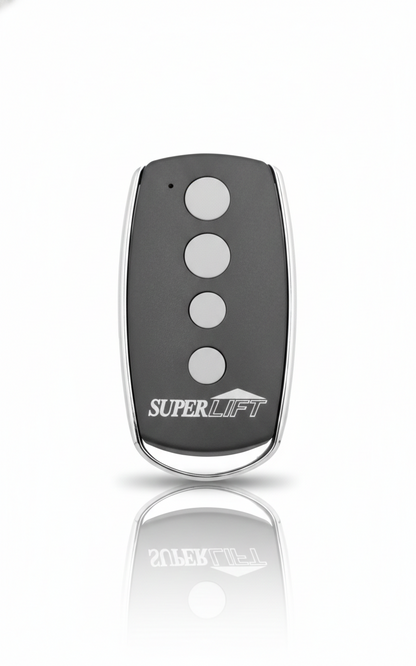

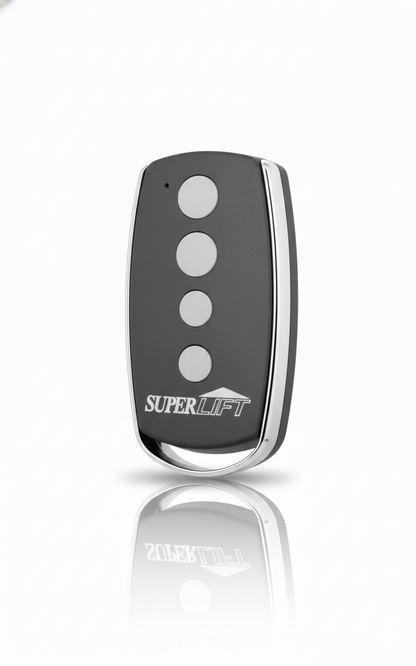

  • 2x Remotes

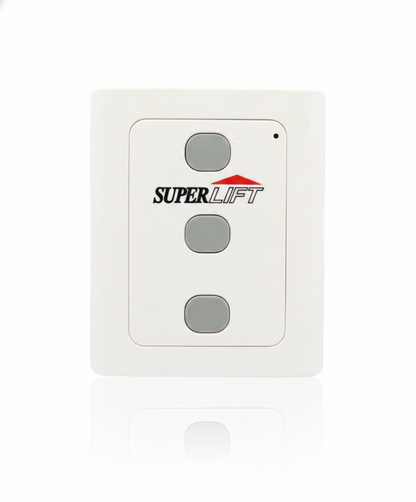

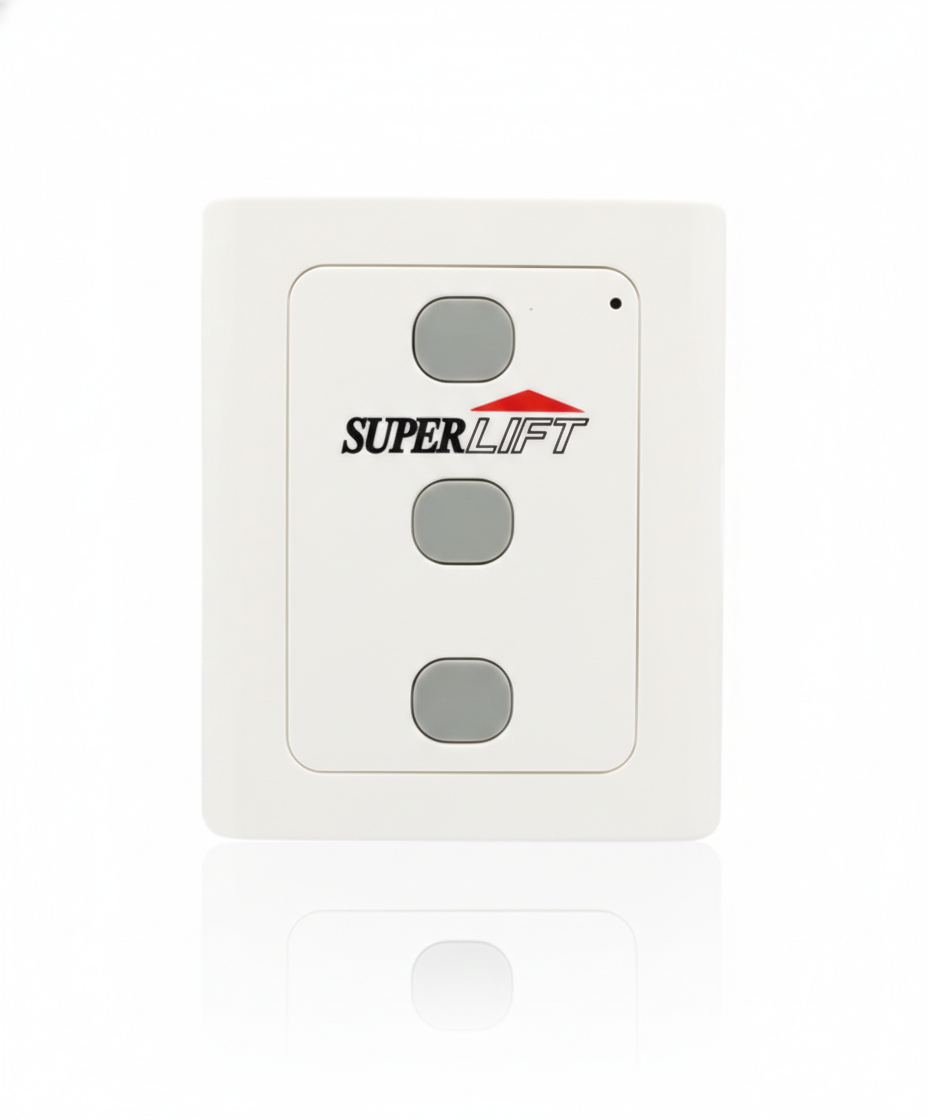

  • 1x Wall Button
  • 1x Segmented Rail

Technical Specifications:

  • Input Voltage: 240 VAC 50Hz
  • Motor Type: 24V DC
  • Lifting Force: 1000N
  • Door Height: 2.4M with 3300mm rail (included) or up to 2.7M with 3600mm (not included) or 3M with 3900mm rail (not included)
  • Headroom May be mounted direct to ceiling
  • Safety reversing system Electronic adjustment or optional PE beam
  • Transmitter Frequency: 433.92Mhz
  • Transmitter Storage Capacity: Up to 50
  • Coding Type: Rolling code
  • Number of Code Combinations: Over 4.2 billion
  • Auto close Available with PE Beams
  • PE Beams Optional accessory
  • Door Travel Speed: Dual speed. 150mm per second or 128mm per second

*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual

View full details

Why we love the

Superlift's SDO-5

At Shedify, we’ve installed hundreds of garage openers, and the Superlift SDO-5 1000N is our "gold standard" for a reason. Most standard motors struggle with the weight of double-width sectional doors or heavy tilt doors over time, leading to stripped gears and noisy operation.

This unit is a beast—the 1000N of lifting force handles larger doors with ease, while the belt-drive C-rail makes it one of the quietest operators on the market. It’s the perfect "set and forget" solution for anyone looking to automate their shed or garage without the headache of constant maintenance.

Features and Benefits

Genuine Superlift Sectional/Overhead/Tilt Garage Door 1000N Motor & Rail

  • Whisper-Quiet Belt Drive: Unlike noisy chain drives that rattle through the whole house or shed, the steel-reinforced belt provides a smooth, silent operation.
  • High-Torque 24V DC Motor: Engineered for power and durability, providing 1000N of force to lift even the heaviest residential sectional or tilt doors.
  • Intelligent Soft Start/Stop: The motor gradually accelerates and decelerates at the beginning and end of each cycle, significantly reducing wear and tear on your door’s hinges and springs.
  • Enhanced Security: Utilizing 433.92MHz Rolling Code technology, the remote signal changes every time you use it, making it impossible for "code grabbers" to duplicate your remote.
  • Obstruction Detection: Safety is paramount. If the door senses any resistance while closing, it instantly stops and reverses to prevent damage or injury.
  • Dual-Speed Travel: Customize your door’s speed (150mm/s or 128mm/s) to suit your specific door height and preference.

Genuine Superlift Sectional/Overhead/Tilt Garage Door 1000N Motor & Rail

Specifications

Model: Superlift SDO-5 (Genuine)

Max Lifting Force: 1000N (Up to 110kg door weight)

Motor Type: 24V DC High Power

Drive Type: Steel-reinforced Belt Drive

Max Door Height: Up to 3.0m (with 3.9m rail extension)

Memory Capacity: Stores up to 50 Remote Transmitters

Courtesy Light: Energy-efficient LED (stays on for 3 minutes)

Standby Power: < 2 Watts (Eco-friendly)

Warranty: Manufacturer’s Warranty Included

What the pros are saying

  • ★★★★★

    "I’ve been a shed builder for 15 years and the SDO-5 is my go-to. It’s incredibly easy to program the limits digitally compared to the old manual dip-switches. My customers love how quiet the belt drive is—you can barely hear it from outside the shed."

    — Mark T., Professional Installer (QLD)

  • ★★★★★

    "Replaced a dying chain-drive motor with this Superlift 1000N. The difference is night and day. It lifts my heavy 5-meter double door effortlessly and the soft-stop feature means the door doesn't slam into the ground anymore. Highly recommend for any DIYer."

    — David S., Homeowner (VIC)

  • ★★★★★

    "Great kit. The C-rail is much more rigid than the flimsy T-rails you find in the big hardware stores. Setup took less than an hour, and the remote range is excellent—I can open the shed from halfway down the driveway."

    — Jake R., Shed Enthusiast (NSW)
