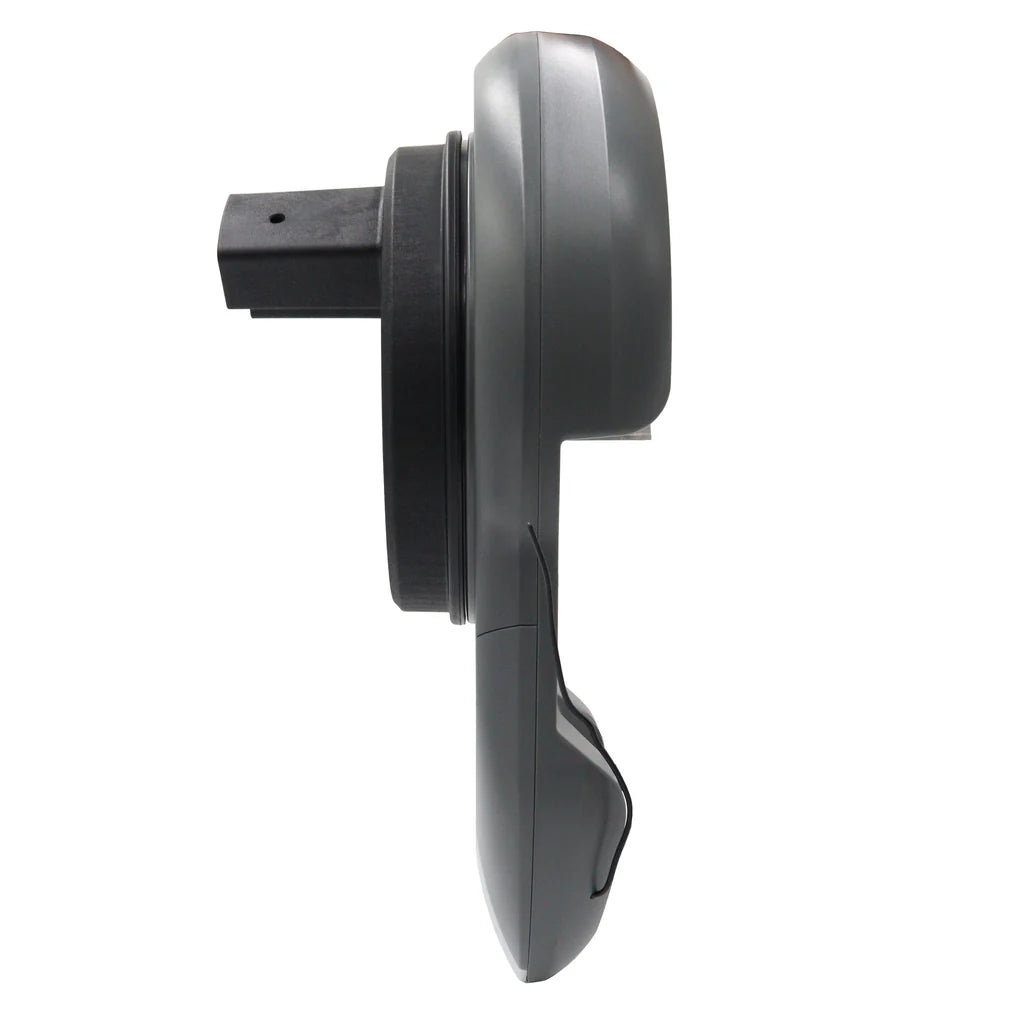

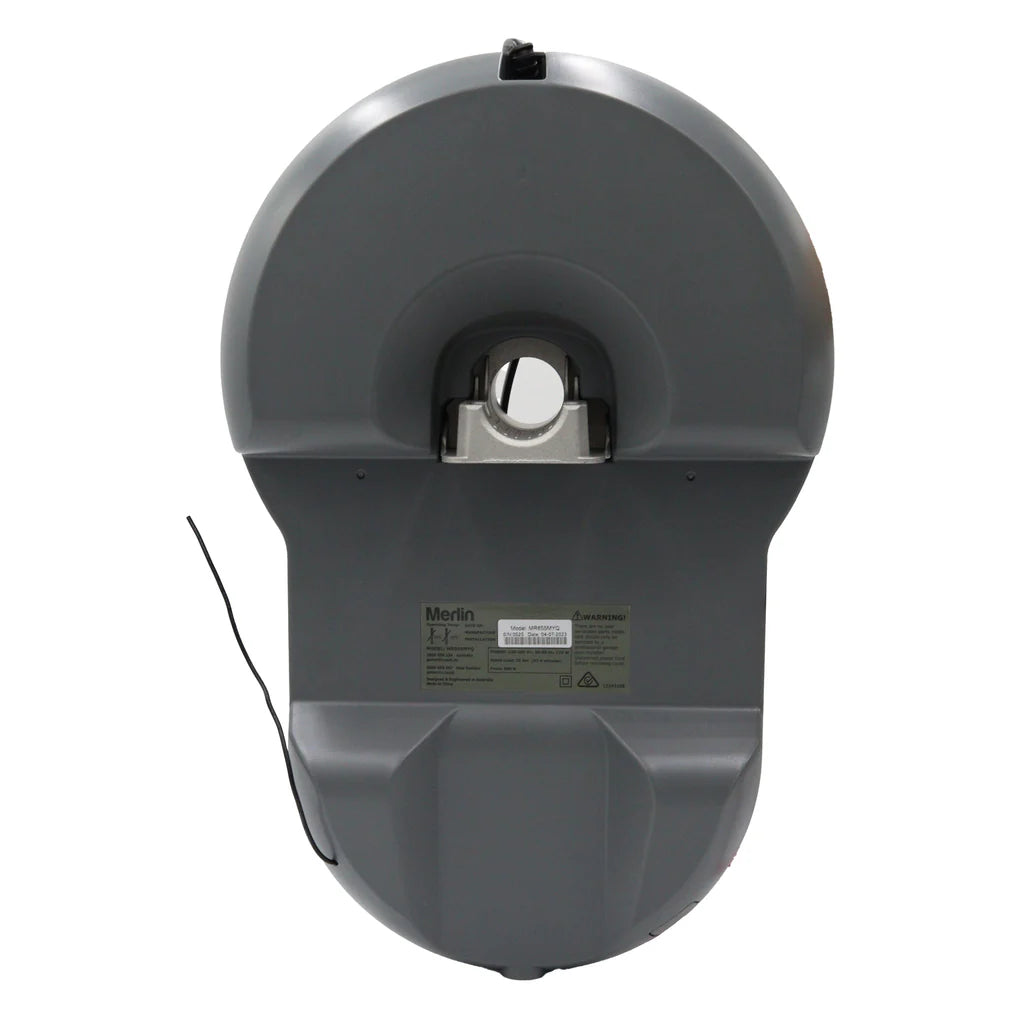

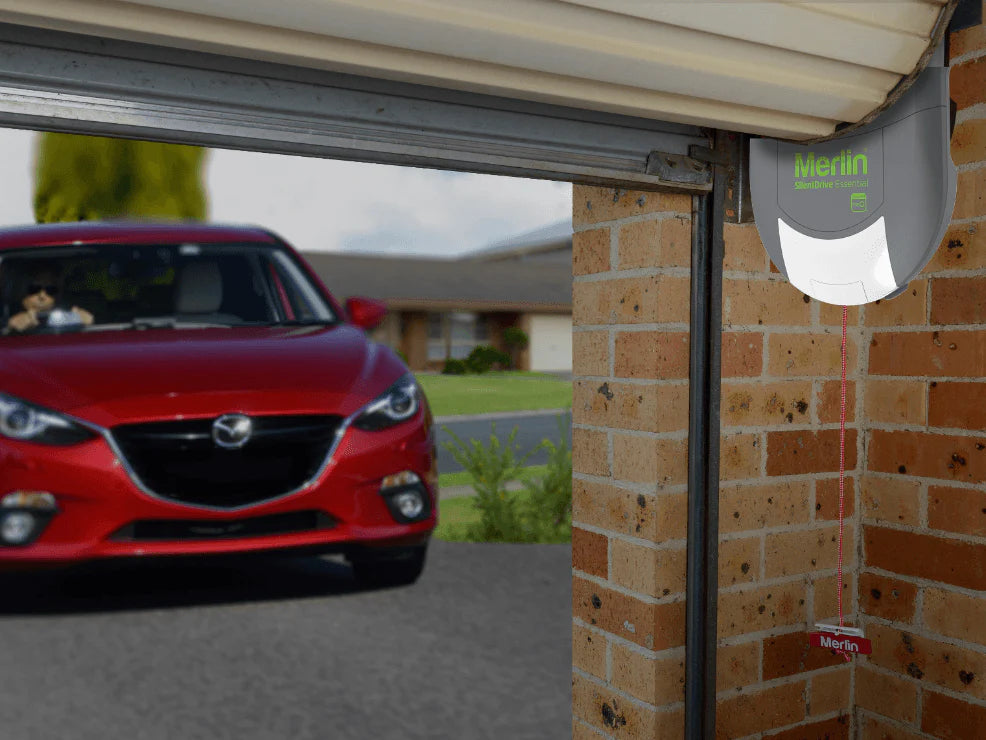

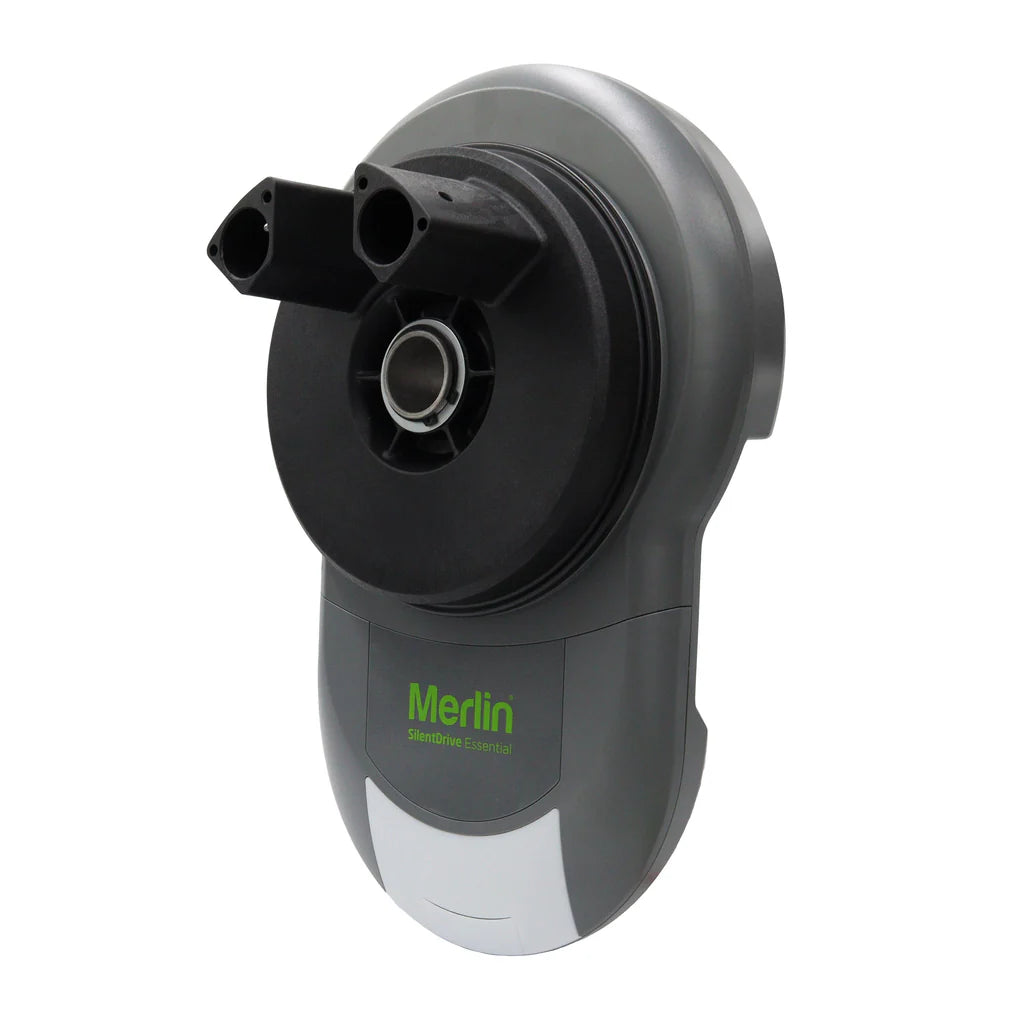

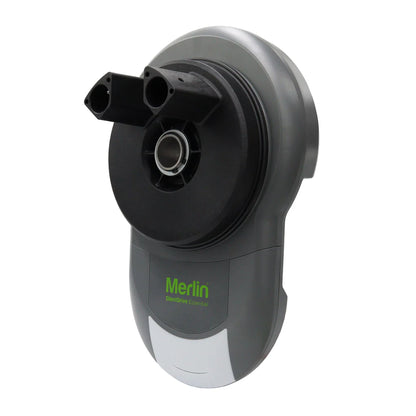

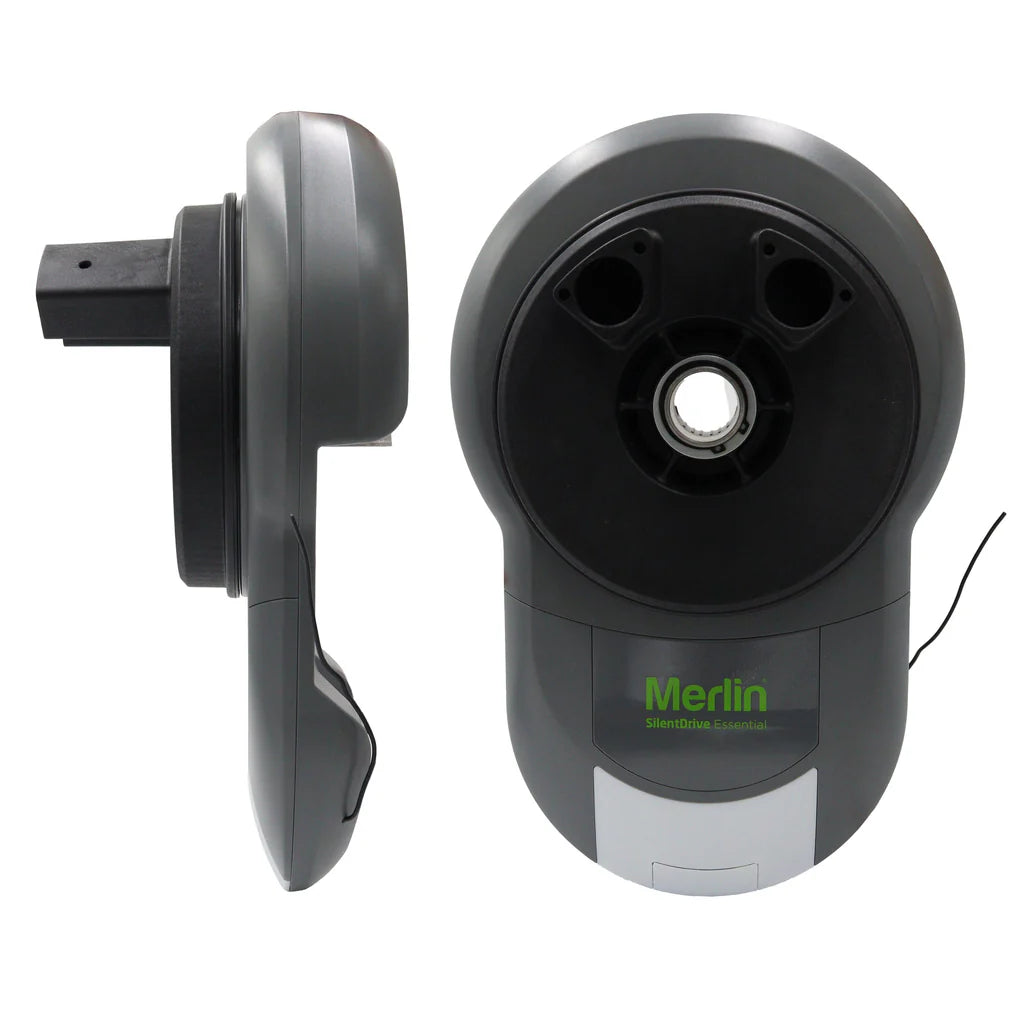

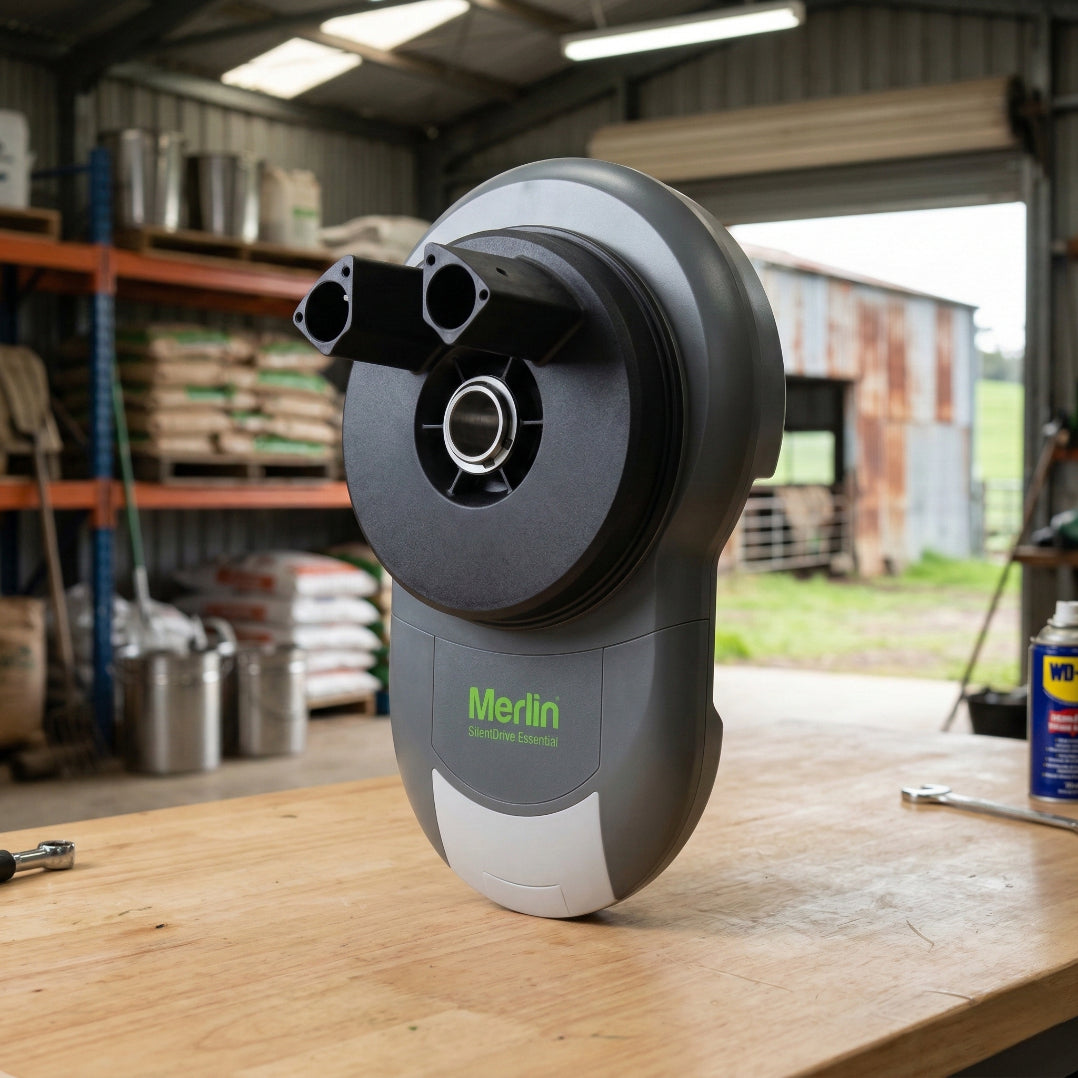

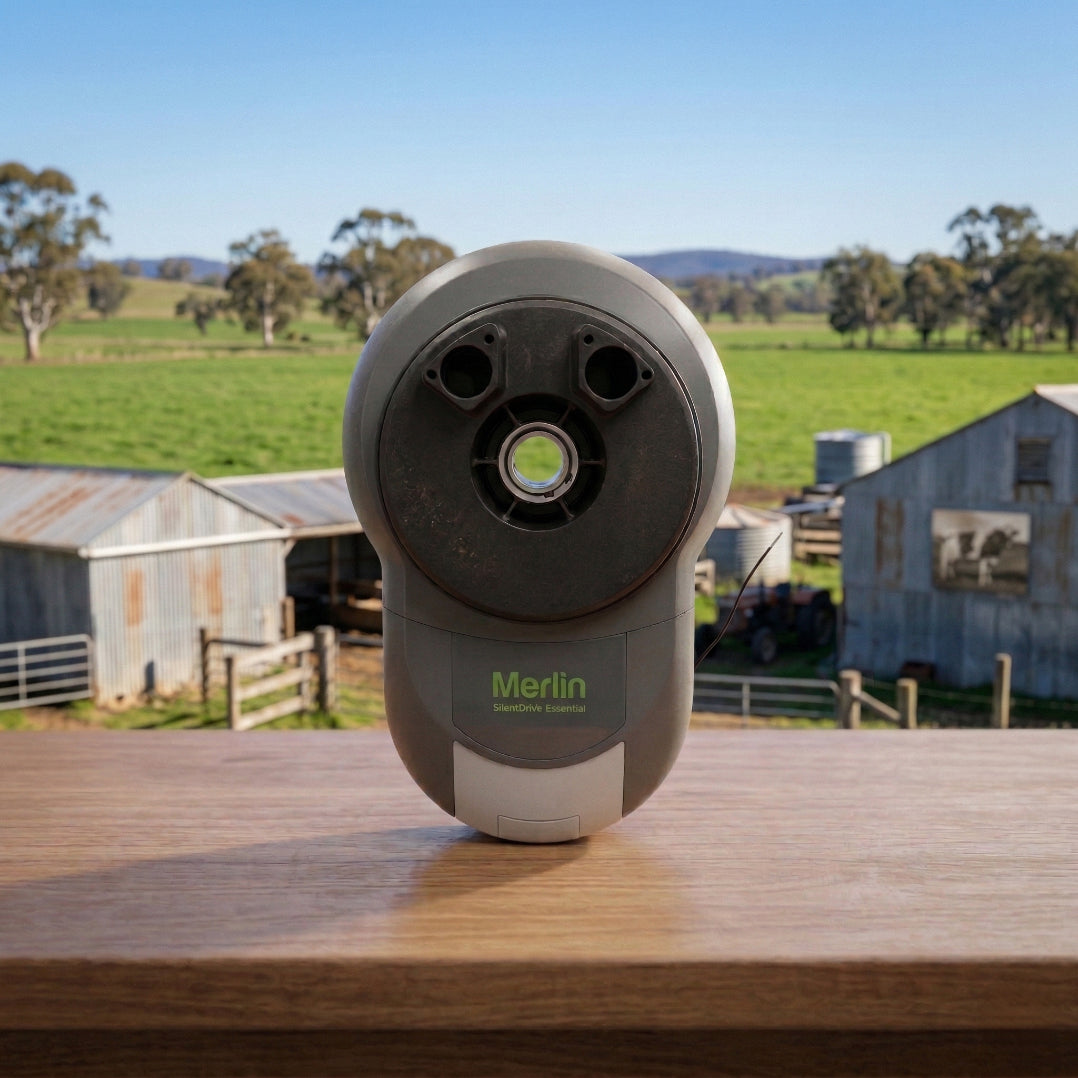

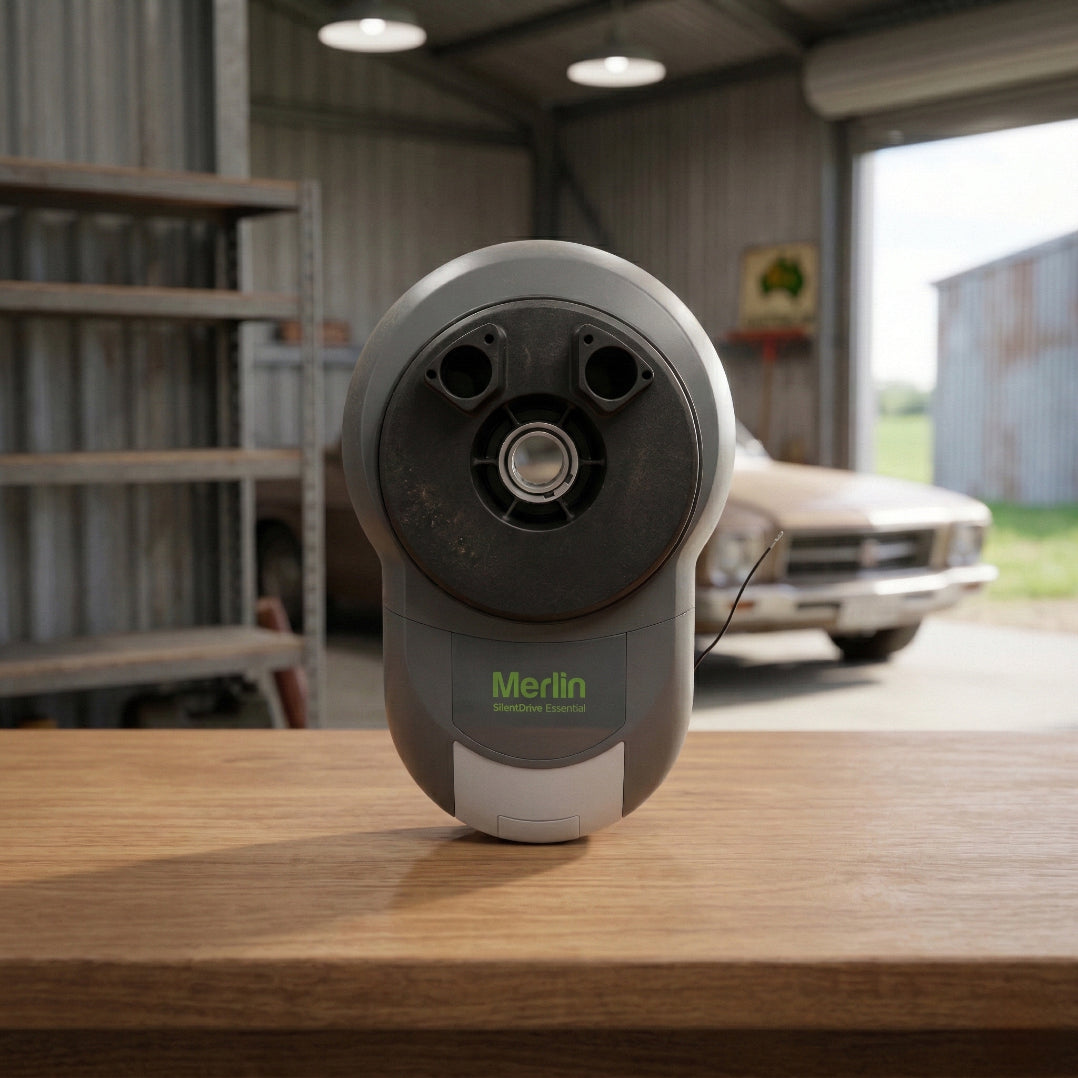

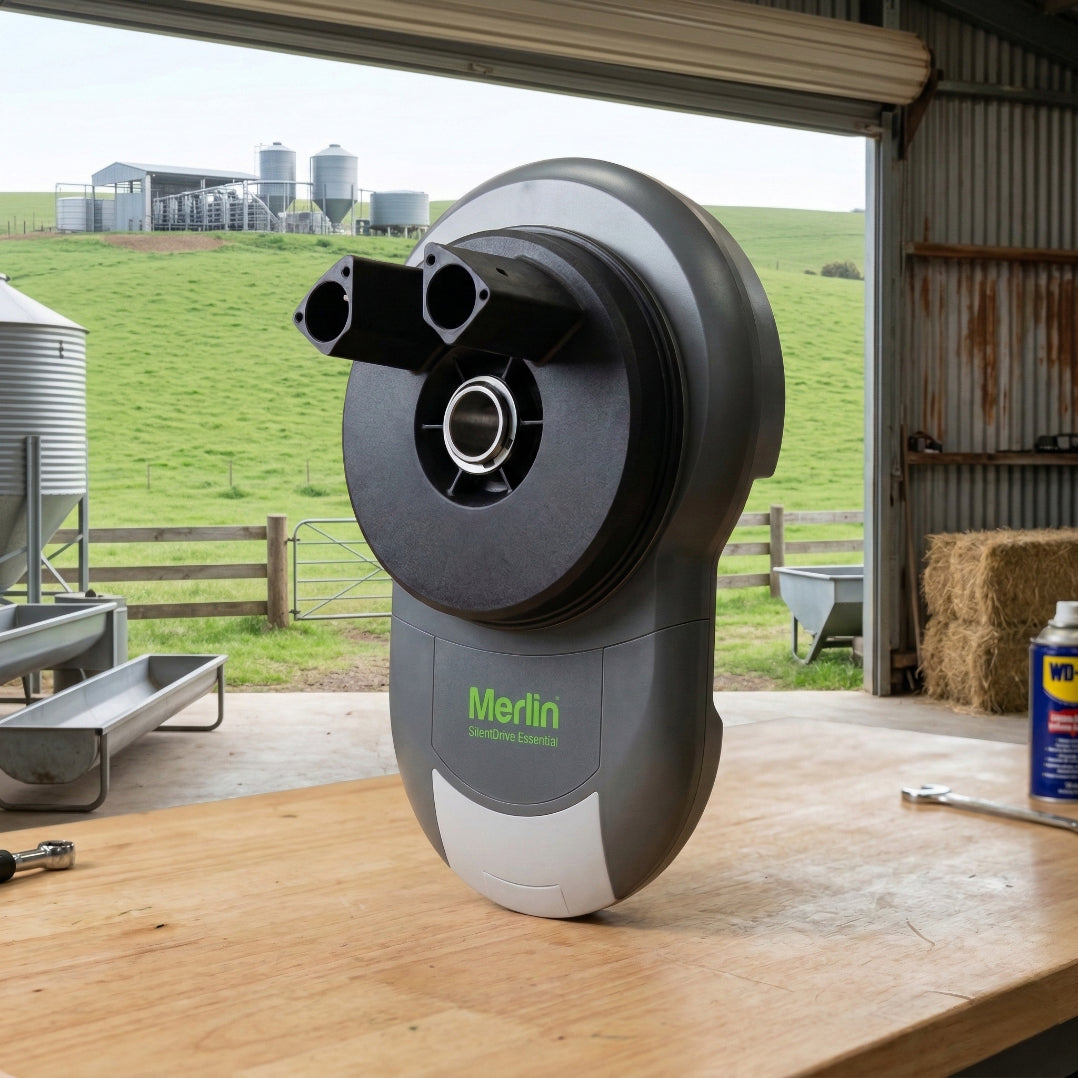

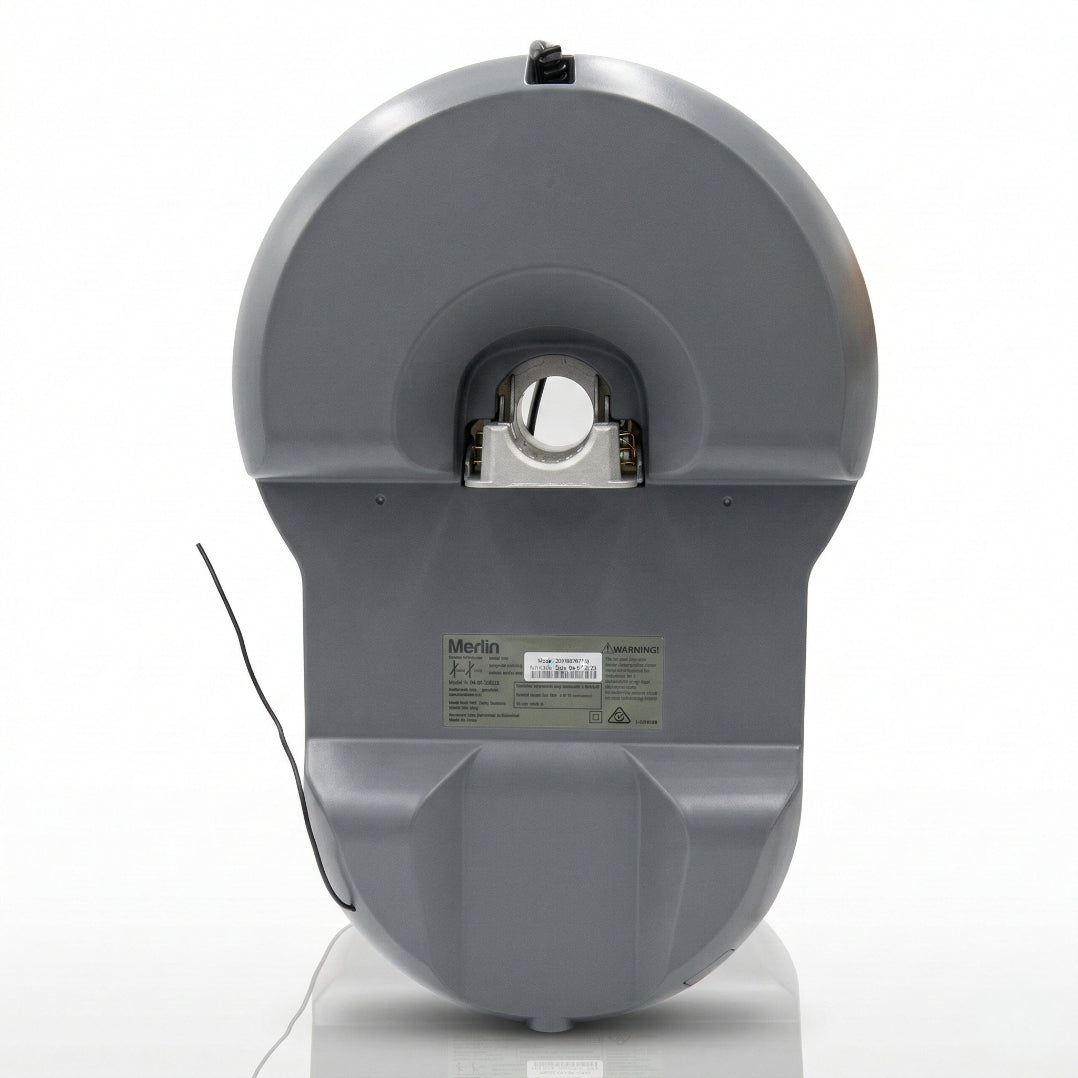

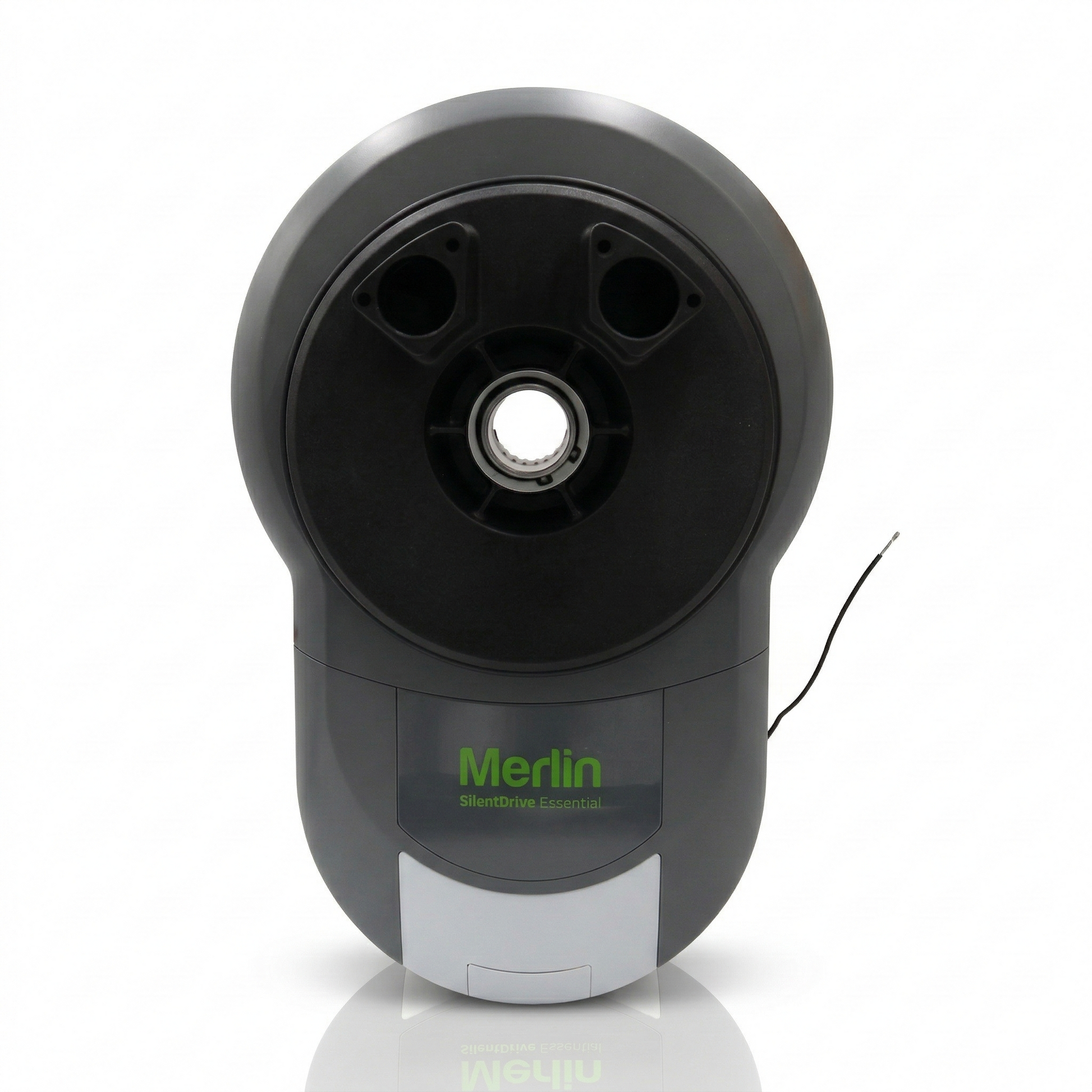

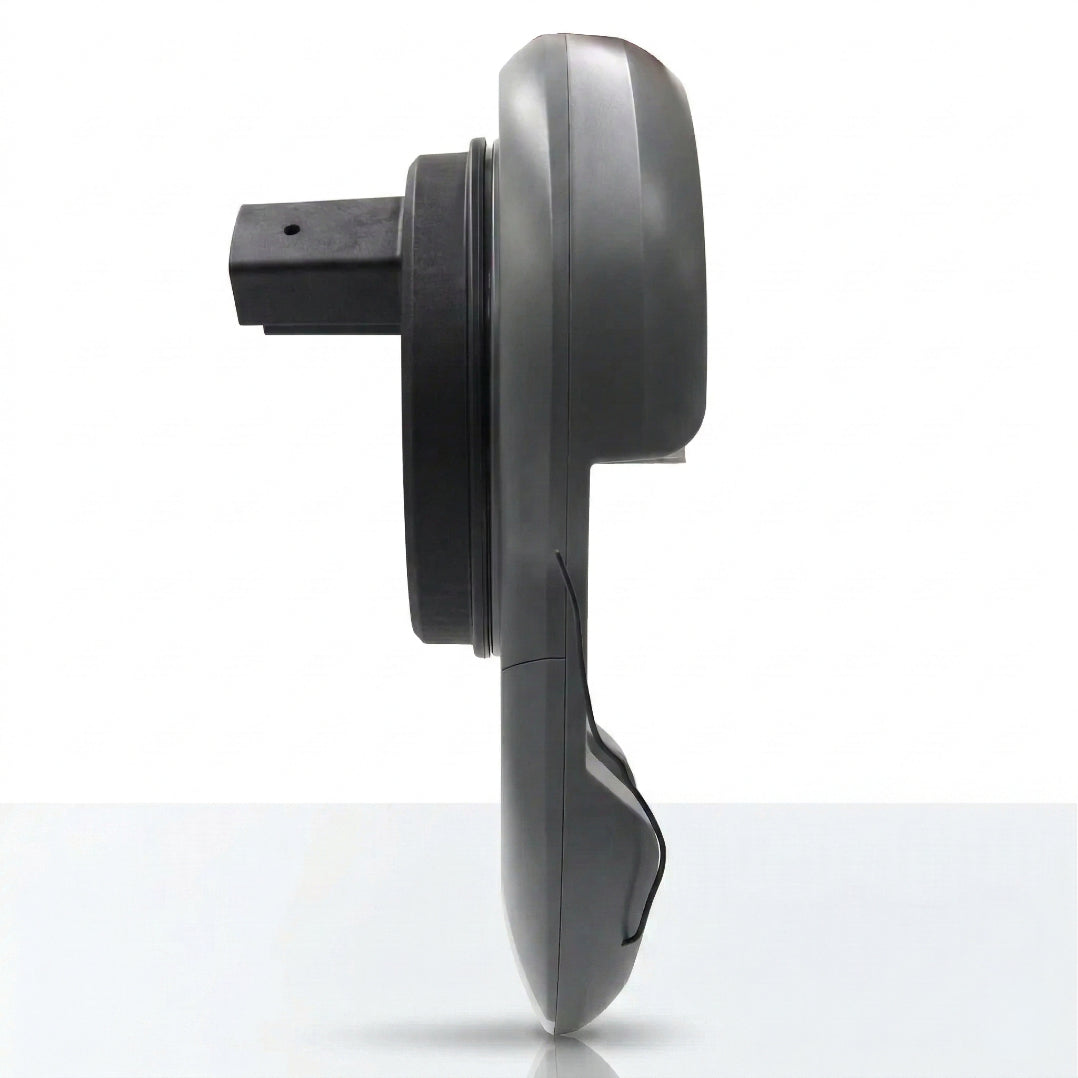

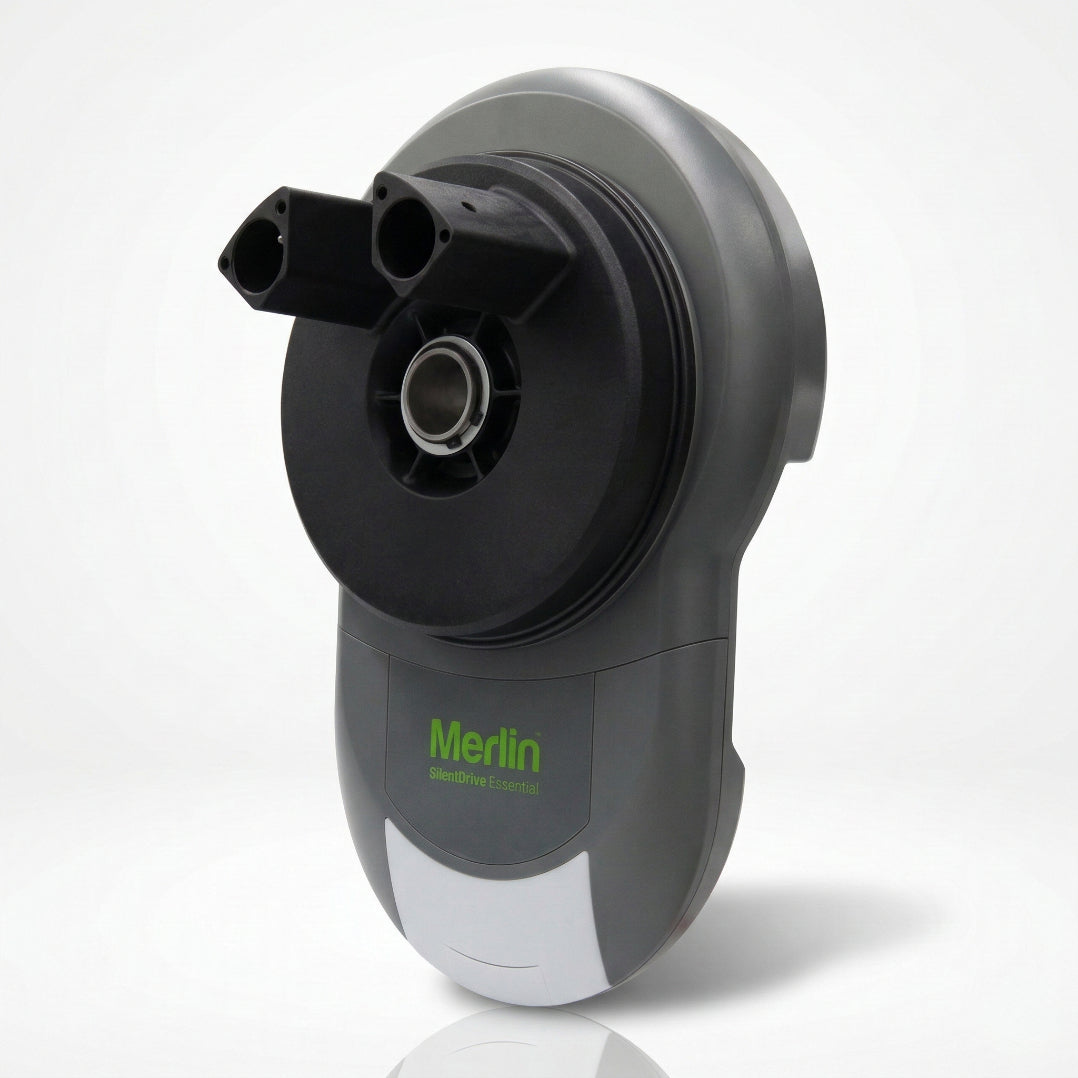

Merlin SilentDrive Essential Roller Garage Motor/Opener (MR655MYQ)

Features:

Easy to install

Quiet and efficient to run

Security +2.0

Bright LED Lights

Premium Automatic Safety Reverse

Automatic Force Sensing

Manual Release

MYQ Compatible

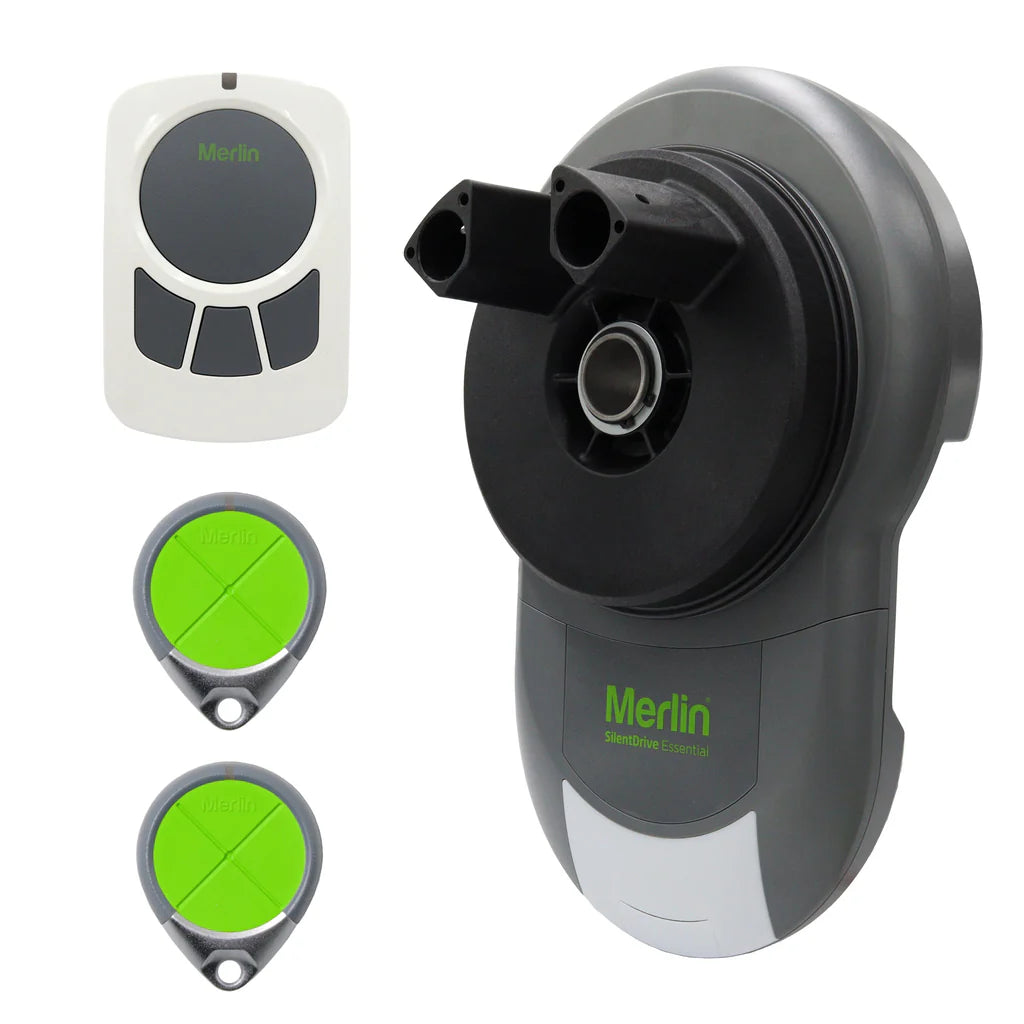

Remotes Included: 2 + 1 Wall Button

Included:

1 x MERLIN MR655MYQ SilentDrive Essential Roller Door Motor

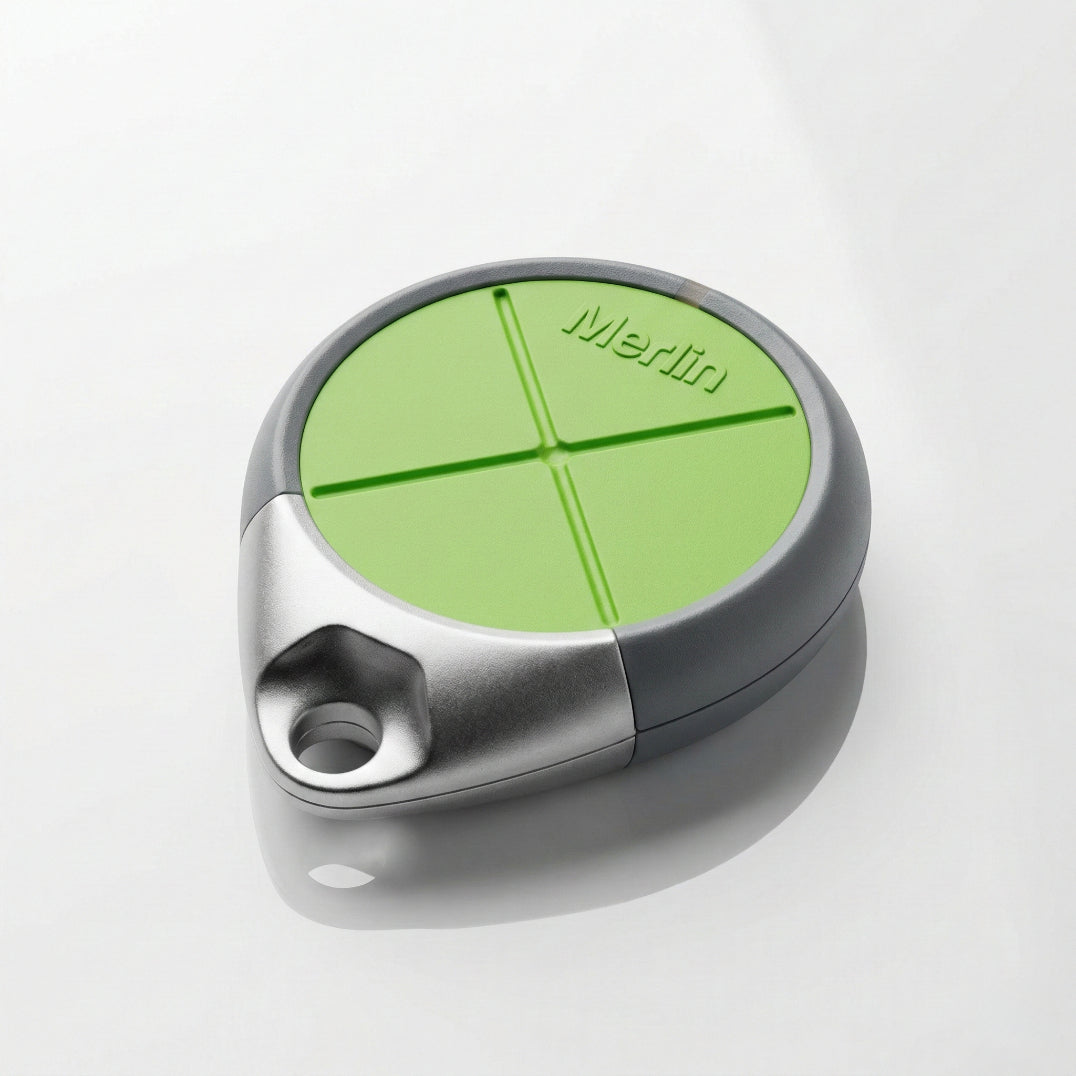

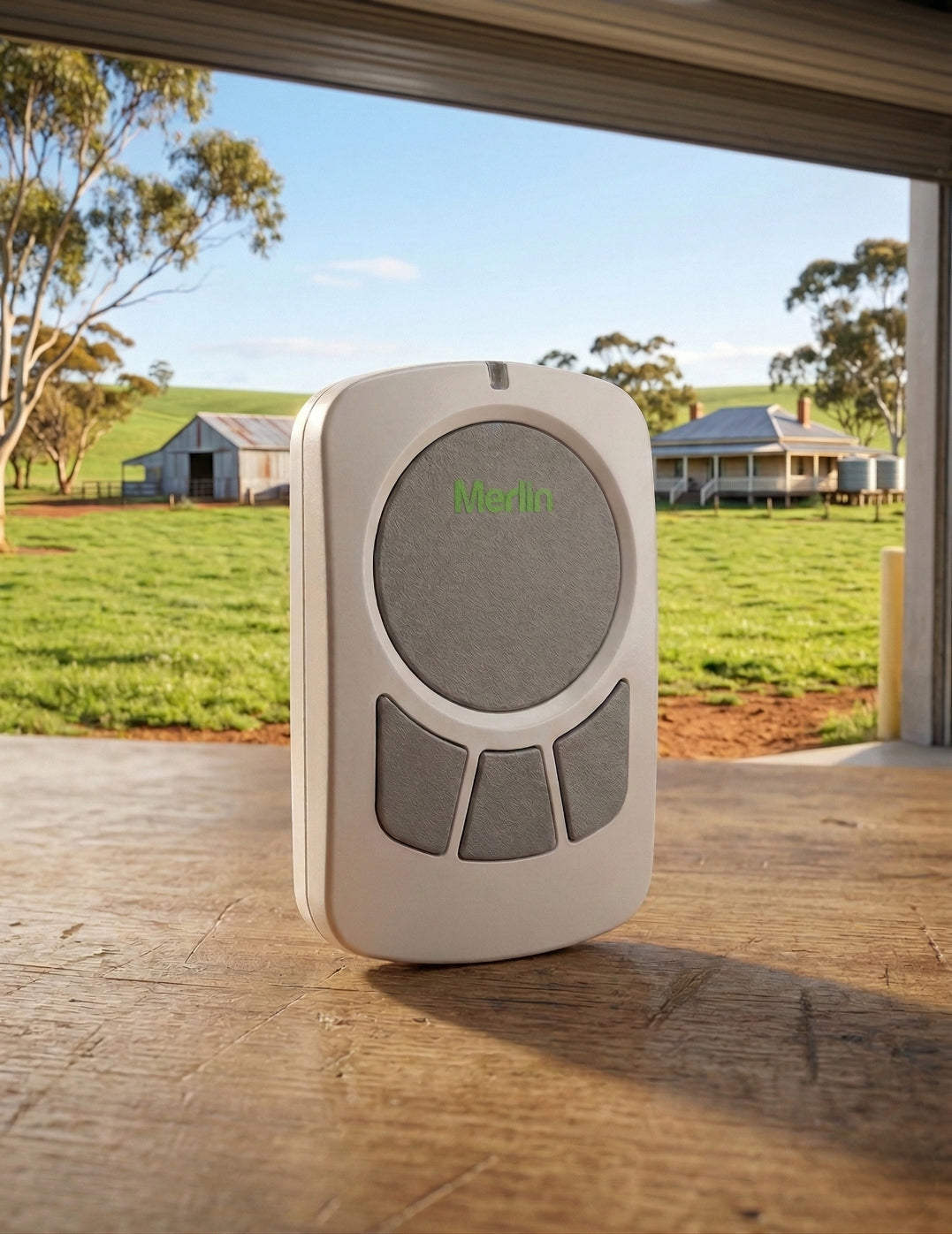

2 x Premium E970M remotes

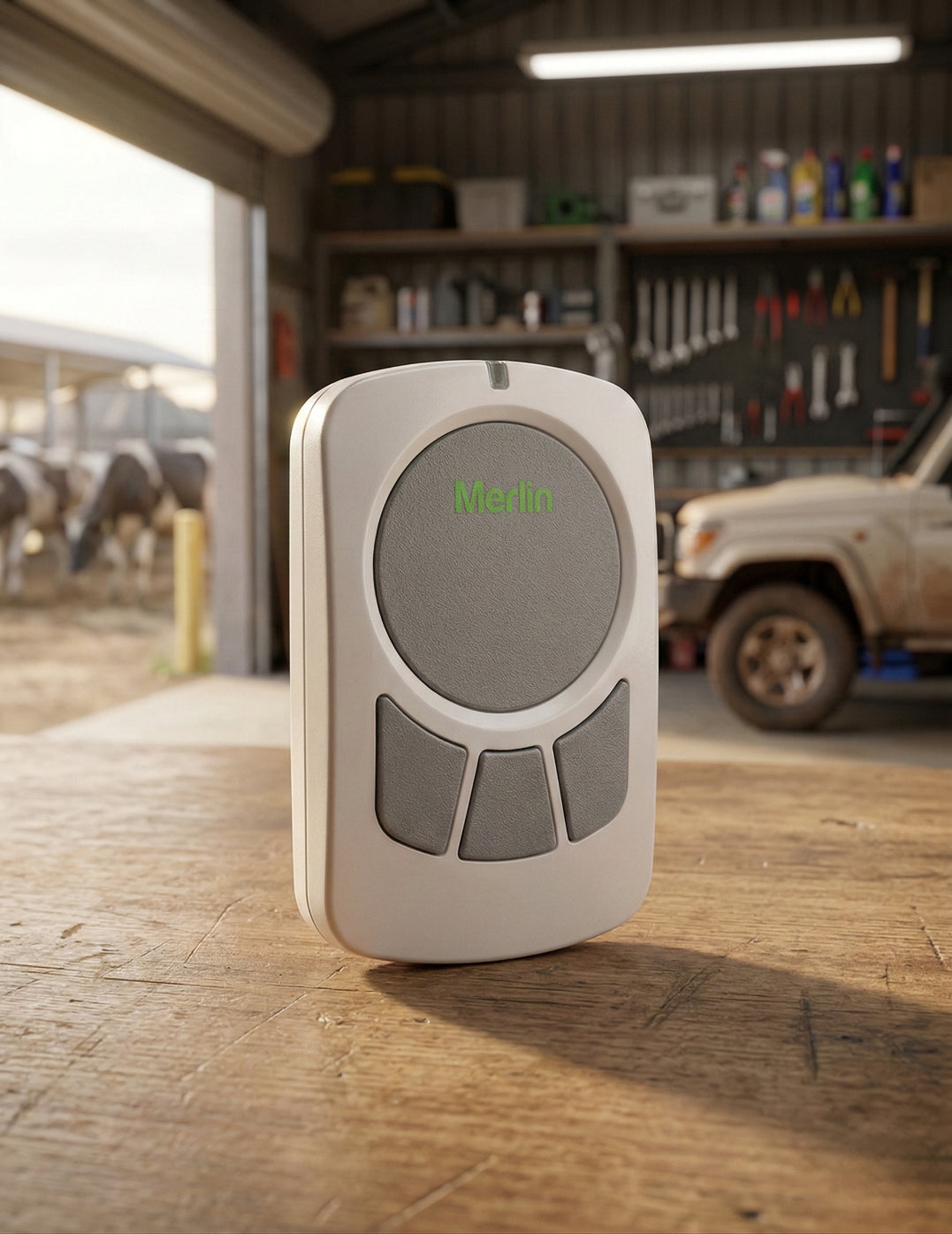

1 x E148M Wireless Wall Button

1 x Weight Bar

1 x Installation Instructions

5 Years Manufacturers Warranty*

Specifications:

General

24 DC motor with thermal overload protection

Input voltage: 240V AC

Rated door area up to 16.5m2

Drum rotations: 4.5

Max Door weight: up to 100kg

Max peak pulling force: 500N

Minimum side room 45mm

433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code
technology

Up to 64 memory registers

Courtesy light: LED

Noise rating: 1M 57DB


Door Specs


Maximum lifting under spring tension = 20kg

Suitable for steel spring balanced doors


Door Opening and Closing Times


Door opening time: 13 seconds

Door closing time: 13 seconds

Based on a 2.4m high door


Door Height


Door height: 4.5m, 3.0m

Door width: 3.6m, 5.4m

Single dwelling


Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 5 year warranty applies.
