Superlift RDO5 Roller Door Motor Two Piece Limited Side Room/Internal

Superlift RDO5 Roller Door Motor Two Piece Limited Side Room/Internal

$399.00
$450.00 $399.00
Shedify Price Sold out
Shipping calculated at checkout.

The RDO5 Roller Door Motor redefines convenience and performance for your roller door. Engineered as a premium two-piece operator, this system combines cutting-edge technology with unmatched durability. The motor unit is seamlessly mounted at the end of your roller door, while the sleek control box can be positioned on the wall or discreetly away using an optional extension cable for maximum flexibility.

Built with reliability and efficiency in mind, the RDO5 is designed to handle doors up to 15m² with whisper-quiet, high-torque operation. Perfect for residential or light commercial use, it’s the ideal solution when minimal space and maximum strength are priorities. Plus, with an impressive 5-year warranty, you’ll enjoy peace of mind knowing you’ve invested in a product built to last.

Key Features:

  • High-Performance Motor: Heavy-duty yet ultra-quiet motor capable of lifting roller doors up to 15m² effortlessly.
  • Enhanced Security: Advanced rolling-code technology prevents unauthorized access, keeping your property secure.
  • User-Friendly Design: Includes 2 stylish alloy hand transmitters for ultimate convenience. These ergonomic remotes are reliable, compact, and easy to use.
  • Manual Override: Features a simple ‘one-pull’ release for disengaging and re-engaging the motor during power outages, so you’re never locked out.
  • Adaptable Control Box: Flexible installation options let you place the control box in the most convenient spot for your space.
  • Modern Courtesy Light: Integrated LED lighting enhances visibility while operating the door, with an auto turn-off after 3 minutes.

Technical Specifications

  • Power Input: 220–240 VAC, 50/60 Hz
  • Motor: 18 VDC
  • Courtesy Light Time: 3 minutes
  • Operating Temperature: -20°C to +40°C
  • Relative Humidity: <90%
  • Open/Close Force: 600 N
  • Reception Frequency: 433.92 MHz
  • Door Limits Travel: 6.5 cycles of door drum wheel
  • Transmitter Power: 12V Battery
  • Lamp: LED, 12V DC

Includes:

  • 1x Roller Motorhead
  • 1x Wall Control Unit
  • 2x Handheld remotes
  • Hardware
View full details

Why we love the

Superlift RDO5 Roller Door Motor Two Piece Limited Side Room/Internal

At Shedify, we’ve spent two decades in the trenches building sheds, and we know that space is luxury. Most roller door motors are bulky "all-in-one" units that require significant side room. We love the Superlift RDO5 because it solves that exact headache.

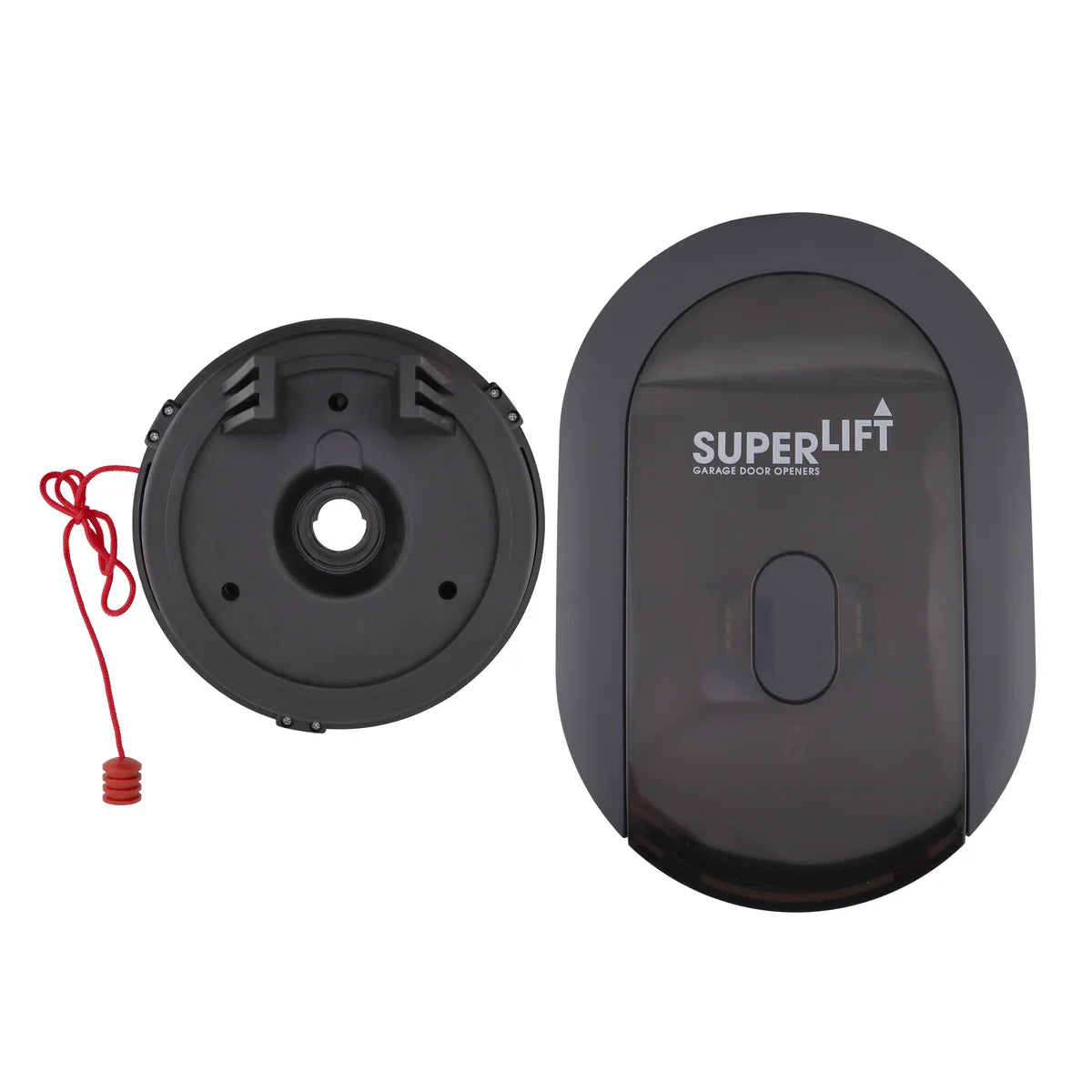

By splitting the motor head from the control box, Superlift has created a "two-piece" system that fits into incredibly tight spaces where others won't. It’s the ultimate "problem-solver" motor—whisper quiet, surprisingly powerful for its compact size, and designed specifically for those tricky installs with limited side-room or internal clearance.

Features and Benefits

Superlift RDO5 Roller Door Motor Two Piece Limited Side Room/Internal

  • The "Space-Saver" Design: The two-piece configuration allows the motor head to sit flush against the drum, requiring as little as 40mm–50mm of side room. If your shed wall is tight against the door, this is your go-to motor.

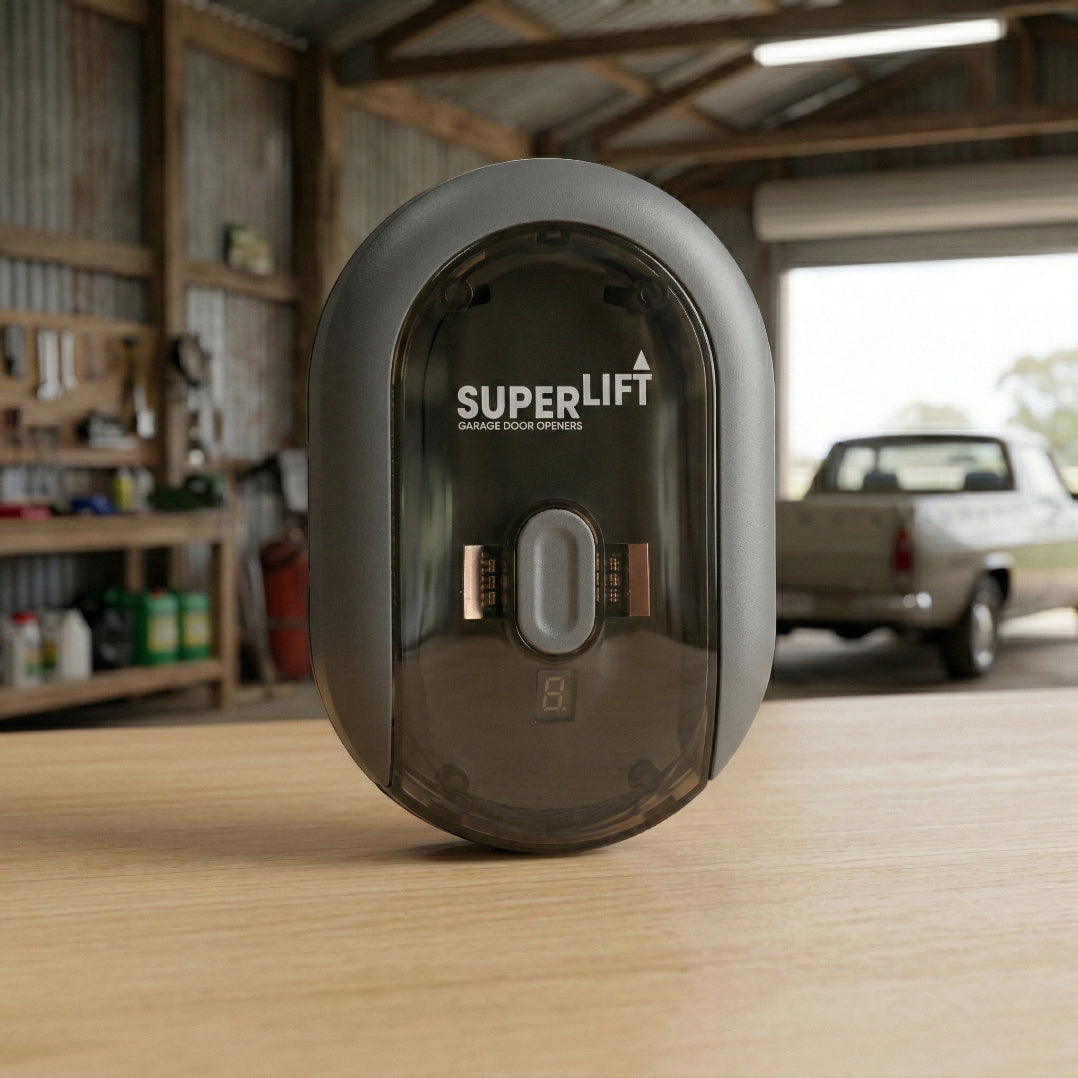

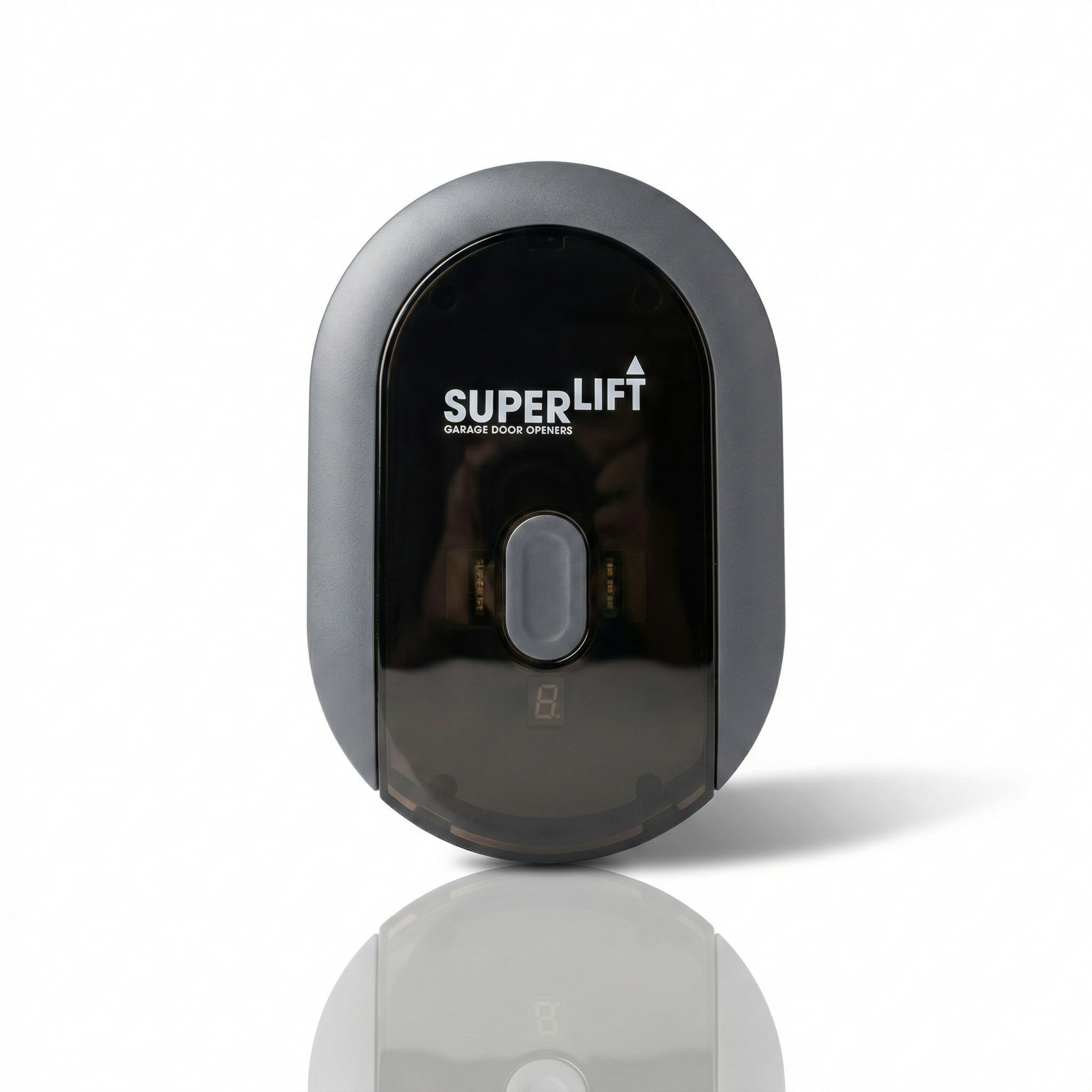

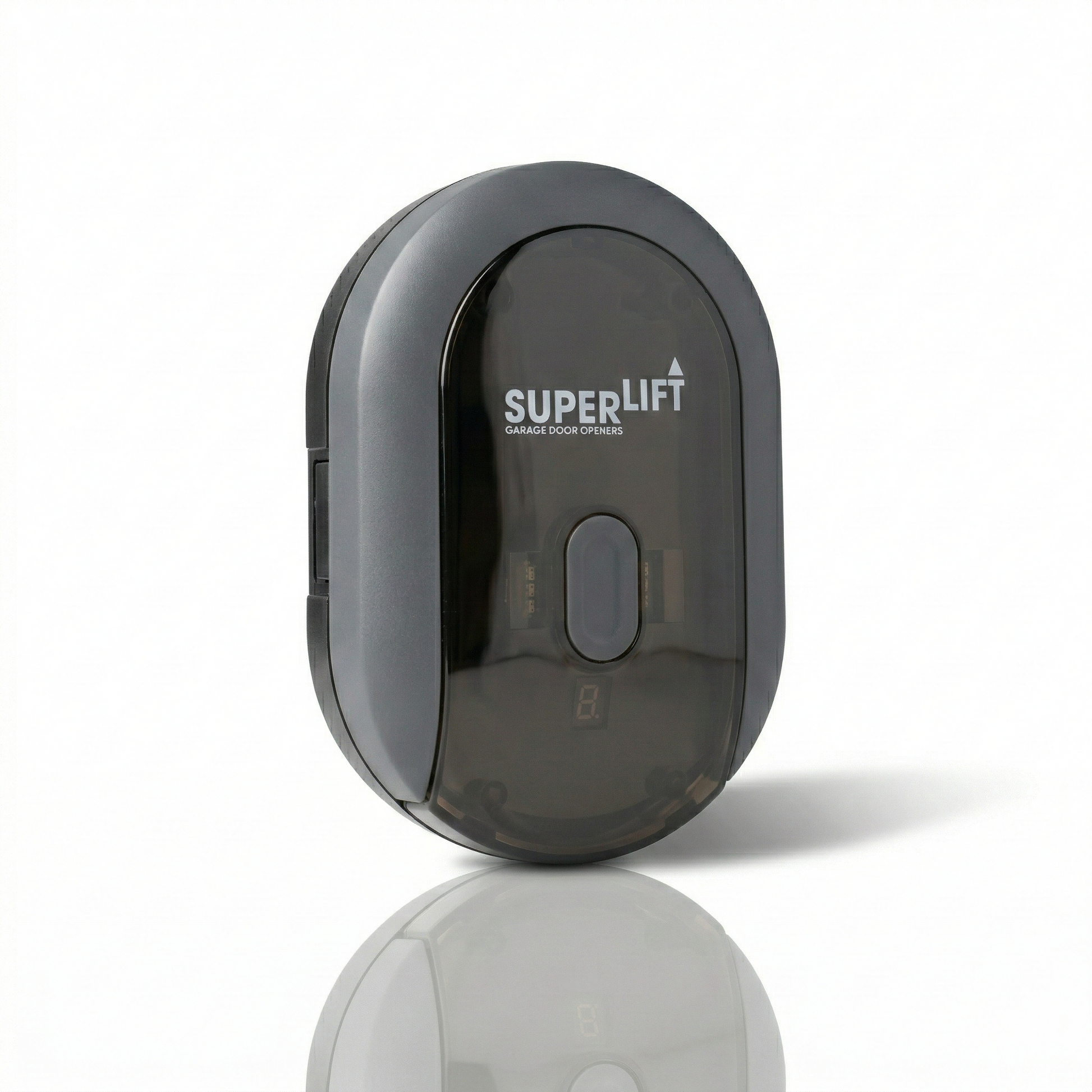

  • Wall-Mounted Control Hub: No more climbing ladders to hit the "Open" button or change settings. The control box mounts at eye level on your wall, featuring a built-in courtesy light and easy-access programming buttons.
  • Whisper-Quiet Operation: Driven by a high-torque DC motor, the RDO5 eliminates the "clatter" of older AC units. It starts and stops softly, which doesn't just sound better—it extends the life of your door's springs and hardware.
  • Smart Safety Sensing: Peace of mind is standard. If the door detects an obstruction—whether it’s a car bumper or a tricycle—it automatically stops and reverses to prevent damage or injury.
  • Manual Override for Emergencies: Power outages happen. The RDO5 features a simple manual release cord so you can switch to hand-operation in seconds and never get locked out of your own shed.
  • Rolling Code Security: Every click of the remote uses a unique encrypted code (from millions of possibilities), making it virtually impossible for "code-grabbers" to duplicate your signal.

Superlift RDO5 Roller Door Motor Two Piece Limited Side Room/Internal

Specifications

Input Voltage: 220–240V AC 50-60Hz

Motor Type: 18V DC High-Torque

Max Door Surface Area: 15m² (covers most double-width residential sheds)

Pulling Force: 600N

Side Room Requirement: Approx. 45mm (Minimal)

Opening Speed: 160mm per second

Remote Frequency: 433.92 MHz with Hopping Code technology

Courtesy Light: Integrated LED (stays on for 3 minutes)

Transmitters: Includes 2x Alloy-reinforced keyring remotes

What customers are saying

  • ★★★★★

    "I had an extremely tight fit in my new shed with only about 50mm of clearance between the track and the wall. Standard motors were out of the question. The RDO5 two-piece setup was the only thing that worked. The wall-mounted button is a huge bonus—no more fumbling for a remote when I'm walking out of the shed."
    — D. Thompson., VIC

  • ★★★★★

    "Swapped out an old noisy chain drive for the Superlift RDO5. The 'Soft Start/Stop' feature is a game changer; it doesn't jerk the door around at all. For a motor this small, it handles my heavy double door with zero struggle. Highly recommend for any shed build."
    — Garry M., NSW

  • ★★★★★

    "I’ve got a tight internal clearance in my garage and spent weeks looking for a motor that didn't require me to move the brackets. The RDO5 was recommended by a mate, and I’m glad I listened. The two-piece design meant the motor head actually fit without hitting the wall, and the separate control box is much easier to use than reaching up to the motor itself. The 'Soft Start' is really smooth—no more clunking every time the door moves."
    — Brendan W., QLD
